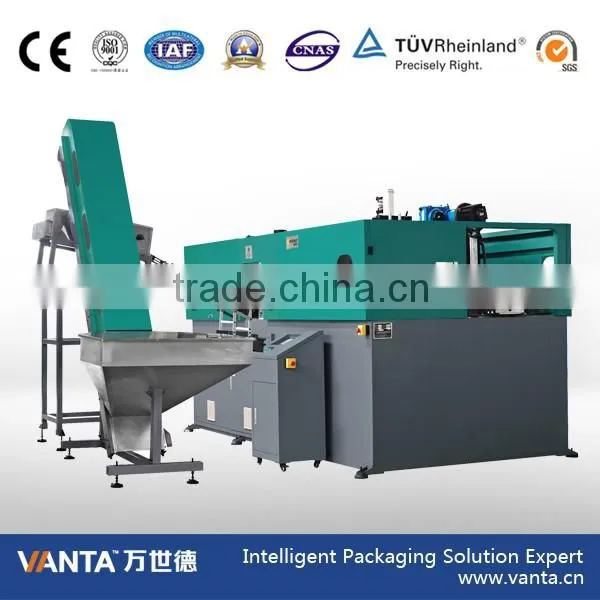

Help CenterLinear PET Blow Molding Machine Bottel Blowing Machine (2cav. Max. 6L, 1200-1500bph)
Related Products
-
Plastic Blow Molding Machine Linear PET Blow Moulding Machine (9 Cav. Max. 600ml, 12500bph)NegotiableMOQ: 1 Set -
Linear PET Bottle Blow Molding Machine (FR-6LE: 6 Cav. Max. 600ml, 8000bph)NegotiableMOQ: 1 Set
-
Linear PET Bottle Blowing Machine (6 Cav. Max. 600ml, 9000 Bph)NegotiableMOQ: 1 Set
-
Bottle Blow Molding Machine High-Speed Pet Bottle Making Machines Stretch Molder (24XS)NegotiableMOQ: 1 Set
-
Pet Blow Molding Machine Full Servo Electromotion Bottle Blowing Machine (20XS)NegotiableMOQ: 1 Set
1. Features:
1.1 Smooth feeding system is ensured by multi-protected fittings
1.2 Continuous feeding system
1.3 Linear structure transmits the preform to heating and bottle forming part
1.4 All-electric structure insures high speed and rigid orientation
1.5 Modular design facilitates maintenance
1.6 Save investment and increase competition.
1.7 Upgrade power efficiency
1.8 Simplify operation by MMI control panel
1.9 Save space and improve productivity
1.10 Owns gas recovery equipment
1.11 Output per unit time increases by 30-35%
1.12 Power consumption reduces 16.5kw/hr, air consumption decreases by 20-25%
1.13 Low consumption, low maintenance, low abrasion, low pollution

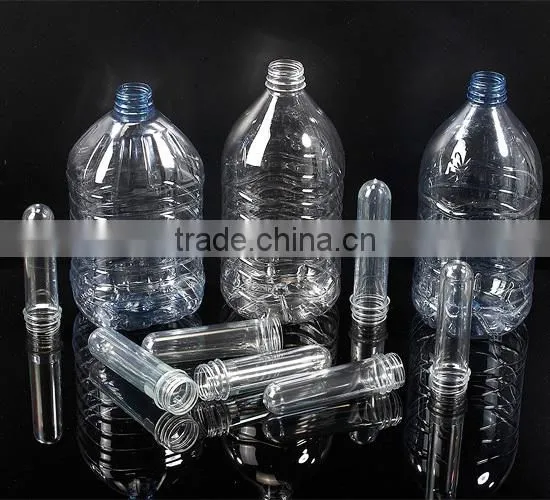

2. The FR series can produce:
Oval, Square, Flat, Round bottles
Small Jars and Small Wide-Mouth containers
3. Market Share of the FR series:
- 1. Mineral water, Soda drinks and Juices
- 2. Sport bottles
- 3. Alcoholic drinks
- 4. Edible oil
- 5. CSD
- 6. Pickle foods
- 7. Cosmetics, lotions
- 8. Detergents, cleaning solutions
4. Details of FR-2BLE:
|
Model |
Unit |
FR-9E |
Molding |
Clamping force |
kgf |
30000 |
Clamping stroke |
mm |
220 |
|
Stretching stroke |
mm |
450 |
|
Cavity pitch |
mm |
225 |
|
Cavity number |
|
2 |
|
Container |
Max. Container volume |
ltr |
6 |
Neck diameter range |
mm |
50 |
|
Max. container diameter |
mm |
195 |
|
Max. container height |
mm |
355 |
|
Carriage unit |
pcs |
52 |
|
|
Theoretical output |
bph |
1200-1500 |
Electrical system |
Total power |
KW |
46 |
Heating power |
KW |
42 |
|
Air system |
Operating pressure |
kgf/cm2 |
7 |
Air consuming |
ltr/min |
1400 |
|
Blowing pressure |
kgf/cm2 |
35 |
|
Air consuming |
ltr/min |
4500 |
|
Chilled water |
Operating pressure |
kgf/cm2 |
2-4 |
temperature |
℃ |
10-12 |
|
consuming |
kcal/hr |
5400 |
|
Flow rate |
ltr/min |
30 |
|
Temp. Controller |
Operating pressure |
kgf/cm2 |
|
Temperature |
℃ |
|
|
Consuming |
kcal/hr |
|
|
Flow rate |
ltr/min |
|
|
|
Operating pressure |
kgf/cm2 |
5-6 |
Cooling water |
Temperature |
℃ |
25 |
Consuming |
kcal/hr |
30000 |
|
Flow rate |
ltr/min |
100 |
|
Machine |
Size(L×W×H) |
mm |
2400×2100×2500 |
Weight |
T |
4 |
