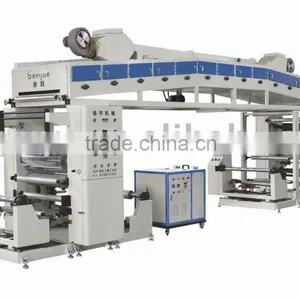

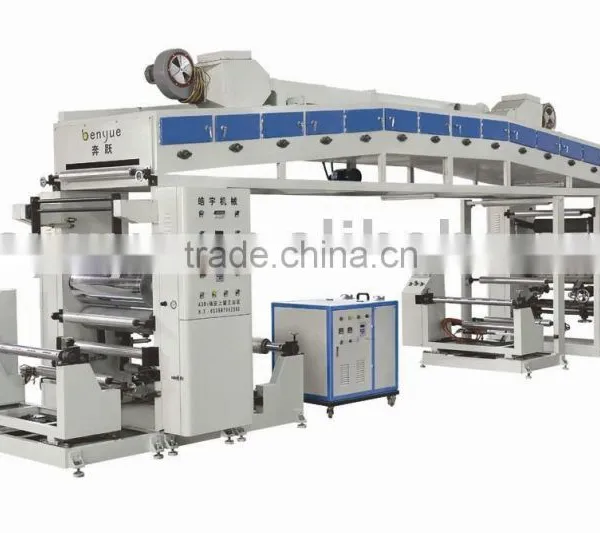

TF-E hot melt coating,dry laminating machine/aluminium foil hot stamping machine
USAGE:

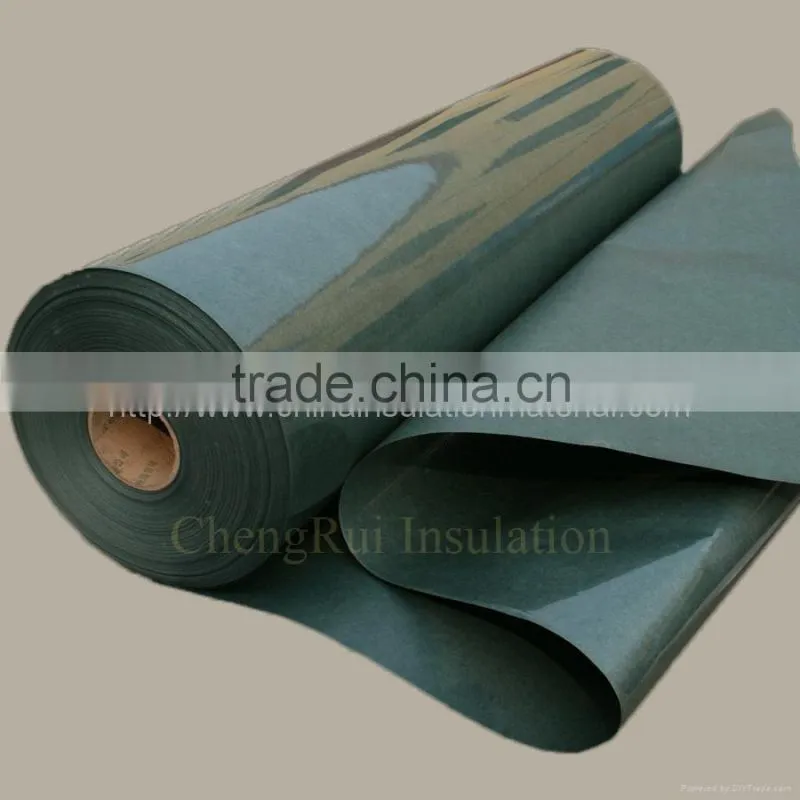

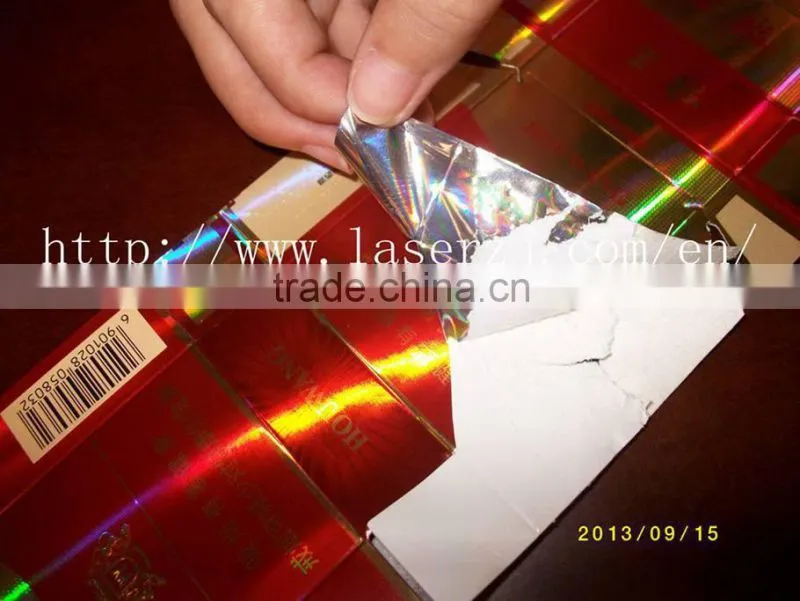

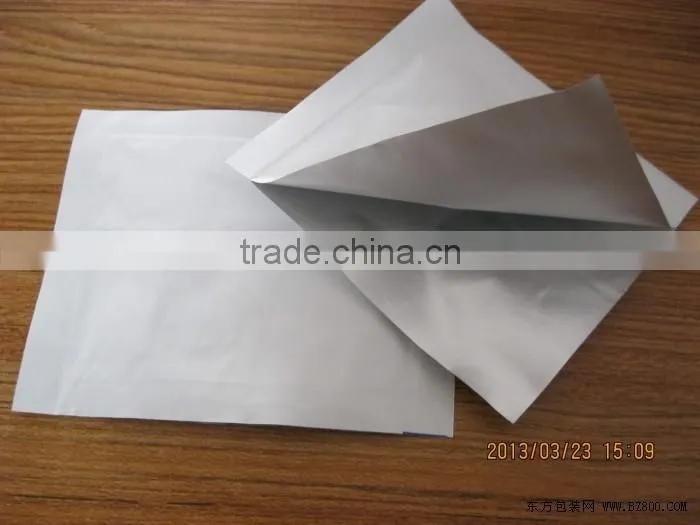

The machine is produced with international advanced coating technology integrated with our many years of experiences in manufacturing coating machine, it is suitable for manufacturing sticker, pearl film, adhesive tape ,OPP,PET,craft paper, aluminum film, hot stamping film,laser film, transfer film, gold and silver paperboard which need coating and laminating.
SPECIFICATION:
Material width: 820mm
Width and diameter of roller: φ80mm×850mm
Working speed: 1080m/min
Max machine speed: 100m/min
Max diameter of rewind and unwind roller: φ680mm
Total Power: 48kw
Overall size(L×W×H): 8m×2.3m×2.3m
Total weight: about 6ton
FUNCTION ANH CHARACTE:
1.It is provided with stepless regulation cylinder of American Emerson frequency converter realizing synchronous speed regulation of drawing roller with anilox roller.
2.It is provided with anilox roller plus blade for coating mode, and also provided with many selection opportunities of anilox roller with various coating amount
3.There is applied with moveable blade device
4.It is provided with separate multi-section type constant temperature drying system using semiconductor tube plus heating wind, as well as adjustable interior circulation air device ,it is advantageous in strong wind exit and wind entrance helping drying thoroughly
5.Guiding roller in oven will synchronously rotates with main shaft, equipped with opened oven and trans-membrance controller.
6.pneumatic operated valve controlling is adopted for anilox roller and drawing roller.
7.Automatic meter measuring devices
8.Key mode air shaft is used for unwinding and rewinding shafts, easy to load and unload
9.Comma blade type and adopt pneumatic
10.The whole machine adopts automatic tension controller
REQUIREMENT:
Manufacture machinery can according to request of the customers (width available 300-2000mm)
Heating method: Electricity heating, oil furnace heating,steam heating
Coating method:comma doctor blade coating,double rollers coating,veins rollers coating.

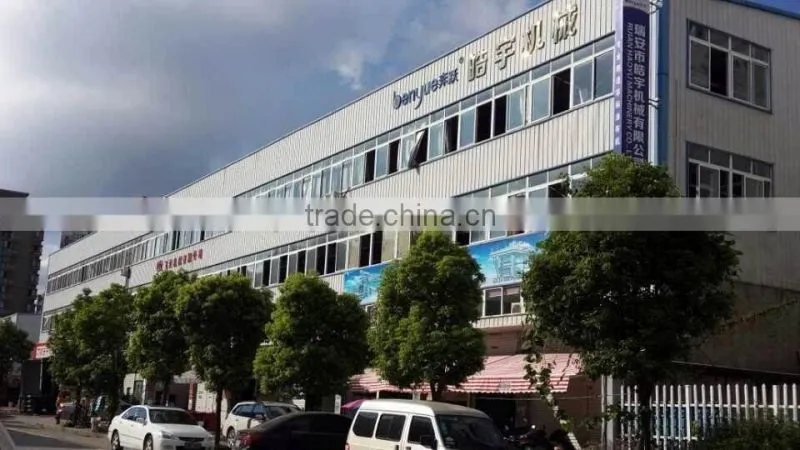

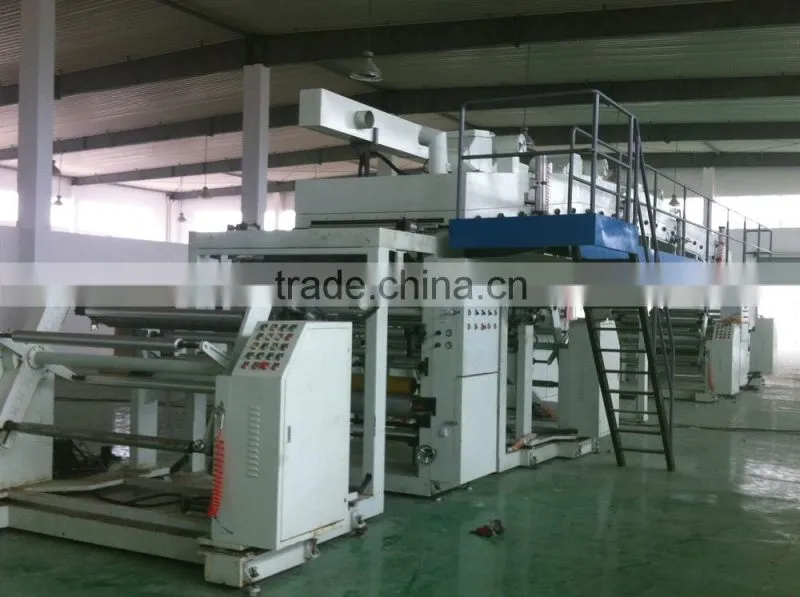

our factory
