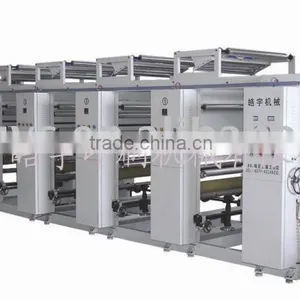

Help CenterYA-1000 6 Group 4 Color Printing Machine
Related Products
-
YS-PC Series Gravure Printing MachineNegotiableMOQ: 1 -
YS-GH Computerized Gavure Coating MachineUS$ 30,000 - 200,000MOQ: 1 Set
-
YS-ZD Rotogravure Printing MachineUS$ 30,000 - 200,000MOQ: 1 Set
-
YS-ZN Rotogravure Printing MachineNegotiableMOQ: 1
-
YAD-C 1050 Computerized Printing Machine/adhesive Tape Automatic MachineUS$ 30,000 - 200,000MOQ: 1 Set
Specifications
Printing color and back-printing can be adjusted according to specification.MAIN PARAMETERS:
TypeYA-1000Type
Printing width1000mm
Printing color group1-4color
Roller specificationφ100-φ300mm
Print speed10-50m/min
Machinery speed70m/min
Printing precisionLongitudinal:±0.20mm,Landscape orientation:±0.20mm
Color distance1400mm
Total power60kw
Total weightabout 10T
Overall size9000×2300×2500mm
FUNCTION AND CHARACTERISTICS
1. Main drive system, speed control motor, speed control speed.
2. Combined use, a single continuous two-sided multicolor printing.
3. Recoiler double-torque motor, and discharge using magnetic brake.
4. Mexican ink used automatic pump cycle-Expansion of handling axis.
5. Drying System dual-drying Road, enclosed from top to bottom using axial flow fan, hot
temperature and the wind cooling of each 50 m / min drying oven temperature regulation automatic temperature control, a function meters.
6. Blade can be arbitrary regulation, pressure roller pressure of the implementation of a pneumatic, pneumatic arbitrary regulation, and Mexico was the use of machinery manual lifting.
7. High accuracy gear transmission box, adopting patented technique
8. Separated Rewinding & unwinding double work station, non-stop carrying material
REQUIREMENT:
1.Printing color and back-printing can be adjusted according to specification.
