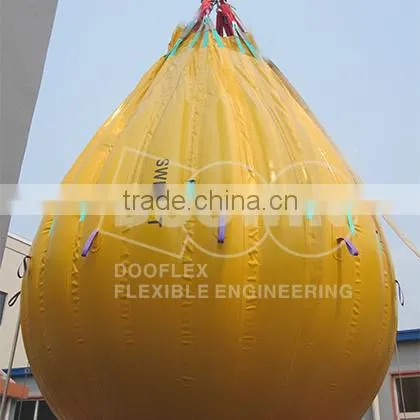

35T Water Weight Bags For Crane Load Test
35T water weight bags description:
DOOWIN is a specialist manufacturer and provider of proof load testing, load measuring equipment and services for lifting equipment and is active in the Oil & Gas, marine and shipping, construction, power generation and defence industries. Our proof load bags are a unique and simple product specially designed to provide the safest and most cost effective method of load testing.
DooFlex design and make the water weight bags the need for the simple proof load test method instead of traditional solid test mothod of use load weight. We provides a comprehensive range of water filled proof load bags from 1 te to 50 te and by combining capacities and specially designed beams means that very large load tests can be achieved. All water weight bags
have a physically proven factor of safety in excess of 6:1.
DooFlex water weight bag is designed for the proof load test for the lifting equipment and structures that reque water weight bags when it's newly finished, or periodic check or maintenance, such as cranes, beams, davits, and so on in marine, offshore, workshop, port, vessels, and other industry sector. This proof load water bags provide one kind innovative testing solution with the advantages of Safety, Economy, Convenience, High Efficiency.
DooFlex water weight bags are made from heavy duty fabrics, equipped with all necessary fill/drain hose and valves, Master Links, load shackles and rigging, lifting belts, and incorporating with some innovative design. Water pumps, water meters, manifolds, load cell and its shackles, rigging hardware, lifting beams also can be supplied upon request
35T water weight bags specification:
| Model | Load Test Weight (kg) | Diameter (m) | Height (m) |
| PLB-35 | 35,000 | 4.3 | 7.3 |
35T water weight bags accessories:
Item |
Quantity(35T) |
Note |
Water Weight Bags |
1 pc |
PLB-35t |
Master Link |
1 set |
SWL40, 6:1 |
Filling Hose Φ60mm |
2 rolls |
20m/roll |
Discharge Hose Φ100mm |
2 rolls |
20m/roll |
Big Bow Shackles |
8 pcs |
SWL12.5T |
50mm to 65mm Adapter |
1 set |
/ |
Roung Sling |
8 pcs |
MWL9T |
Water weight bag technology and material advantage:
35T water weight bags structure:
Several water weight bags can be used for one load test.
35T water weight bags package:
Water weight bags certificate:
