Help Center20t Crane Test Water Bags
Related Products
Product Description
Crane Test Water Bags is designed for the proof load testing for the lifting equipments and structures, such as cranes, beams, davits, winches, hoists, drilling derricks, bridge, platforms, walkways. Crane load test water weight weight bags provide one kind innovative load testing weight way.
DooFlex crane load testing water weight bags meet the need for the simple proof load testing method instead of traditional solid test weight mothod of use load weight.
DooFlex Crane Test Water Bags consisted with test weight bags, equipped with fill/drain hoses, Master Links, load shackles and riggings, lifting belts, and incorporating with some innovative design. Water pumps, water meters, manifolds, load cell and its shackles, rigging hardware, lifting beams can be supplied upon request.
Features and Advantages of Crane Test Water Bags:
- Made from heavy duty PVC coated fabrics
- Heavy duty webbing harness
- Easy to operate
- Complete with all accessories
- 6:1 safety factor
- Multi sizes for unlimited variants of load test weight
- Delivery ready for use
- BV third Party Certificate
- Crane load test water weight bags manufactured and tested comply with LEEA 051
All these features with the competitive price make DooFlex Crane Test Water weight bags as the first choice.
Specification of Crane Test Water Bags
| Model | Load Test Weight (kg) | Diameter (m) | Height (m) |
| PLB-20 | 20,000 | 3.5 | 6.2 |
Main Accessories of PLB-20t crane load test water weight bags system.
The standard crane test water bags system include all the necessary test accessories. Ready for use. Our supply also include the repair kits, material for your quick repair.
| Item | Quantity(20T) | Note |
| Water Weight Bags | 1 pc | PLB-20t |
| Master Link (6:1) | 1 set | SWL40 |
| Filling Hose Φ60mm | 2 rolls | 20m/roll |
| Discharge Hose Φ100mm | 2 rolls | 20m/roll |
| Big Bow Shackles | 8 pcs | SWL12.5T |
| 50mm to 65mm Adapter | 1 set | / |
| Roung Sling | 8 pcs | MWL9T |
DOOWIN is China leading professional manufacturer of proof load crane load test water bags. The production is controlled under ISO 9001:2008. As per customers' requiremnts, we also can provide the BV etc third party certificate.

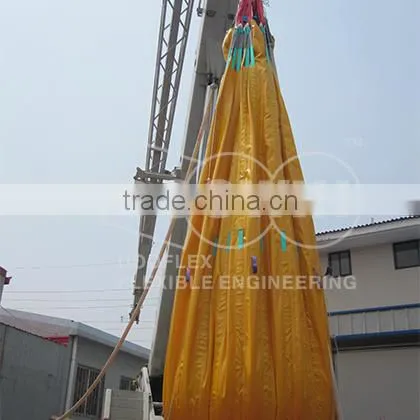

20ton Crane Test Water Bags Filling Water Test
Water Bags Preven in Crane Load Testing Practice
Crane Test Water Bags BV Inspection Report
