razor blade barbed wire BTO-10/12/12/22 CBT60/65
Technique:

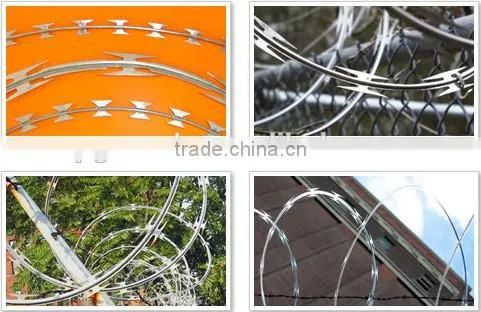

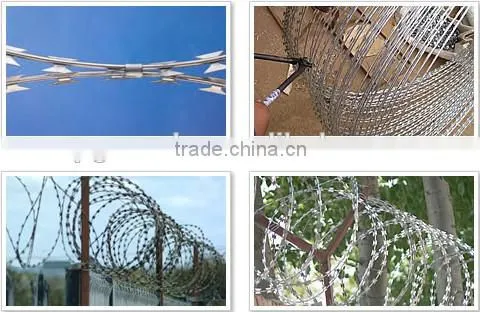

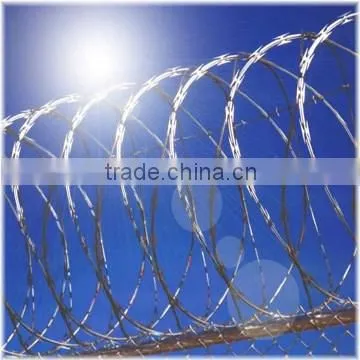

razor barbed wire is a kind of blocking material, which is composed of blades made of galvanized steel or stainless steel plate with punching a sharp knife flake and a high tension galvanized core wire or stainless steel core wire. with its unique appearence and security, razor barbed wire can achieve excellent protection and screen effect. the mainly material of razor barbed wire are galvanized steel and stainless steel plate.
characteristics:
with beautiful and sharp blades and strong core wire, razor wire has the features of good deterrent effects, nice appearence , easy installation, economicial and practical and other properties.
use:

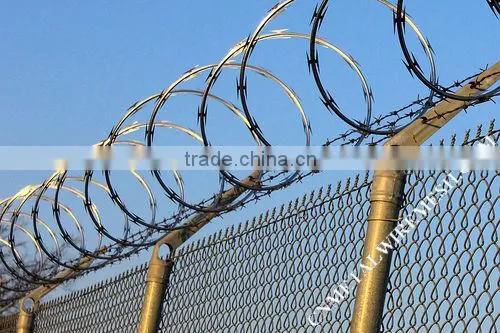

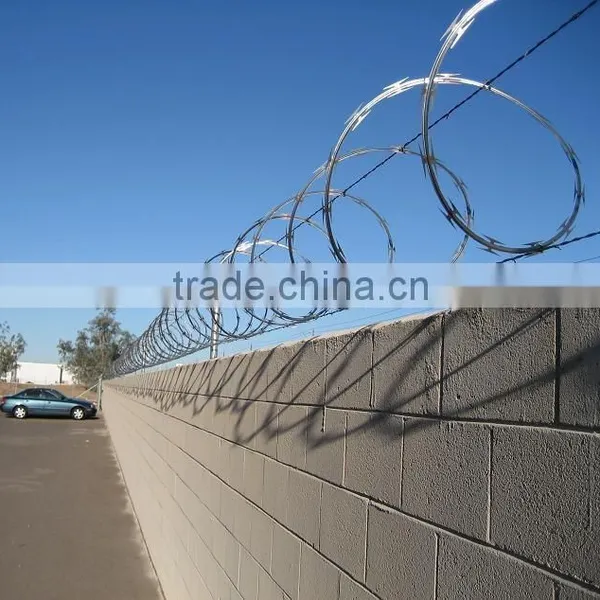

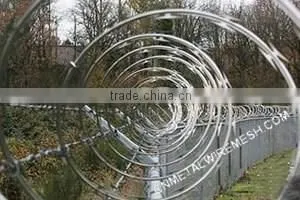

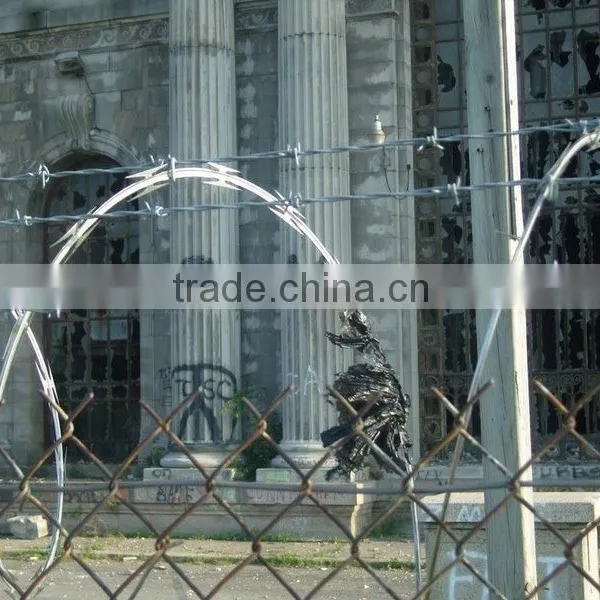

razor barbed wire is widely used in apartment houses,organization units, prision, frontier defense, military fields and other sites requiring severe fencing and security.
packing:
wrapped with plastic cloth inside, plastic woven bag outside.Every 20 bundles are wrapped with steel strip, into one large bundle. 100m/roll, 250m/roll, or as require.
Standard specification of razor barbed wire when using:
| Outside Diameter | No. of Loops | Standard Length per Coil | Type | Notes |
| 450mm | 112 | 17M | BTO-10. 12.18.20.22 | concertina |
| 500mm | 102 | 16M | BTO-10. 12.18.20.22 | concertina |
| 600mm | 86 | 14M | BTO-10. 12.18.20.22 | concertina |
| 700mm | 72 | 12M | BTO-10. 12.18.20.22 | concertina |
| 800mm | 64 | 10M | BTO-10. 12.18.20.22 | concertina |
| 960mm | 52 | 9M | BTO-10. 12.18.20.22 | concertina |
| Length, diameter can be made according to customers request. | ||||
| Core wire material: galvanized wire and stainless steel wire. | ||||
| Blade material: galvanized sheet and stainless steel sheet. | ||||

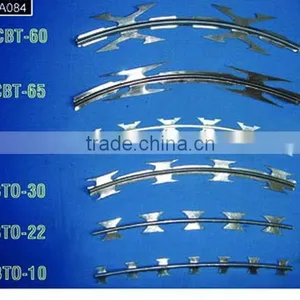

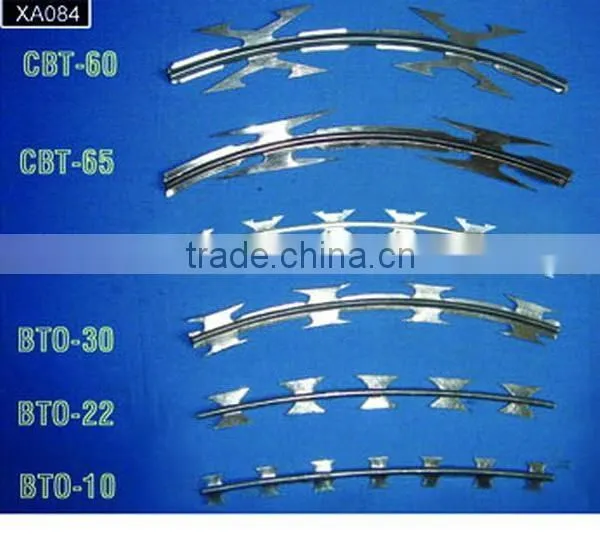

Razor tape size
| Ref. NO. | Thickness | Wire Dia | Barb Length | Barb Width | Barb spacing |
| BTO-10 | 0.5±0.05 | 2.5±0.1 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.5±0.05 | 2.5±0.1 | 12±1 | 15±1 | 26±1 |
| BTO-15 | 0.5±0.05 | 2.5±0.1 | 15±1 | 15±1 | 33±1 |
| BTO-18 | 0.5±0.05 | 2.5±0.1 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.5±0.05 | 2.5±0.1 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.5±0.05 | 2.5±0.1 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.5±0.05 | 2.5±0.1 | 30±1 | 18±1 | 46±1 |
