Perfume Freezing Filter, Perfume Making Equipment, Pneumatic Perfume Freezing Filter Making Machine

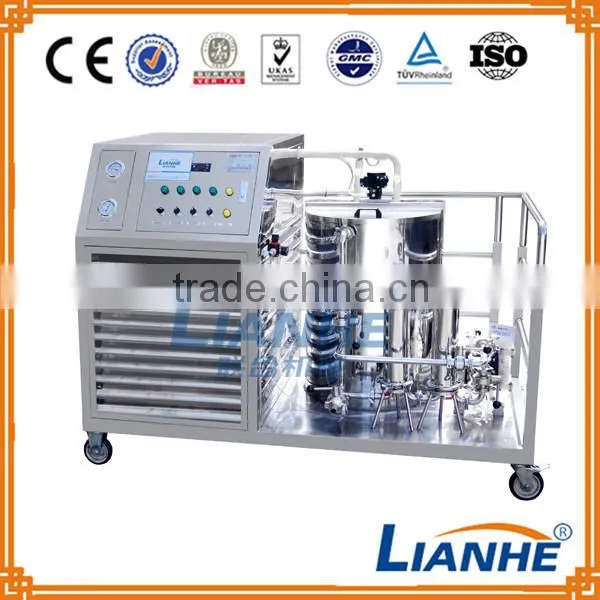

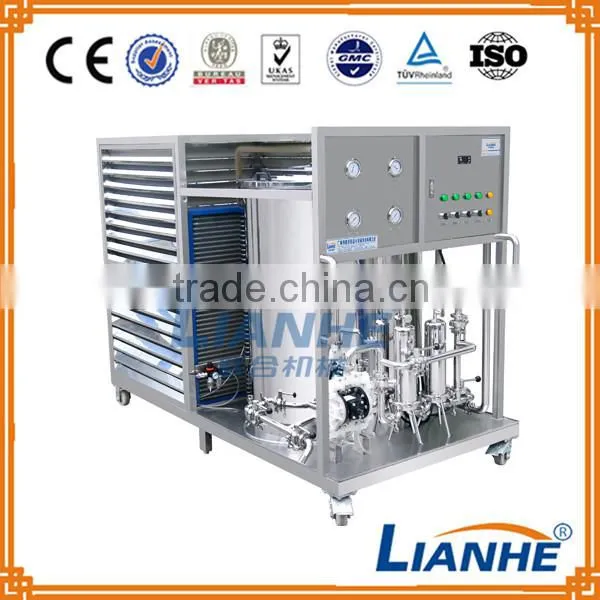

LH-series Perfume making machine
n This product is our most newly opened machine which specialize in cosmetic, liquid, perfume, it freeze to the liquid of filtration;
n Cosmetic industry: lotion, perfume, essence, etc
n Pharmaceutical industry: oral liquid, solution and various infusion, etc
n Food industry: wine, beverage, etc.;
n This machine is developed on the basis of bring in overseas advanced technology, it is specialized used in clarification and filtration of fluid after freezing in cosmetic water, perfume water, it is ideal equipment for cosmetic factory filtrating cosmetic water, perfume water. It adopts stainless steel 304-2B or 316L, with pneumatic diaphragm pump imported from U.S. as pressure source so as to positive pressure filtrating. The connecting pipes adopt sanitation grade polishing pipe, most are quick-install connecting way, easy to take apart and clean. Equipped with polypropylene micro porous filtrating membrane which is widely applied in cosmetic industry, research institute, hospital, laboratory etc, to clarify of little fluid and sterilization or chemical analysis, convenient and reliable.

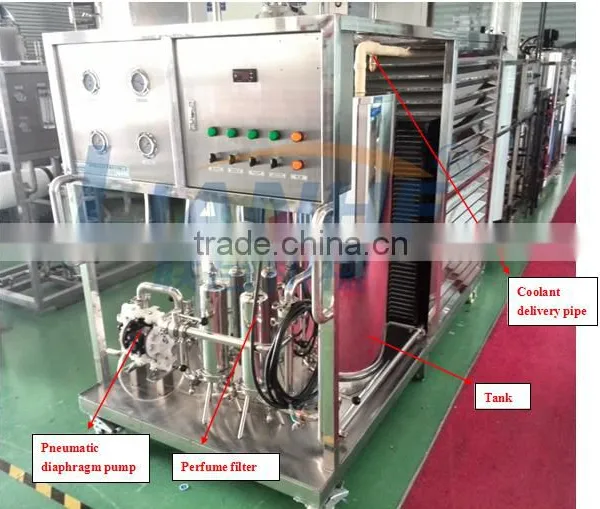

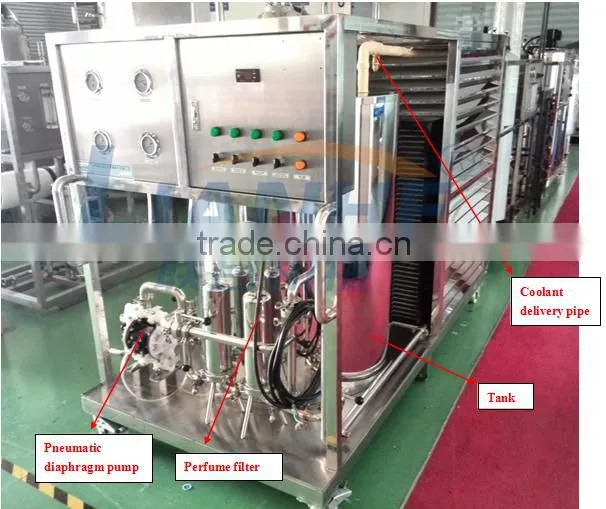

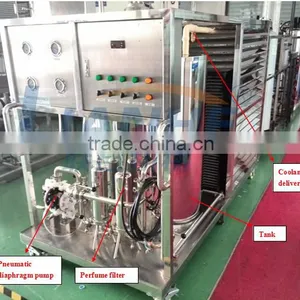

Equipment Configuration

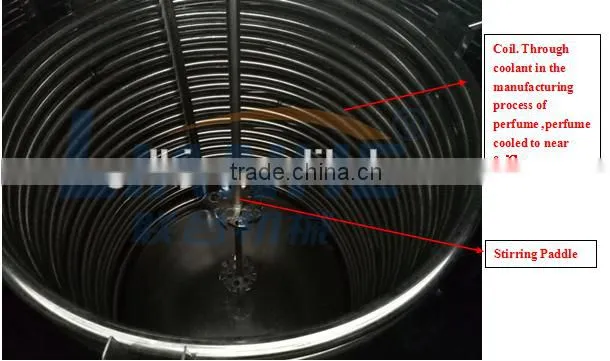

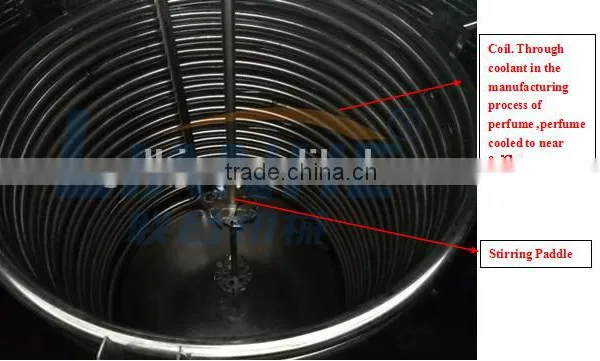

1, Stainless steel insulating frozen tank and Titanium metal pipe
2, Ultra-low temperature chiller (imported)

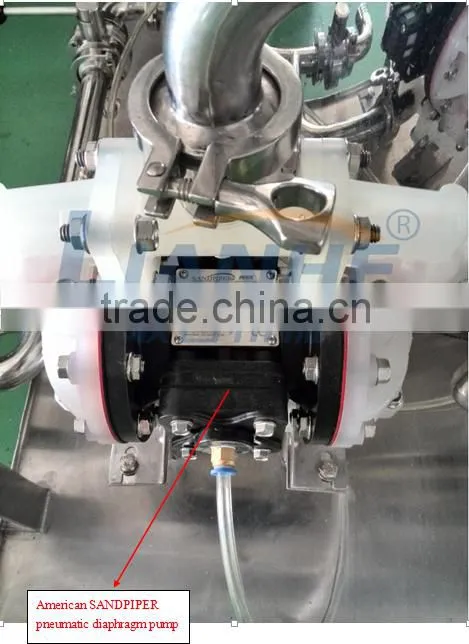

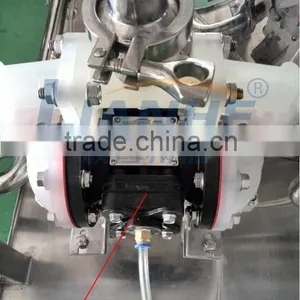

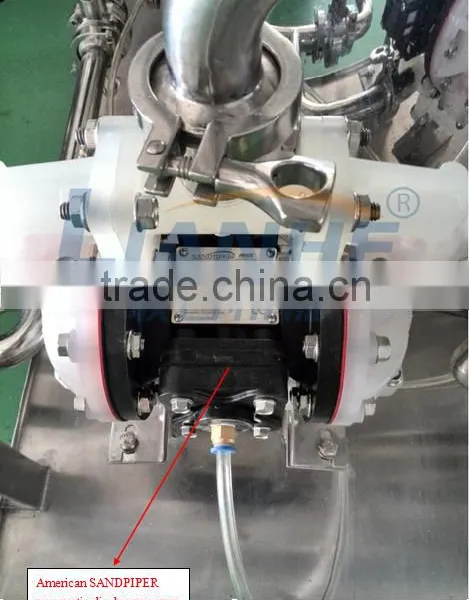

3, Antisepsis pneumatic diaphragm pump
4, Polypropylene microporous filtrating membrane
5, Portable stainless steel bracket
6, Sealed electronic control system & sanitation grade pipes and valve
Technical Parameter
Model |
200L (3P) |
300L (5P) |
500L(10P) |
Capacity |
200L |
300L |
500L |
Voltage |
380V/50Hz |
380V/50Hz |
380V/50Hz |
Power |
2.2KW |
3.75KW |
7.5KW |
Freezing Temperature |
-15 Celsius degrees |
-15 Celsius degrees |
-15 Celsius degrees |
Freezing Medium |
R22 |
R22 |
R22 |
Air source |
0.5-0.6Mpa |
0.5-0.6Mpa |
0.5-0.6Mpa |
Filter pressure |
0.2Mpa |
0.2Mpa |
0.2Mpa |
Level 1 filter |
1.0um |
1.0um |
1.0um |
Level 2 filter |
0.2um |
0.2um |
0.2um |
Perfume Freezing Filter, Perfume Making Equipment, Pneumatic Perfume Freezing Filter Making Machine
♦ LIANHE cosmetics machinery establish since 1992 and has more than 20 years experiences.
♦ LIANHE cosmetics machinery is a scientific enterprise specialized in research , development, production and management of cosmetic, food and pharmaceutic machine, such as water treatment, emulsifier, homogenizer, filling machine and packing machinery and all of cosmetic production lines
♦ LIANHE cosmetics machinery have complete machine equipment, perfect technological flow, powerful technical force, excellent products development and design ability as well as rich production experiences.
♦ LIANHE cosmetics machinery material, imported from Japan, Germany etc. We have passed ISO9001,CE, GMP.

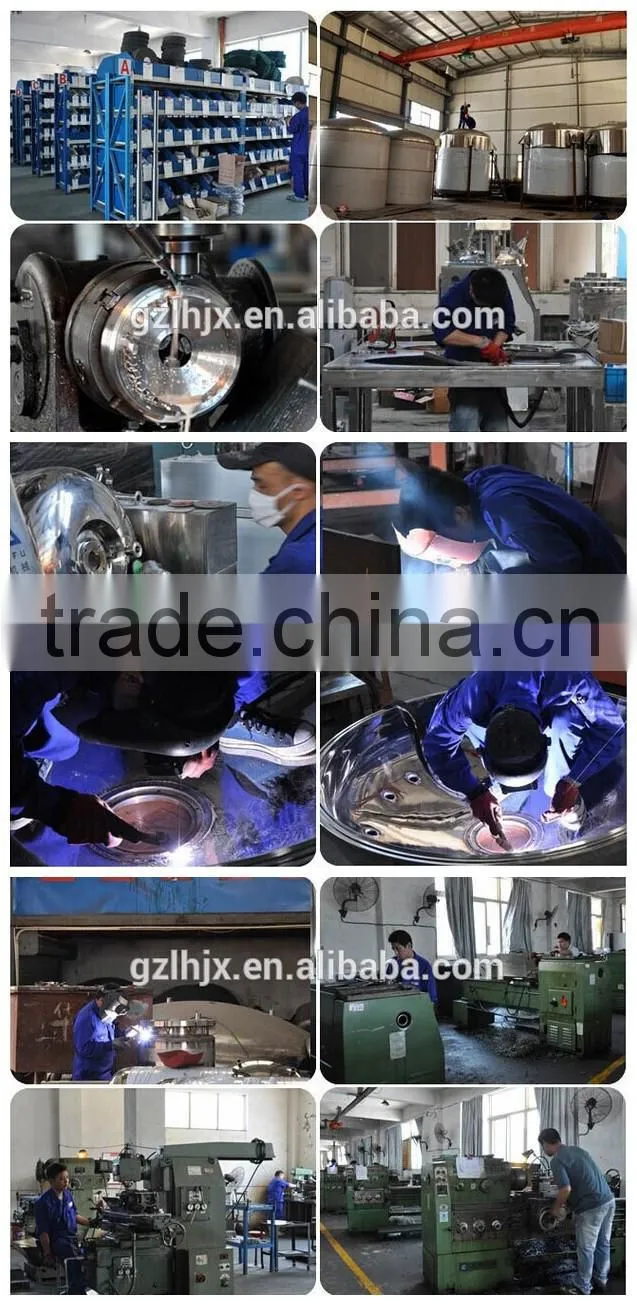

Pictures of manufacture
Our customers from all over the world
Pictures of CE ISO Certification
Our machine parts vendors
- Guarantee: 1-2 years
- 24 hours Network technical support
- Oversea engineering Service
- Spareparts for consumables
- Manufacture Factory visit available
- Long-term maintaining
1. Q: Where is your factory?
A: We are in Guangzhou, China.
2. Q: How can I check the quality?
A: You can fly to our factory to inspect or we take video for you.
3. Q: How will you deliver my goods?
A: We can deliver it by sea or by air.
4. Q: Do I have to learn how to operate this machine?
A: Yes, you can follow our user guide or be trained by our engineer.
5. Q: Where can I get help on this machine?
A: Contact us whenever you need help, or we can arrange oversea engineer to help.
