Best price aluminum ointment tube filling machine,high speed tube filling machine
Inner heating Cream filling machine plastic tube filling and sealing machine, soft tube filler and sealer
Function
1.Main machine frame with stainless steel covers
2.AC inverter for main drive for step-less speed variation-
3.Automatic aluminum or plastic tube hopper with pneumatic system of tube insertion into rotary index table

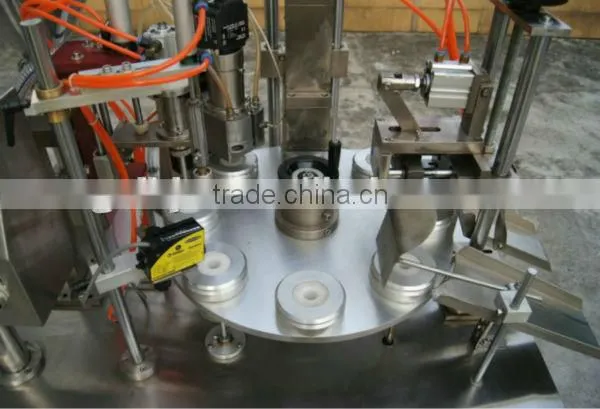

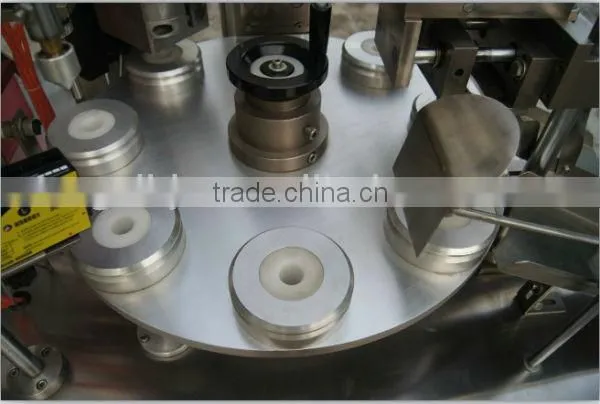

4.Rotary index table for transferring tubes to filling, closing stations and other sections
5.Tube orientation controlled by photocell for accurate positioning of tubes
6.50 litres capacity stainless steel hopper
7.Stainless steel volumetric dozing syringe and Teflon piston seals for accurate dosage with step-less adjustment of volume
8.Tube lifting at filling station – so that filling nozzle gets inserted inside tube during filling
9.Tail cutting by 'suck back' method to prevent dripping of product after filling
10. Hot air tool for plastic / laminated tubes (Leister make heater)
11.PID temperature controller for accurate control of hot air temperature
12.Air supply to air heater through independent blower
13.Batch code embossing facility within sealing jaws (by using negatively etched character type fount)
14. Trimming of plastic /aluminum/ laminated tubes at the top end.
Inner heating Cream filling machine plastic tube filling and sealing machine, soft tube filler and sealer
Features
♦Compact design
♦Driving parts fully-closed
♦Pneumatic tube washing&feeding
♦Intelligent temperature control and cooling system
♦Easy to operate and adjust
♦316L stainless steel contact parts to meet GMP standard
♦Safety interlock shutdown when door is open
♦Overload protection provided
♦Automated working process from tube loading to finished products output
♦Automatic orientation effected by photoelectric induction
Inner heating Cream filling machine plastic tube filling and sealing machine, soft tube filler and sealer
Optional devices
♦Chiller
♦Date coding embossing
♦Automatic tube feeding magazine
♦Change parts
Inner heating Cream filling machine plastic tube filling and sealing machine, soft tube filler and sealer
Technical parameters
♦Filling volume:1-250ml/unit(adjustable)
♦Filling accuracy:1%
♦Capacity:1800-3600unit hour(adjustable)
♦Tube diameter:10-60mm
♦Tube length:50-240mm
♦Hopper volume:40L
♦Power:380V/220V(optional)
♦Air pressure:0.4-0.6Mpa
♦Equipped motor:1.1KW
♦Machine power:5KW
♦Inner wind motor:0.37KW
♦Convulsion motor:0.37KW
Inner heating cream filling machine/soft tube filler and sealer 2015 hot sale
After-sales Service
1. The machines' quality that we sold will be guaranteed for 1 year.
2. Provide you life-long maintenance.
3. Within 24 hours we will send service technicians to the your site.
4. Under normal circumstances, the company will be equipped with conventional spare replacement parts to meet your requirements at any time

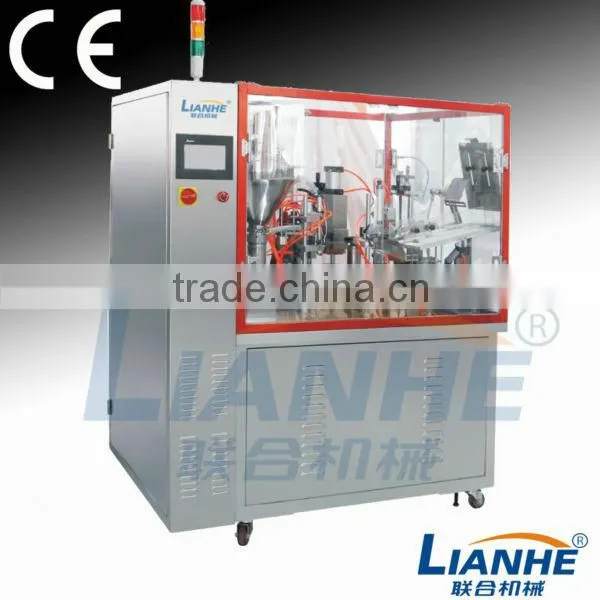

Full automatic tube filling and sealing machine
Aluminum tube Semi automatic filling and sealing machine
Semi-automatic tube filling and sealing machine
Inner heating Cream filling machine plastic tube filling and sealing machine, soft tube filler and sealer
Thank you for browsing our producets, any questions feel free to contact with me. And welcome to visit our factory and office at any time.
