Capsule/Tablet Blister Packing Machine for Pharmaceutical

Name: Capsule/Tablet Blister Packing Machine for Pharmaceutical
Brand: Zhengri
SKU: 126120225

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Medical

Automatic Grade:

Automatic

Zhengri Plastic Machine Co., Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Medical

Automatic Grade Automatic

Driven Type Electric

Voltage 380V/220V

Power 380V/220V 50Hz 3.2kw

Place of Origin Zhejiang, China

Brand Name Zhengri

Model Number DPB-140

Dimension(L*W*H) 2300*560*1410

Weight 800KG, 800

Certification CE ISO

Warranty 1year

After-sales Service Provided Engineers available to service machinery overseas

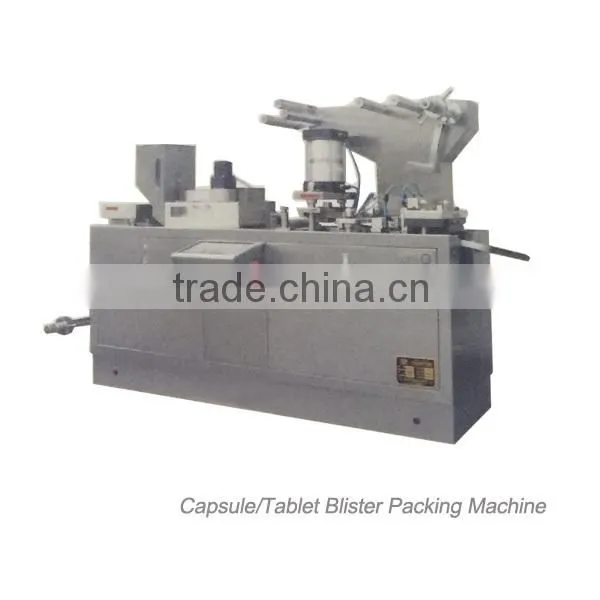

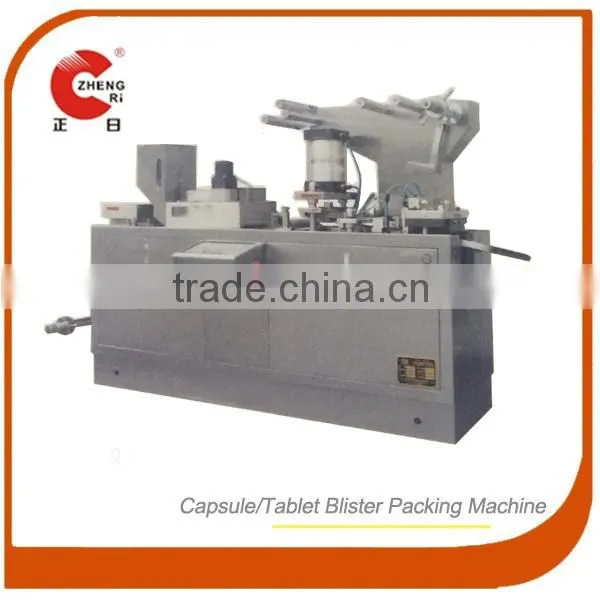

Capsule/Tablet Blister Packing Machine for Pharmaceutical

The product is specially designed for hospital dosage room,Laboratory institute,health care

product,middle-small pharmacy factory,and featured by compact machine body,easy operation,

multi-functional,stroke adjustable.It is suitable for the ALU-PVC package of medicine,food,

electric parts etc.

Main Technical Parameters	DPB-140
Punch Frequency(Times/min)	8-35
Capacity(Blister/h)	4200(Standard 80*57)
Max forming area and depth(mm)	13011020
Stroke(mm)	20-120
Standard Blister(mm)	8057,8035,9565,10542,105*55 Can be designed as user’s requirements
Air Supply	0.5Mpa-0.7Mpa 0.15m3/min
Total Power	380V/220V 50Hz 3.2kw
Main Motor Power(kw)	0.75
PVC hard pieces(mm)	0.15-0.5*140
PTP Aluminum Foil(mm)	0.02-0.035*140
Dialytic Paper (mm)	50-100G/m2*140
Mould Cooling	Tap water or recycle water
Overall Dimension(mm)LWH	23005601410
Weight(kg)	800
