1. Brief introduction:
Paint, beer, vegetable oil, medicine, cosmetics, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating solution, milk, mineral water, hot solvent, latex, industrial water, syrup, resin, printing ink, industrial waste water, juice, edible oil, waxes.
Working principle
DL series bag filter is a kind of novel structure, small volume, simple and flexible operation, energy saving, high efficiency, enclosed operation and strong adaptability multipurpose filtration equipment.
DL series bag filter: filter cylinder simplified, the filter head and quick opening structure, stainless steel filter bag reinforce net main components.
The filter is a pressure type filtering device, the liquid from the filter shell beside the entrance into the pipe bag and device in strengthening network, liquid infiltration had need of degree of fineness of the bag that can be qualified filtrate bag itself is a, impurity particles is capture filter bag. The replacement of the filter bag is very convenient, without the basic filter material consumption.
2. Techinical Specification:
YPE |
Filter area(m2) |
inlet and outlet dimension (mm) |
Maximum flow rate m3/h
(=1 CPS viscosity)
|
Maximum working pressure (Mpa) |
Maximum operating temperature (℃) |
Nominal filtration accuracy (µm) |
DL-1P1S |
0.25 |
DN40 |
10 |
≤0.4 |
≤120
|
1,5,10,15,25,40,50,65,75,80,100……1200 |
DL-1P2S |
0.5 |
DN40 |
20 |
|||
DL-4P1S |
1 |
DN80 |
40 |
|||
DL-4P2S |
2 |
DN80 |
80 |
|||
DL-6P1S |
1.5 |
DN100 |
60 |
|||
DL-6P2S |
3 |
DN100 |
120 |
|||
DL-8P1S |
2 |
DN125 |
80 |
|||
DL-8P2S |
4 |
DN125 |
160 |
|||
DL-10P2S |
5 |
DN125 |
200 |
|||
DL-12P2S |
6 |
DN150 |
240 |
|||
DL-16P2S |
8 |
DN150 |
320 |
|||
DL-20P2S |
10 |
DN200 |
400 |
|||
DL-24P2S |
12 |
DN200 |
480 |

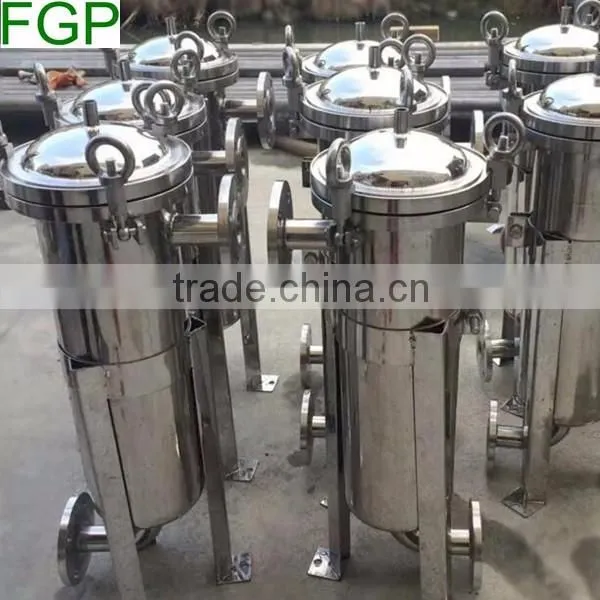

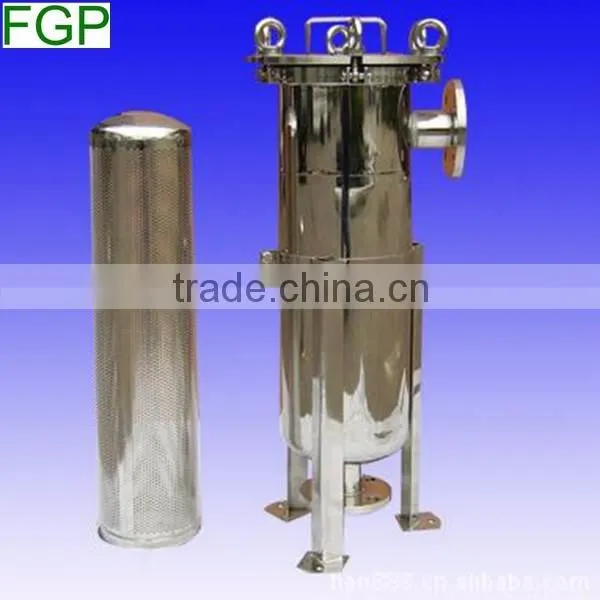

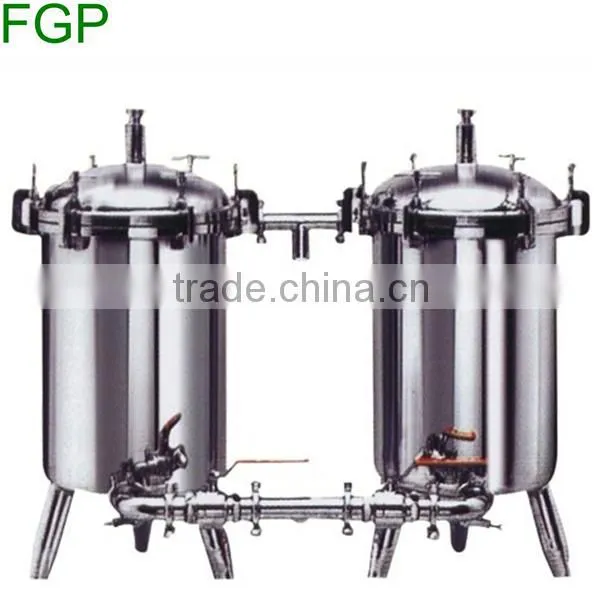

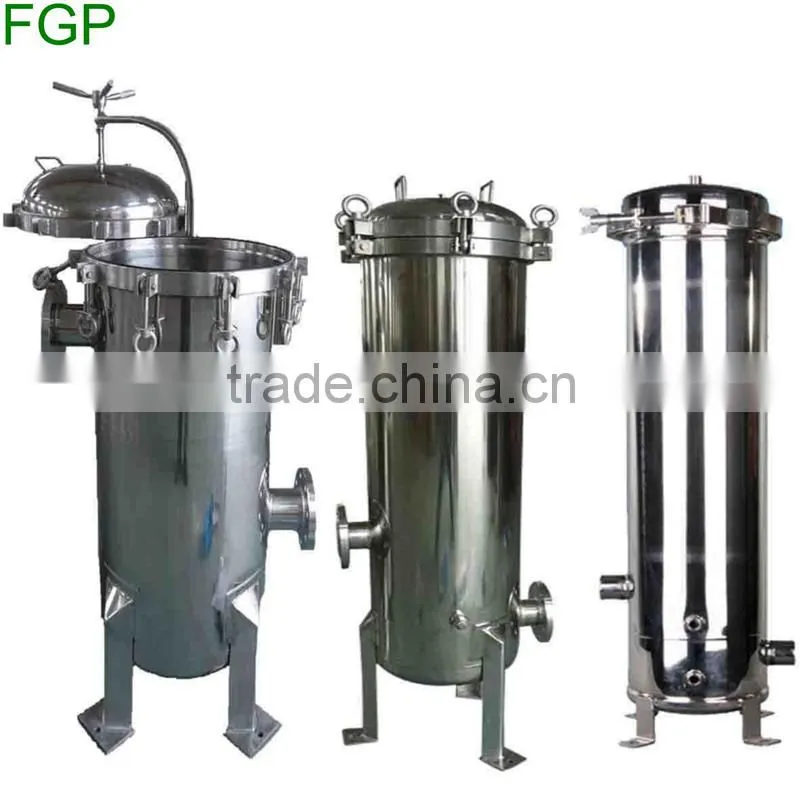

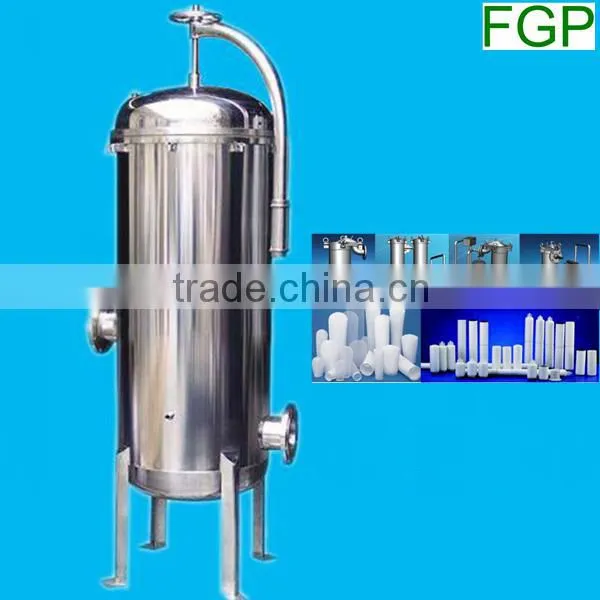

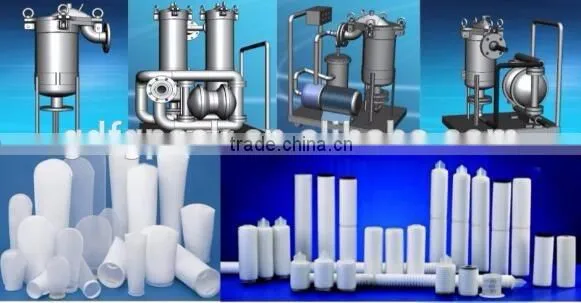

3. Sample machine photos for your reference only:
