Specifications
1.Clean sand can be got and sand lose less2.water-saving,no pollution and long life span
3.easy maintenance

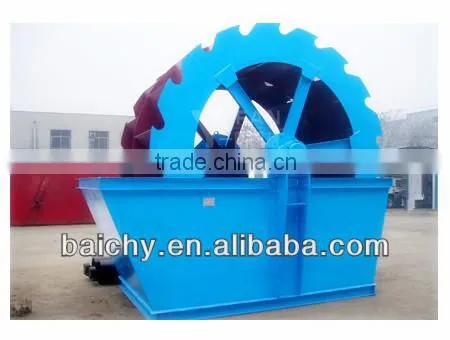

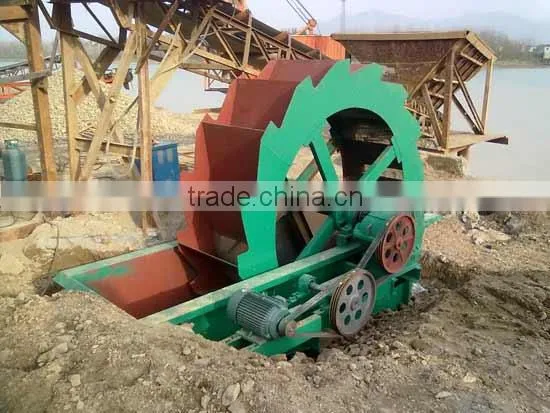

Sand Washing Machine:
Sand washing machine is artificial sand wet processing of the necessary equipment, which can effectively improve the quality of the finished sand.Our development and production of XSD series of highly efficient bucket wheel sand washing machine combined with the actual situation of domestic and gravel industry, both cleaning, dewatering, grading three functions, widely used in metallurgy, building materials, utilities and other industries washing, grading, cleaning and other operations.
1. Features of sand washing machine :
1,Sand washing machine structure simplicity, the impeller drive bearing device isolate material with water, avoiding the bearing due to flooding, sand and pollutants cause damage to the phenomenon.
2,Sand washing machine that used to wash the sand gravel pits compared to traditional sand washing machine, the following advantages:
a.Rarely loss of fine sand and stone powder, and be washed building sand gradation and fineness modulus up to the national "building sand", "building gravel, crushed stone" scale.
b.Bucket wheel sand washing machine except the screen has almost no wearing parts.
c.Long life, long-term without repairs.
3,Reasonable structure, convenient repairs, large capacity, power consumption is small, clean and high.Novelty sealing structure, the whole blocked oil bath type transmission device, adjustable overflow weir plate, to ensure that the product efficiency, durability, cleaning, goog dewatering effect and fine-grained products keep not disorderly and so on.
4,Used in the construction site, sandstone factory, glass factory, hydropower stations and other units required for the smaller particles used sand washing, grading and dehydration.
2. Specification of sand washing machine:
| Model |
Impeller Dia (mm) |
Feeding Size (mm) |
Capacity (t/h) |
Motor Power (kw) |
Overall Dimension LXWXH(mm) |
| XSD2610 | Φ2600 |
≤10 | 30-60 | 7.5 | 3320x2125x2670 |
| XSD2915 | Φ2900 | ≤ 10 | 50-90 | 15 | 3810x2686x3085 |
| XSD3016 | Φ3000 | ≤ 10 | 80-160 | 18.5 | 4500x3206x3480 |
3.Certificates of sand washing machine :
