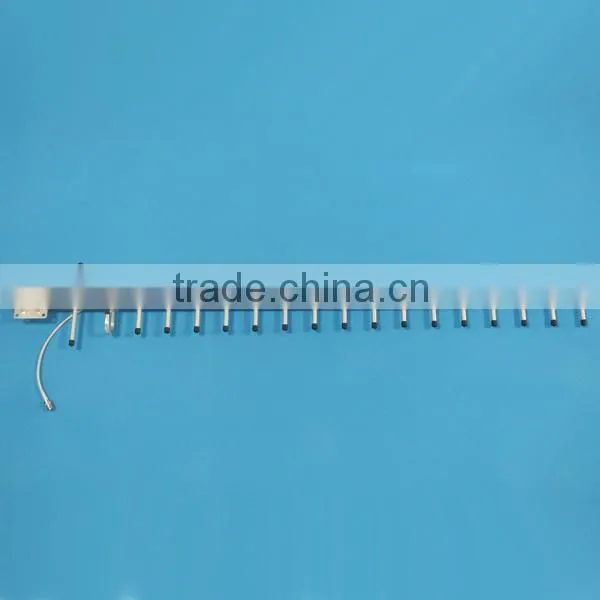

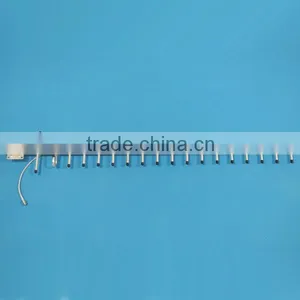

Help CenterAntenna Manufacturer 18dBi Heavy-duty Extruded Anodized Aluminum 2.4ghz High Gain Outdoor Yagi Wifi Antenna
Related Products
-
Antenna Manufacturer 824-960MHz 18dBi GSM CDMA Aluminium External Yagi AntennaNegotiableMOQ: 500 Pieces -
Antenna Manufacturer 2.3-2.7GHz 16dBi 16 Element 4g High Gain Yagi Indoor Wifi AntennaNegotiableMOQ: 500 Pieces
-
Antenna Manufacturer 1920-2170MHz 16dBi Heavy-duty Extruded Anodized Aluminum 3g Antenna Yagi 2100MHzNegotiableMOQ: 500 Pieces
-
Antenna Manufacturer 806-960/1710-2700MHz 10/11dBi Wide Band Yagi Directional DAS & LTE Log Periodic AntennaNegotiableMOQ: 1000 Pieces
-
Antenna Manufacturer 13dBi Aluminium 2.4ghz High Gain Wifi YagiNegotiableMOQ: 500 Pieces
Specifications
High gain;Aluminum alloy framework;Full day working;Optimized dimension;Vertical or Horizontal Mounting way;Factory Price.This High-Performance Yagi Antenna combines high gain with a wide 30 degrees beam-width.
2.4 GHz 18 dBi heavy-duty extruded anodized Aluminum Yagi Antenna - with PR-SMA male cable
Feature:
High gain;
Extruded anodized Aluminum Alloy framework;
Full day working;
Optimized dimension;
Vertical or horizontal mounting way.
Application:
2.4 GHz WLAN system;
Point-to-point, point-to-multipoint system;
Wireless bridging, client termination antenna.
|
AMXY-2400-18 Electrical Specifications | |
Frequency range(MHz) |
2400-2483 |
Bandwidth(MHz) |
83 |
Gain(dBi) |
18 |
Element |
18 |
Half-power beam width(°) |
H:30 V:28 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
RP-SMA male or others |
Mechanical Specifications | |
Dimensions(mm) |
580*70*44 |
Cable length(m) |
1 |
Antenna weight(kg) |
0.35 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Clamp |
U-shape |
Mounting hardware(mm) |
Φ35~Φ50 |
