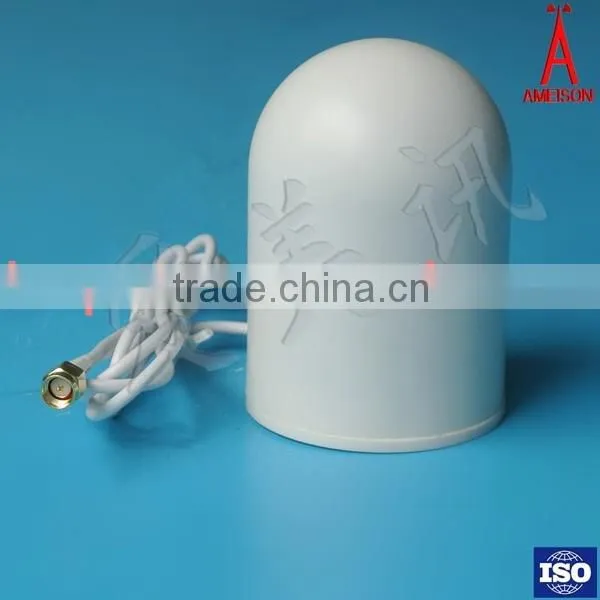

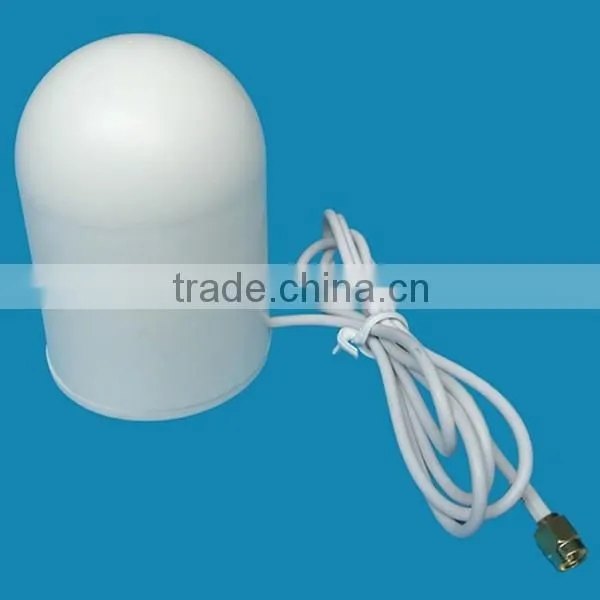

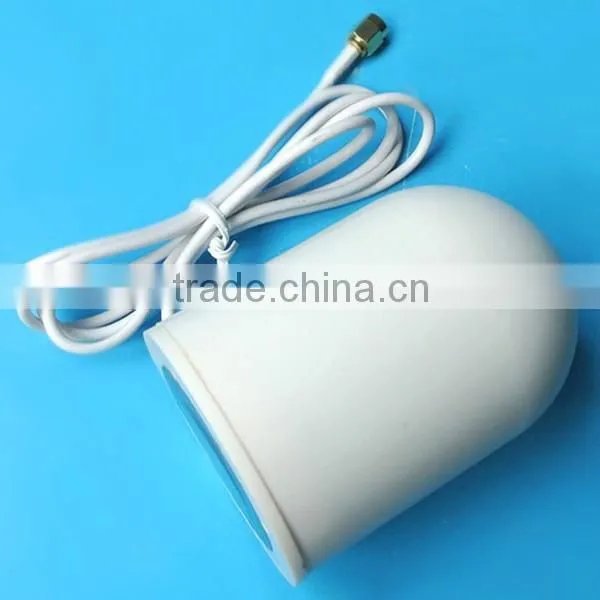

AMEISON 1800-2700 MHz 3 DBi Indoor Wifi Omni Directional Antenna

Name: AMEISON 1800-2700 MHz 3 DBi Indoor Wifi Omni Directional Antenna
Brand: AMEISON
SKU: 126222227

Negotiable MOQ: 100 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

AMEISON

Model Number:

AMXF-1827-3

Shenzhen Ameison Communication Equipment Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen or HongKong

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name AMEISON

Model Number AMXF-1827-3

AMEISON 1800-2700 MHz 3 dBi indoor wifi omni directional antenna

AMXF-1827-3

Feature:

Exquisite appearance

Optimized dimension

Full day working

Wide frequency band, low standing wave, strong anti-interference ability

Application:

PCS/ 3G/ WLAN/ 4G/ LTE system

Vehicle mobile communication device

AMXF-1827-3 Electrical Specifications
Frequency range(MHz)	1800~2700
Bandwidth(MHz)	900
Gain(dBi)	3
Half-power beam width(°)	H:360 V:55
VSWR	≤1.5
Input Impedance(Ω)	50
Polarization	Vertical, Linear
Maximum input power(W)	50
Lightning protection	DC Ground
Input connector type	SMA Male or Requested
Mechanical Specifications
Dimensions(mm)	Φ60*85
Antenna weight(Kg)	0.05
Operating temperature(°c)	-40 ~ 60
Radome material	ABS
Radome color	White or customized
Waterproof Standard	IP65/ IP67
Mounting hardware(mm)	35 - 50
Mounting way	Magnetic adsorption/ Wall/ Pole Mount
