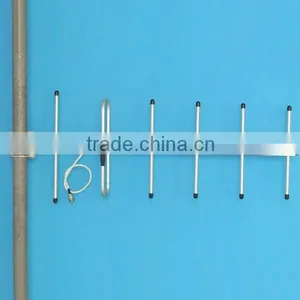

High Selling 230MHz 10 DBi Directional Outdoor Yagi Antenna
Negotiable
MOQ: 100 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
AMEISON
Model Number:
AMXY-230-10
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or HongKong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12dbi 6 Elements 433MHz Directional Uhf Yagi Antenna Outdoor cb Radio AntennaNegotiableMOQ: 100 Pieces -
Antenna Manufacturer 890-960MHz 12dBi Heavy-duty Anodized Aluminum High Gain 900MHz ISM/GSM/CDMA/RFID Directional Yagi AntennaNegotiableMOQ: 500 Pieces
-
Antenna Manufacturer 806-960/1710-2500MHz 8/9 DBi Wide Band Directional Yagi DAS & LTE Log-periodic AntennaNegotiableMOQ: 1000 Pieces
-
Antenna Manufacturer 420MHz 12dBi Anodized Aluminum High Gain UHF China Yagi AntennaNegotiableMOQ: 500 Pieces
-
Antenna Manufacturer 2.4GHz 13dBi Outdoor Heavy-duty Anodized Aluminium WiFi High Gain Yagi Station AntennaNegotiableMOQ: 500 Pieces
Place of Origin
Guangdong, China
Brand Name
AMEISON
Model Number
AMXY-230-10
230MHz Directional Yagi Antenna
AMXY-230-10
Feature:
- High gain
- Aluminum alloy framework
- Full day working
- Optimized dimension
- Mounting way can be Vertical or Horizontal
Application:
- 230MHz system
- Point-to-point,point-to-multipoint system
- Wireless bridging,client termination antenna
|
AMXY-230-10 Electrical Specifications | |
Frequency range(MHz) |
230±10 |
Bandwidth(MHz) |
20 |
Gain(dBi) |
10 |
Element |
6 |
Half-power beam width(°) |
H:42 V:38 |
Front-to-back ratio(dB) |
≥16 |
VSWR |
≤1.5 |
Input Impedance(Ω) |
50 |
Polarization |
Horizontal or Vertical |
Maximum input power(W) |
100 |
Lightning protection |
DC Ground |
Input connector type |
N female or others |
Mechanical Specifications | |
Dimensions(mm) |
1440*680*80 |
Cable length(m) |
0.3 |
Antenna weight(kg) |
0.55 |
Operating temperature(°c) |
-40~60 |
Rated Wind Velocity(m/s) |
60 |
Clamp |
U-shape |
Mounting hardware(mm) |
Φ35~Φ50 |
Our Services
provide you:
high quality products
better product pre-sales and after-sales service
attractive prices
shorter delivery
