SZH Series Double Screw Conical Mixer

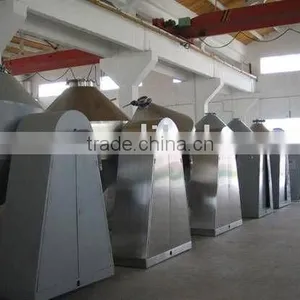

SZH Series Double Screw Conical Mixer thumbnail-1

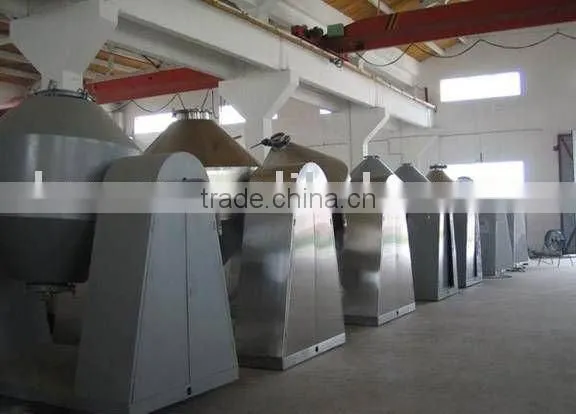

SZH Series Double Screw Conical Mixer photo-1
US$ 1,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Rotary Drying Equipment
Place of Origin:
Jiangsu, China
Brand Name:
Lemar
Contact Supplier Request Quote Chat Now
Changzhou Lemar Drying Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Rotary Drying Equipment
Place of Origin Jiangsu, China
Brand Name Lemar
Model Number SZH

Specifications

Double screw conical mixer
1,energy saving
2, low labor intensity
3,high work efficiency
4,easy to operate/ screw conical m

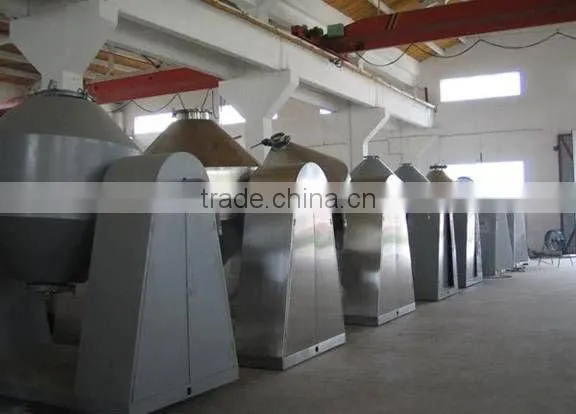

SZH Series Double screw conical mixer

Description of Double screw conical mixer

1,This powder or granule materials or artificial feeding conveyor by vacuum container to double taper container constantly rotating. Materials in containers for complicated impact to the mixture evenly sport. The powder or granule materials were conveyed into the two-cone container by the vacuum pump. The materials make a very complex impact motion in the container when the container rotate constantly to approach   uniformity.

2 ,This Double screw conical mixer is energy saving, easy to operate, low labor intensity , high work efficiency.

3,This Double screw conical mixer is suitable for mixing the powder and grain state materials in the pharmacy, chemical food, chemical food, building material and other industries.



parameters of Double screw conical mixer



model

SZH-0.3

SZH-0.5

SZH-1.0

SZH-1.5

SZH-2.0

SZH-2.5

SZH-3.0

SZH-4.0

SZH-5.0

SZH-6.0

SZH-10

Production capacity (kg/h)

120

200

400

600

800

1000

1200

1600

2000

2400

4000

Feeding time (min)

3-5

4-6

6-9

6-10

8-13

8-15

8-12

10-15

15-20

18-25

20-30

Mixing time (min)

4-8

4-8

6-15

6-15

6-15

6-15

8-20

8-20

8-20

8-20

8-20

volume (m3)

0.3

0.5

1.0

1.5

2.0

2.5

3.0

4.0

5.0

6.0

10

Stirring speed (rpm)

20

12

12

12

12

12

12

12

12

10

8

Power(kw)

1.1

2.2

4

4

5

7.5

7.5

11

15

18.5

30
