EYH Series Two Dimensional Mixing Machine

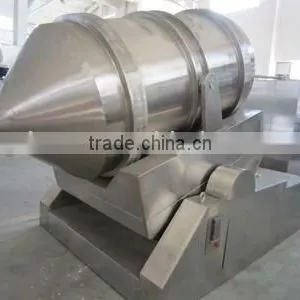

EYH Series Two Dimensional Mixing Machine thumbnail-1

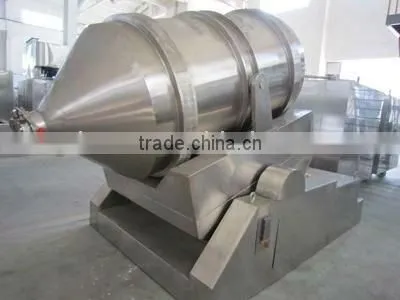

EYH Series Two Dimensional Mixing Machine photo-1
US$ 100 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Other, mixer
Place of Origin:
Jiangsu, China
Brand Name:
Lemar
Contact Supplier Request Quote Chat Now
Changzhou Lemar Drying Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, mixer
Place of Origin Jiangsu, China
Brand Name Lemar
Model Number EYH

Specifications

Two Dimensional Mixing machine
1, Widely applicated
2, fully mixed
3,High efficiency for this two dimensional mixing machine



Description of Two Dimensional Mixing machine



1,This machine is widely applied in pharmacy, chemical industry, food industry dyeing industry, fertilizer industry and pesticide industry, especially suitable for mixing large-tonnage (1000L - 10000L) solid materials.

2,The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed.Because the discharge port of the barrel is out of the barrel centre line, the mixer features quick mixing and discharging, as well as high volume mixing capacity.



parameters  of Two Dimensional Mixing machine

model

Barrel volume(L)

Loading capacity(L)

Max loading weight(kg/batch)

No. of swing and rotation r/min

Total motor power(kw)

Overall dimension X×Y×Z×Z1(mm)

Total weight(kg)

Barrel weight (kg)

EYH-10

10

5

2.5

85

0.021

310×400
×450×395

15

4

EYH-30

30

15

7.5

61

0.19

540×580
×900×700

60

8.5

EYH-60

60

30

15

50

0.4

700×730
×1100×990

115

15

EYH-150

150

75

37.5

37

1.15

800×1050
×1450×1340

190

50

EYH-300

300

150

75

30

1.15

900×1350
×1550×1400

340

60

EYH-600

600

300

150

23.6

3

1170×1640
×2050×1910

1150

140

EYH-800

800

400

200

19.8

3

1320×1950
×2150×2000

1600

200

EYH-1000

1000

500

250

19.8

3

1360×2040
×2300×2170

1700

240

EYH-1500

1500

750

375

16.2

4.4

1580×2400
×2550×2330

2000

320

EYH-2000

2000

1000

500

16.2

7.4

1740×2600
×2770×2550

2600

430

EYH-3000

3000

1500

750

13.8

11

1800×2900
×2950×2800

3500

620

EYH-4000

4000

2000

1000

12.8

13

1970×3300
×3300×2950

4100

700

EYH-6000

6000

3000

1500

11.2

18.5

2300×2900
×3800×3100

6100

1100

EYH-8000

8000

4000

2000

10.4

22

2540×4100
×4050×3650

7900

1450

EYH-10000

10000

5000

2500

9

30

2900×4500
×4400×4020

9500

1650
