CCA Wire,Welding CCA, copper Clad Aluminum (CCA),CCA Solder wire , Enameled CCAfit for moter&transfomrer,fan,pump,ectric parts
CCA Wire,CCA ,Welding CCA, copper Clad Aluminum (CCA),CCA Solder wire , Enamelled CCA,Copper & Aluminum wire,welding wire copper aluminum
1. Description for CCA
Copper clad aluminium wire is produced with the production process of cladding welding drawing method. CCA wire has characteristics of both copper wire & aluminium wire low density from aluminium & good conductor from copper. This bimetallic ire is suitable for most electrical applications.

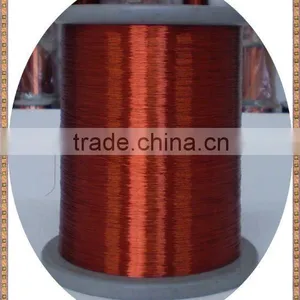

2.Product: Enameled copper clad aluminum wire(ECCA)
Executive stand: IEC standard as reference
Core number one
All the product Diameter:
Enameled Copper Clad Aluminum wire (ECCA)
Copper Clad Aluminum (CCA)
Enameled Copper Wire
Enameled aluminum Wire (EAL)
Enameled copper clad aluminum wire(ECCA):012-0.9mm
Enameled aluminum wire(EAL):0.13-2.5mm
Enameled copper wire:0.12-2.0mm
Copper clad aluminum wire(CCA):0.12-2.5mm
3.TECHNOLOGY SHEET:
Copper pertage in weight is 30%-40%
Insulation material: Polyester,Polyurethane,Polyester-imide
Model:QA(PEW),QZ(UEW)and QZY(EIW)
Class:130/155/180/220 or 200
Insulation Tickness: 0.007-0.010mm
Core number:one
Shape materialsRound
Elongation:10%-20%
Tensile strength:172Mpa
Paint:1736s
Paint coating(mm):0.010--0.080
Packing:Carton
4.Feature and Perfomance
Straight drought resistancr,high-frequency performance,easy coloring,tide-resistant performance.
It has th advantages of:
(a) small density of aluminium
(b) good conductivity of copper
(c) high signal transmission property
(d) light weight
(e) low production cost
(f) direct soldering, good colorability , high adhesiveness
(g)thermal stability . high thermal endurance . high temperature softening breakdown
(h)HF-resistance , solvent resistance and chemical property resistance to winding damage
5.Application:kinds of Motors,Transformers, Electronic compoment ,instrumentwindings ,communication equipment ,step motors , Refrigerator rating compressors .. Ballast , Home appliance product. High heat-resistant electrical.
6..CERTIFICATE ADN STANDARD
Manufacture standard: IEC Standard Asreference
ISO9001:2000 Quality Management Systerm
Enameled Copper Clad Alumimum wire (ECCA) has the ROHT Authentication
Enameled wire (ECCA ,Enamelled copper wire ,EAL ,CCA)has SGS Authentication
