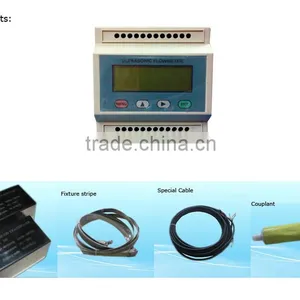

Transit Time Ultrasonic Water Flow Module With MODBUS

Transit Time Ultrasonic Water Flow Module With MODBUS thumbnail-1
Transit Time Ultrasonic Water Flow Module With MODBUS photo-1
US$ 60 - 450 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
DAYU
Model Number:
TDS-100M
Contact Supplier Request Quote Chat Now
Dalian Dayu Instruments Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name DAYU
Model Number TDS-100M
Product Description
Transit time ultrasonic water flow module with MODBUS
Accuracy
±1.0%
Repeatability
0.2%
Power
500mS (Twice per second,128 data per measurement period)
Power comsumption
8~36VDC
Output
Working current is 50mA.(When it does not connect with the keypad and the buzzer not ringing.)
Input
RS485/4~20mA or 0~20mA/OCT
Display
PT100 Platinum resistance
3 channel 4~20mA optionally, accuracy is 0.1%. Can put in the pressure, liquid level, temperature,etc.
Operation
2x20 LCD. Display the instaneous flow rate, velocity and positive/negative/net total rate.
Protective class
IP57
Transducer
Clamp-on, Insertion, Flow-cell type
Others
Auto-record the first 512 days, 128 months and 10 years pos/neg/net flow&heat totalizer.
Auto-record the first 30 times power on/off time and flow rate, can come true the adding data by auto or manual..
MODBUS protocol.
Detailed Images


Dimension: 90x90x30mm


Weight: 180g

Material: ABS

Color: white & blue
Transducers
Packing & Delivery

Packing:

Standard export carton.

Delivery:
DHL, FedEx, UPS, TNT, etc.
Or via the ordered shipping way.
