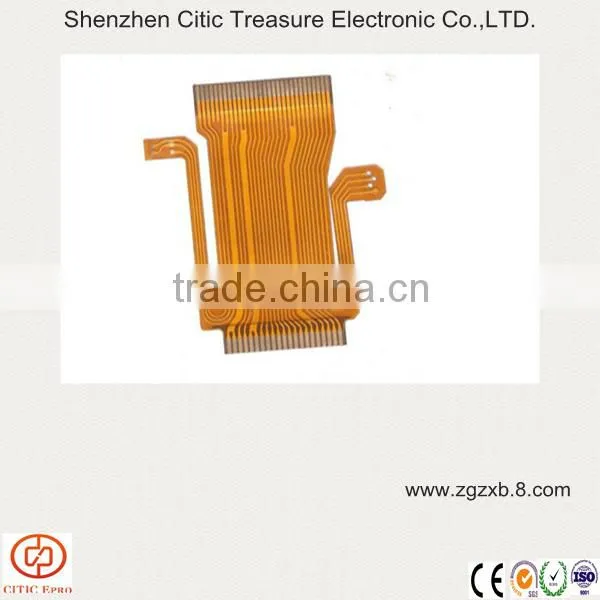

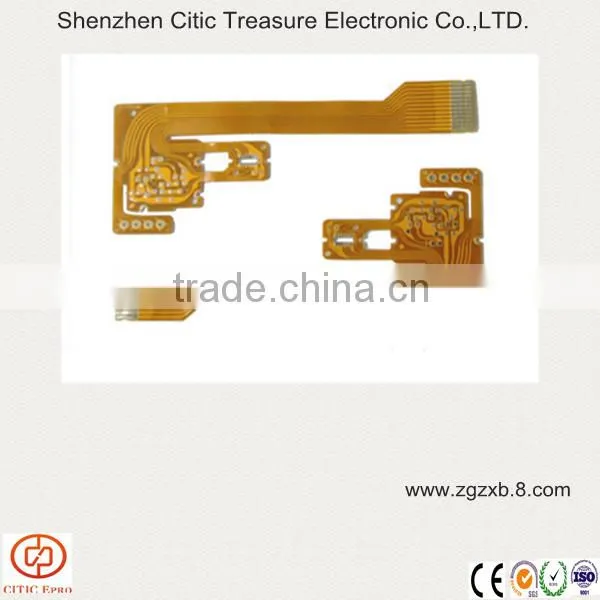

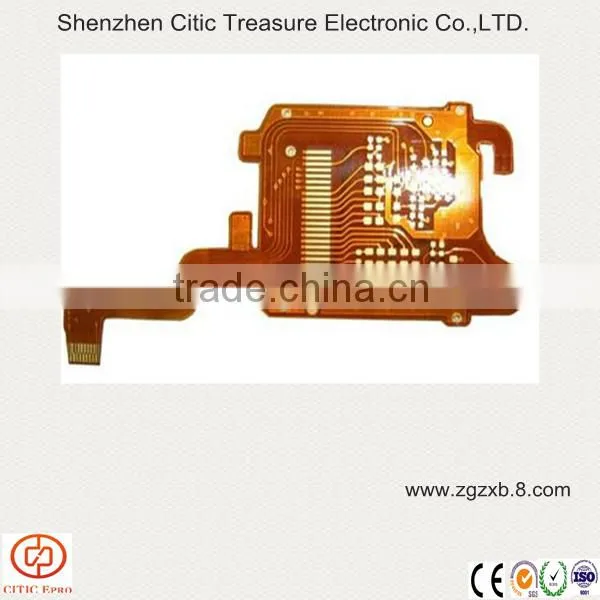

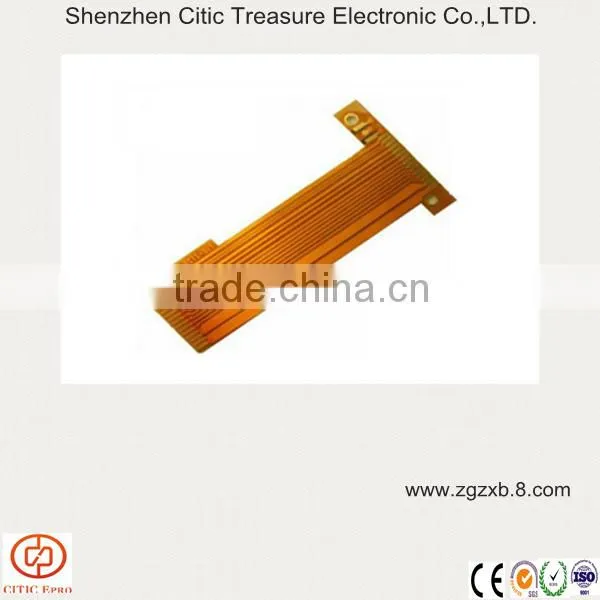

Printed circuit board FPC cable / Flexible circuit board
Description
FPC is thin, light, small and flexible, ideal for applications where the ability to bend or flex at random is necessary. It can be bent into any shape and the thickness is less than 25μm, which is quite innovated. We also provide the circuit design and component assembly services our customers.
Item |
FPC |
PCB |
Rigid Flex |
Layers |
1-8 layers |
1-38 layers |
2-4 layer |
Board Thickness |
0.05-0.5mm |
0.2-5mm |
0.3-2.2mm |
Min.line width/space |
0.04/0.04mm |
0.075/0.075mm |
0.1/0.1mm |
Min.Through Hole Size |
0.2mm |
0.25mm |
0.5mm |
PTH Hole Dia.Tolerance |
&≤0.8mm 0.05mm |
&≤0.8mm ±0.05mm |
&≤0.8mm ±0.05mm |
Solder Mask Registration Tolerance |
±0.05mm |
±0.05mm |
±0.05mm |
Min.Routing Dimension Tolerance |
±0.05mm |
±0.1mm |
±0.1mm |
Hole to edge(Hard tool/Die Cut) |
±0.1/±0.2mm |
|
|
Eege to Edge(Hard tool/Die Cut) |
±0.05/±0.2mm |
|
|
Circuit to edge(Hard tool/Die Cut) |
±0.07/±0.2mm |
|
|
Surface Treating Technology |
Electrical Flash Gold,Anti-Tarnish(OSP), |
||
Advantages
Reduced wiring errors
Elimination of mechanical connectors
Unparalleled design flexibility
Higher circuit density
More robust operating temperature range
Stronger signal quality
Improved reliability and impedance control
Size and weight reduction
Product show
Application
1. Display / Notebook PC & Tablet PC / Flat panel display
2. Smart phone / Cell Phone
3. Flat screen TV / Professional TV
4. Printer / Scanner / FAX machine / Copier
5. Sound Box / Acoustics
6. MP3, MP4
7. CD/ DVD
8. Digital camera
9. Robot / Industrial / Projector / Handy terminal / Amusement
10. Car electronics
11. Toy for children
12. AV equipment / Medical equipment / Digital measurement instrument
Trade Terms
Payment terms: T/T,Western Union,30% advance,the balance paid before shipment please
Packaging: First put in a polybag per 50 pcs usually,then packed in a big carton;According to the clients'requirements for special orders.
Shipping: By air,by sea,expressage
Company Information
ShenZhen Citic Treasure Electronic Co., LTD., is a collection of r&d, design, production, sales in the integration of professional manufacturers.
we can provide the service of customizing various FPC, such as intergrading components into complex, custom user-interface assemblies.
We can mount your FPC to a rigidbacker, housing, casing, or to additional printed circuit board assemblies. We will do what we can to help you.
Thanks for your visiting
Any interest ,please don't hesitate to contact with us
Contact :Kitty Kuang
Skype: live:sale01_133
whatsapp:+86 13047919653
