3000N Linear Actuator for Medical Bed

3000N Linear Actuator for Medical Bed thumbnail-1
3000N Linear Actuator for Medical Bed photo-1
US$ 30 - 50 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
RISESAT
Model Number:
RS-E
Contact Supplier Request Quote Chat Now
Anhui Risesat Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO/SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Anhui, China
Brand Name RISESAT
Model Number RS-E
Usage Boat, Car, Electric Bicycle, Fan, Home Appliance, Other, Boat, Car, Electric Bicycle, Fan, Home Appliance, Window
Certification CE
Type Gear Motor
Construction Permanent Magnet
Commutation Brushless
Protect Feature Waterproof
Continuous Current(A) 4A
Output Power 50W
Voltage(V) 12V/24V/36V DC

Specifications

Linear Actuator for medical Bed,
1.small apprance
2.waterproof, outside use
3.Wide range of application
4.low noise

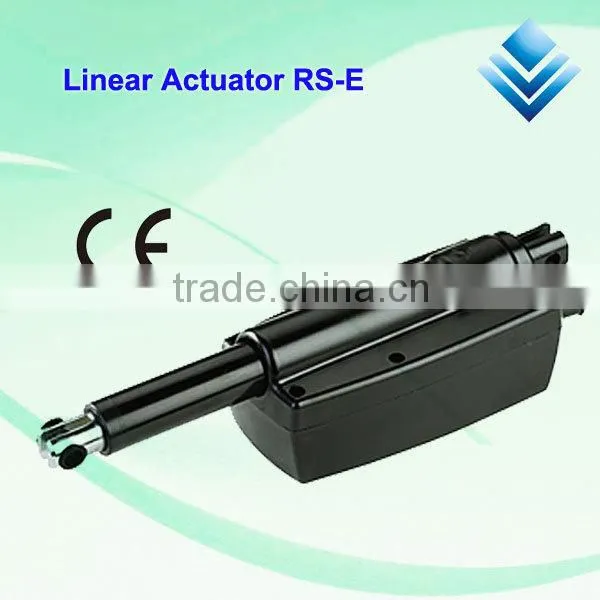

DC Linear Actuator for medical Bed RS-E

 3000N Linear Actuator for medical Bed



Features:

   24V DC permanent magnet motor

   Load Capacity: 3000N

   Speed:  5-30mm/s

   Stroke length: 100mm to 600mm (Option)

   Min. Install dimension:  S+160mm

   Duty cycle: 10% (S2-10min)

   Color: Black

   High-Strength Plastic housing protects motor and gear

   Strong wear and corrosion resistant stainless steel inner tube

   Elegant and compact design with small installation dimensions

   Steel piston rod eye

   Ambient temperature: -26°C to +65°C

   Protection Class: IP54





Options:

   Protection class: IP66

   0.2/0.4m coiled cable with DIN or Jack plug

   Back fixture position 00 or 900

   Steel groove piston rod eye

   Can install overload protection circuit inside





Basic Installation Dimension:



Actuator Stroke (mm)

100

150

200

250

300

Basic Installation Stroke(mm)

260

310

360

410

460

Stretch Stroke (mm)

360

460

560

660

760



Notice: If stroke is less than 100mm, all basic installation dimension are 288mm.

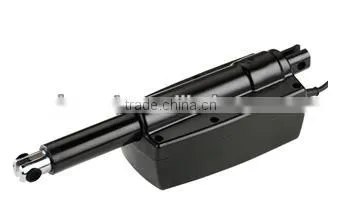

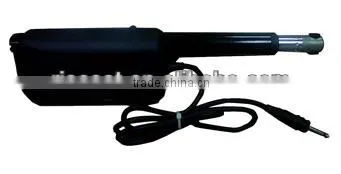

3000N Linear Actuator for medical Bed

3000N Linear Actuator for medical Bed

 3000N Linear Actuator for medical Bed

3000N Linear Actuator for medical Bed
