Multi Grade Ku Band LNB Factory Price

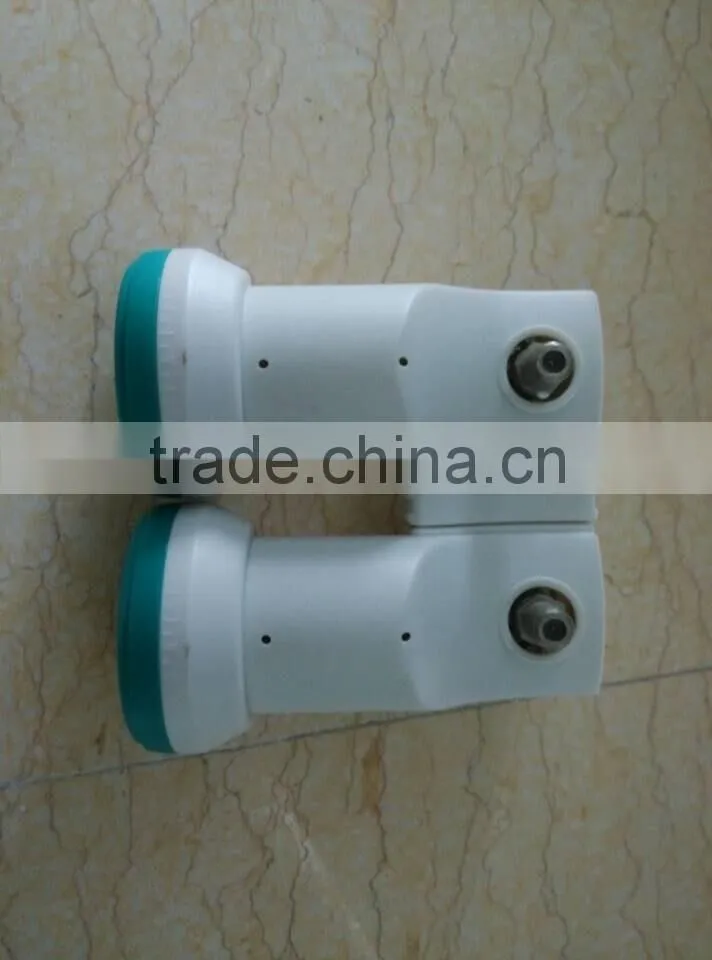

Name: Multi Grade Ku Band LNB Factory Price
Brand: Risesat
SKU: 126335807

US$ 1 - 3.16 MOQ: 1000 Pieces

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Risesat

Model Number:

RS-901

Anhui Risesat Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Risesat

Model Number RS-901

Specifications

Multi Grade Ku-Band Best LNB
1.ku band lnb frequency:10.7-12.75
2.lnb lowest factory price best quality

ANHUI RISESAT ELECTRONIC CO.,LTD

Multi Grade Ku Band LNB factory price

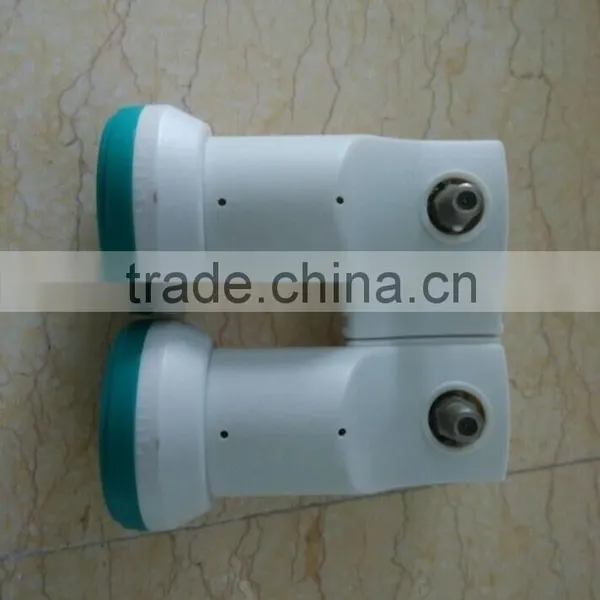

Product Description

Simplest solution to achieve use one dish to receive two satellite signal simultaneously

2.Low noise figure

3.HD ready

4.Low power consumption

5.High quality weather protection

Item	Specification	Item	Specification
Input Frequency Range	Low Band:10.70~11.70GHz High Band:11.70~12.75GHz	L.O. Phase Noise	-50dBc/Hz@1KHz -75dBc/Hz@10KHz -95dBc/Hz@100KHz
Output Frequency Range	Low Band:950~1950MHz High Band:1100~2150MHz	Image Rejection	40dB(Min.)
Noise Figure	Low Band:0.6dB(Typ.) High Band:0.6dB(Typ.)	Output VSWR	2.0:1(Max.)
Conversion Gain	60dB(Typ.)	Output Power	0dBm (Min.)(at 1dB gain compression)
Gain Flatness	±0.5dB/26MHz	Connector Type	75Ω Female Connector
Cross POL. Isolation	25dB(Typ.)	DC Current Consumption	80mA(Typ.)
L.O. Frequency	Low Band:9.75GHz High Band:10.60GHz	Low/High Band Switching	Low Band:0Hz High Band:22KHz±4KHz
L.O. Frequency Stability	±1.0MHz(Max.)@+25°C ±2.0MHz(Max.)@-30°C~+70°C	POL. Switching Voltage	10.5~14.0V @VP 16.0~20.0V @HP
Operating Temperature	-30°C~+70°C	Adjustable Distance Range	0~37mm
