Help CenterThin Film Heating Element Waterproof Polyimide Heater 12V 24V 110V 220V
Related Products
-
Flexible 12v Polyimide Thin Film Heating ElementUS$ 0.15 - 10MOQ: 10 Pieces -
The Lowest Price for Kapton Heater for Puppy PadUS$ 0.15 - 10MOQ: 10 Pieces
-
Polyimide Film Heater for Warm HandsUS$ 0.15 - 10MOQ: 10 Pieces
-
Industrial Polyimide Adhesive Film Heater for Plastic MouldingUS$ 0.15 - 10MOQ: 10 Pieces
-
Polyimide Thin Film Heater for Mouse MatUS$ 0.15 - 10MOQ: 10 Pieces
| Specifications |
| 1)Kapton heateris a variety of shapes, sizes, and wattages. . |
| 2)Working temperature: -200c - 200c |
| 3) flexible kapton heater |
Kapton Heater Description:
Kapton insulated heaters are available in a variety of shapes, sizes, and wattages. Polyimide Film offers a high degree of resistance to chemicals, and has excellent outgasing properties in high vacuum environments.
Polyimide is an organic polymer with very high dielectric capability and thin profile, while providing superior resistance to most solvents, oils, and radiation. In connection with these features, kapton heater is very ideal for applications with space and weight limitation, or where the heater will be exposed to chemical or oil.

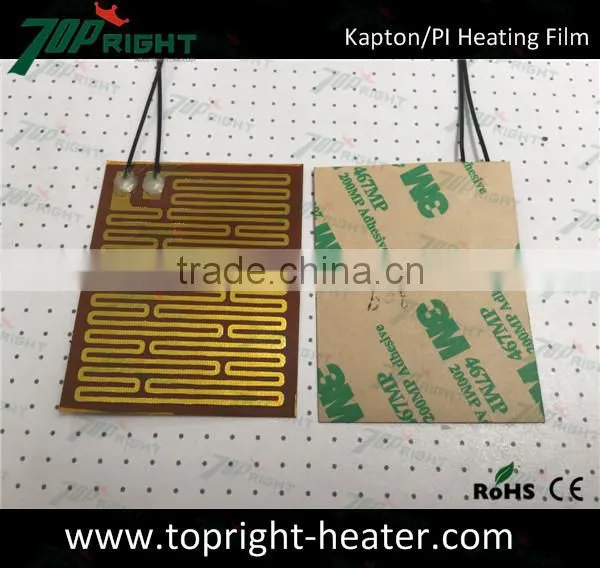

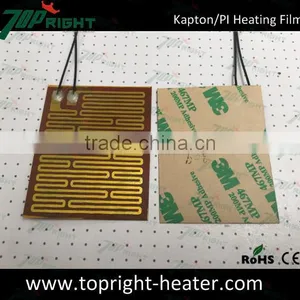

Kapton heater also allows easy visual inspection on the internal structures. Pressure-sensitive adhesive (PSA) backing surface is standard, but special adhesives or mounting holes can be customized as customer requirement.
Specification of Polyimide (kapton) Heaters:
- Working voltage: 12 - 400V
- Working temperature: -200°C - 200°C
- Watt density: 1.1-6.5w/cm2
- Mounting: PSA or mechanical
- Max. size: 500x600mm
- Thickness: ≤0.25mm
- Exit: teflon, kapton or silicone insulated leads

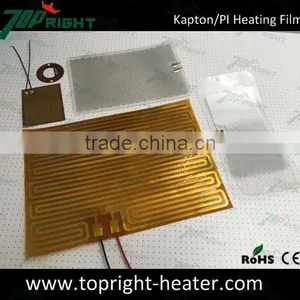

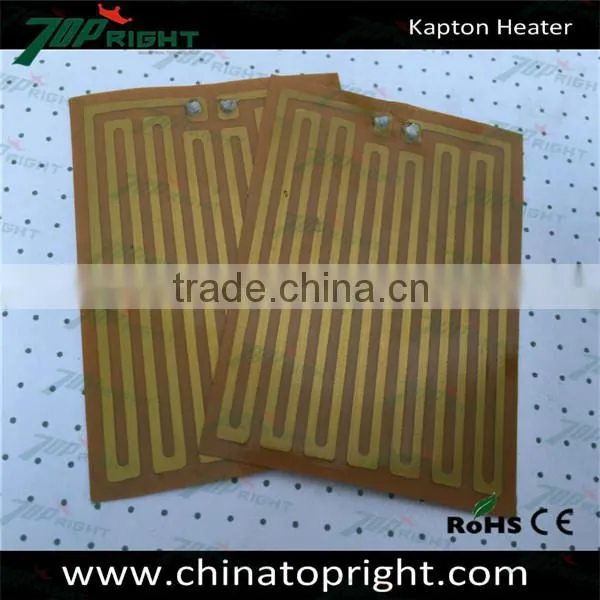

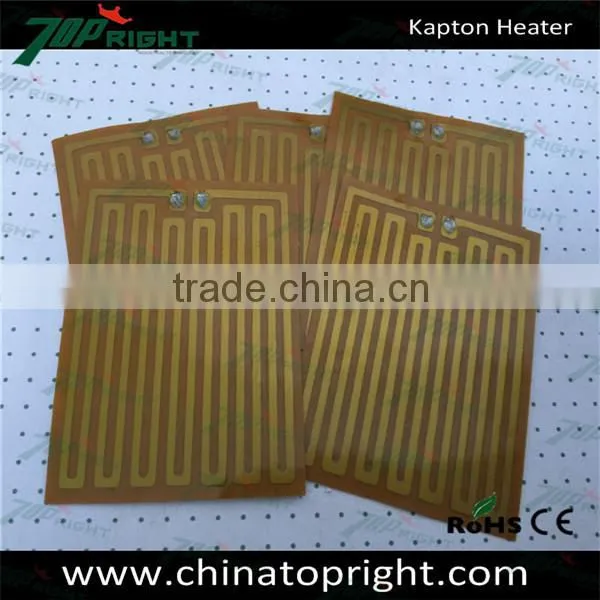

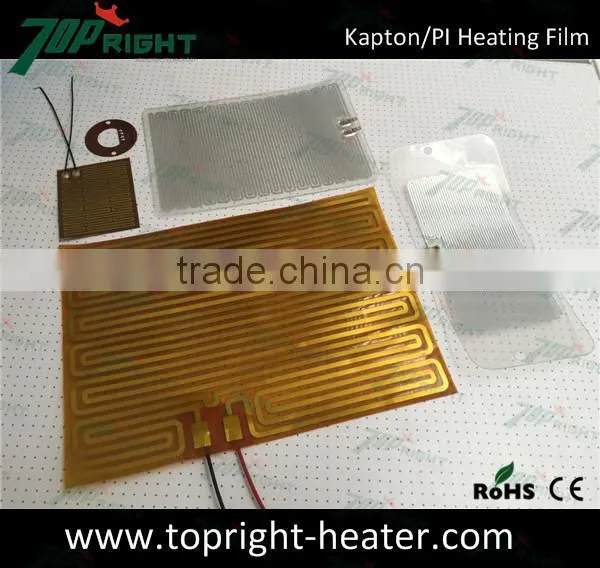

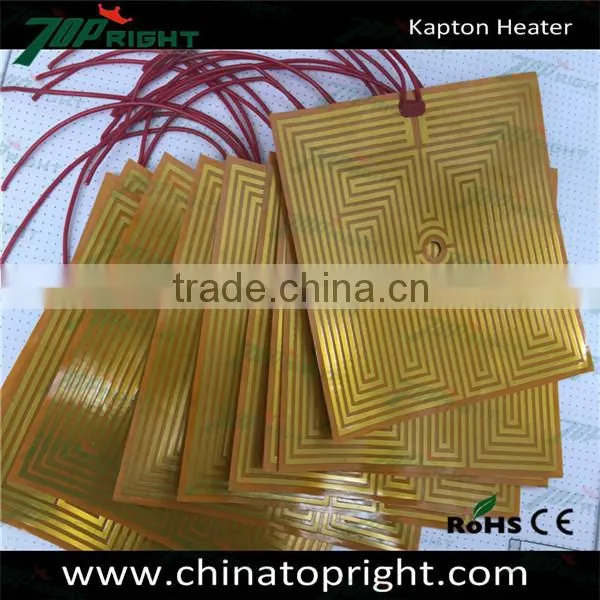

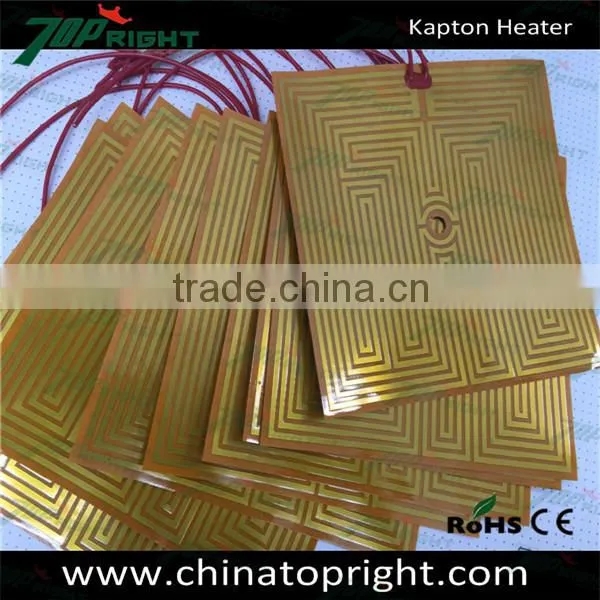

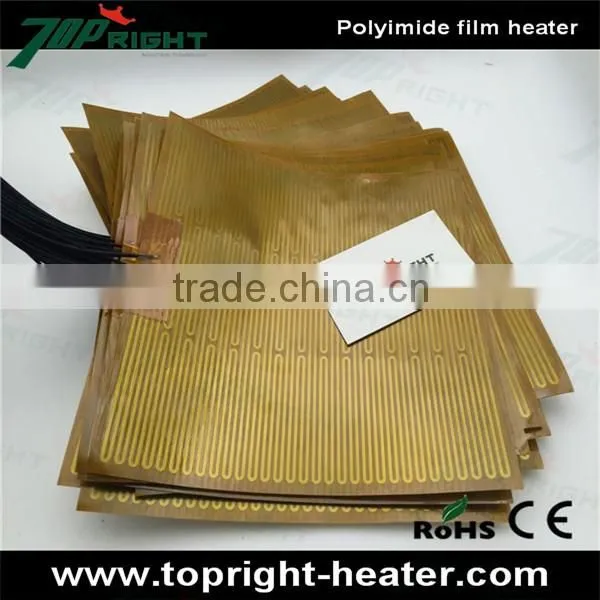

Kapton (polyimide) heaters Photos:
NO. |
Description |
Parameter |
1. |
Certification |
CE and Rohs |
2. |
Voltage range |
1.5v~400v |
3. |
Power density range |
0.03w/cm2~2.5w/cm2(0.19w/inch2~16.13w/inch2) |
4. |
Using temperature range |
-60~200°C(-140~392°F) |
5. |
Width range |
10mm~500mm(0.39"~19.68") |
6. |
Length range |
10mm~1800mm(0.39"~70.86") |
7. |
Thickness range |
Standard:0.126~0.266mm(0.005"~0.01") |
8. |
Plug |
Chinese,British, American, European and so on |
9. |
Quality guarantee |
1 year |
10. |
Life |
more than 4 years(normal useful) |
11. |
MOQ |
1 piece |
OEM and ODM is welcome,can print your logo | ||
Application of kapton heaters:
- Medical diagnostic instruments: Heat sample trays, reagent bottles, etc.
- Stabilize optoelectronic components
- Test or simulate integrated circuits
- Enable cold weather operation of outdoor electronics such as laptap, ATM, LCD’s
- Protect aircraft electronic and mechanical devices in cold weather / area.
How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Topright continuously strive to find ways of reducing our production costs, and passing the savings over to you.Superior quality, stylish designs, competitive price and perfect service won us honorable customers.Topright service includes regular and thorough inspections throughout the manufacturing process, eliminating the need to employ additional quality control inspectors.
Order Guide:
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3. Topright sales send the Proforma Invoice with Topright seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5.Initial Production Stage-Inform the clients that we have got the payment,And will make the products according to your request,. After getting the sample or drawing approval, we inform that we will arrange the production & inform the estimated time. |
6. If possible,middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and Topright Ship the goods .Also can accept payment term-Balance against B/L Copy Or L/C payment Term which we discussed. Inform the tracking number and check the status for clients. |
RAQ:
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yancheng City, Jiangsu Province, China, about 4 hours bus ride from Shanghai .All our clients, from home or abroad, are warmly welcome to visit us.
3.What type of payment do you have available?
A:We accept TT and L/C,as sample order,the Western union,Money gram and Aliexpress is available.
4.How can I get some samples?
We are honored to offer you samples.
5.How does your factory do regarding quality control?
"Quality is in my hand,customer in our heart”. Topright people always attach great importance to quality controlling from the very beginning to the very end.
Welcome to contact us for more details ,most competitive price for you!
