UHF Four-dipole Transmitting Antenna

UHF Four-dipole Transmitting Antenna thumbnail-1
UHF Four-dipole Transmitting Antenna thumbnail-2
UHF Four-dipole Transmitting Antenna thumbnail-3
UHF Four-dipole Transmitting Antenna photo-1
UHF Four-dipole Transmitting Antenna photo-2
UHF Four-dipole Transmitting Antenna photo-3
US$ 1,000 - 11,111 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangxi, China
Brand Name:
CEKE
Model Number:
4-layer
Contact Supplier Request Quote Chat Now
Guilin CEKE Communication Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangxi, China
Brand Name CEKE
Model Number 4-layer

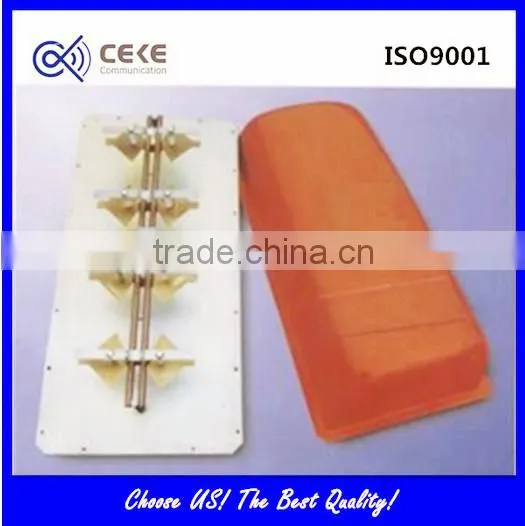

Product appearance

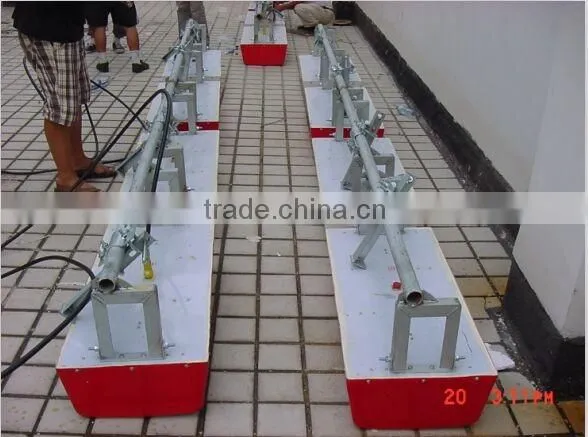

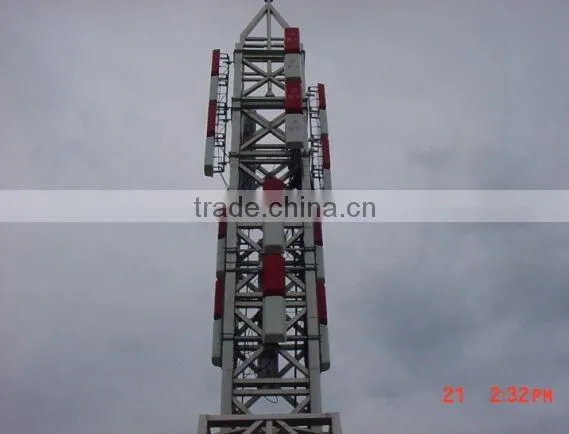

UHF Four-dipole transmitting antennaUHF Four-dipole transmitting antenna







Technical Specifications

Technical Specifications

n Oscillator using the silver-plated copper material, corrosion performance, the match ability is good.

n The outer cover using the high-quality FRP material,good corrosion resistance, high strength.

n High gain, good water resistance.

n Large range AGC control circuit (50dB), high-precision ALC compensation function, ensure the output power stability when external signal large changes.

n Complete intallation auxiliary materials, easy to install.

n Power divider uses finely drawn brass tube, inner conductor silver uses silver-plated copper material, flange interface uses nickel-plated copper material.



Indicators

Parameters

Unit

Channel   range

470~860

MHZ

Gain

9.5(two-four)   12.5(four-four) 14(six-four)

dBi

Polarization

Horizontal   or vertical polarization



Power   capacity

0.1~50

KW

VSWR

Veneer   antenna≤1.10 Branch cable≤1.05 Overall system index≤1.08



Impedance

50

Ω

Wind   load

>200

KM/h

Temperature   range

-60~ +80

℃

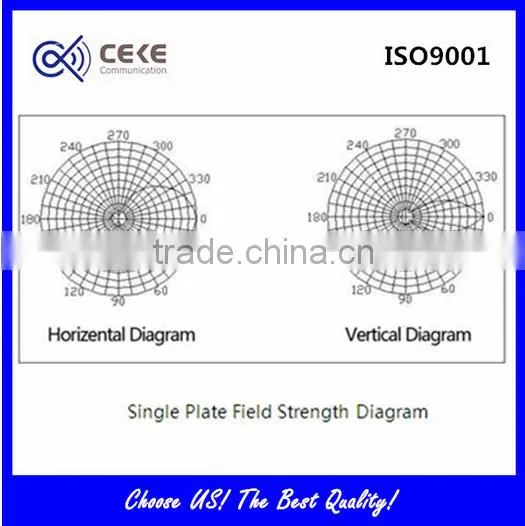

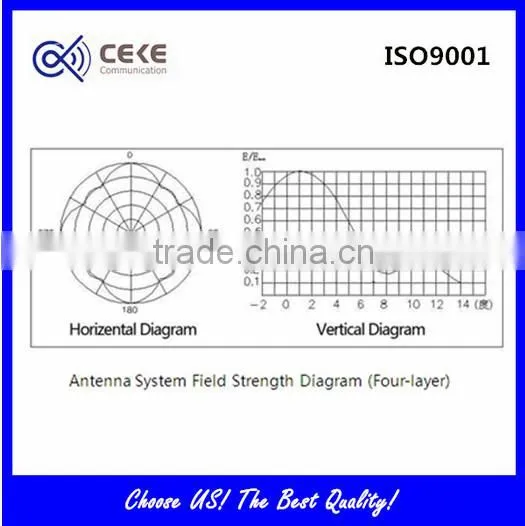

Antenna   pattern

Horizontal   pattern: roundness≤ +3 dB

Vertical   pattern: beam declination: 0.5-1 °



The   first zero filling

>10%
