Help Center3103 IP Multiplexer for TV Signal
Related Products
Outline
3103 IP multiplexer is a professional TS processor used in digital TV broadcasting head-end system. It receives up to 512 IP (SPTS/MPTS) channels and multiplexes the input programs into 2 TS stream output with EPG (electronic program guide), CA (conditional access), data broadcasting and etc inserted.
For easy management, it can be controlled and upgraded via web server in addition to front panel keyboard. Its high integration and cost effective design have made it widely used in the CATV Broadcasting system.
Key Features
* Fully complying with ISO13818 and EN300 468 standard
* 512 IP (SPTS/MPTS) input over UDP
* 2 independent groups of ASI output (each group has 2 ports)
* 2 IP output over UDP
* Support accurate PCR adjusting
* Support PID passthrough, re-mapping, multiplex up to 2048 PIDs per out channel
* Support PSI/SI rebuilding and editing
* Huge buffer memory for saving the overflowing code stream
* LCD/keyboard and Web-based NMS management

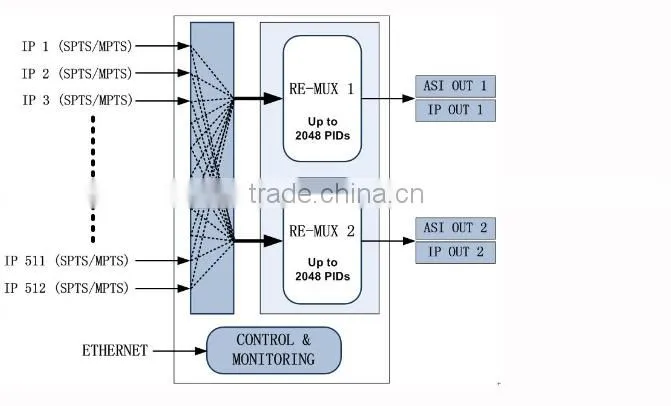

Principle Chart
Specifications
Input |
IP (RJ45,GE) |
512 x MPTS/SPTS, Unitcast/Multicast, UDP Protocol IGMP V2/V3 |
Re-multiplex |
PID re-mapping (auto or manually available) |
|
PCR accurate adjusting | ||
Automatic generating PSI/SI table | ||
PID passthrough | ||
Support multiplex maximum 2048 PIDs each output channel | ||
Output port |
ASI |
2 x independent channels of ASI output (each channel has 2 ports) (up to 210Mbps) |
IP(RJ45,GE) |
2 x IP (Unitcast/Multicast), UDP Protocol (up to 230Mbps) |
|
NMS port |
Ethernet port |
GE |
General |
Demission |
482mmx410mmx44mm(WxLxH) |
Weight |
2.0kg |
|
Temperature |
0~45℃(operation), -20~80℃(storage) |
|
Power supply |
110VAC±10%,50/60Hz; 220VAC±10%,50/60Hz |
|
Consumption |
<25w |
|
CEKE has built a long-term and good R&D cooperative relationship with China North Industries Group 206 Institute, Guilin Institute of Automation Technology, Beijing University of Posts and Telecommunication and Guilin College of Aerospace Technology.
CEKE has passed the international ISO9001 Quality System Certification, and the digital television transmitter has passed the State Administration of Radio Film and Television (SARFT), SRRC,AQSIQ certification.
CEKE was awarded “Guilin National Microwave and Optical Communication High and New Technology Industrialization Base” by the Ministry of Science and Technology in 2011.
CEKE welcome customers sharing experience in our company, and we provide one week training for customers, including transmitter technology, engineering and maintaining regulations. We also can dispatch engineers overseas to install equipments, but customers should bear the cost of return-trip tickets, visa fees, accommodations, etc.
We are committed to provide customers with the most competitive price, one year free warranty period(Non-artificial damage) and maintenance for lifetime to enhance our long-term cooperation. For mutual benefit, we spare no efforts in satisfying our customer in every possible way.
