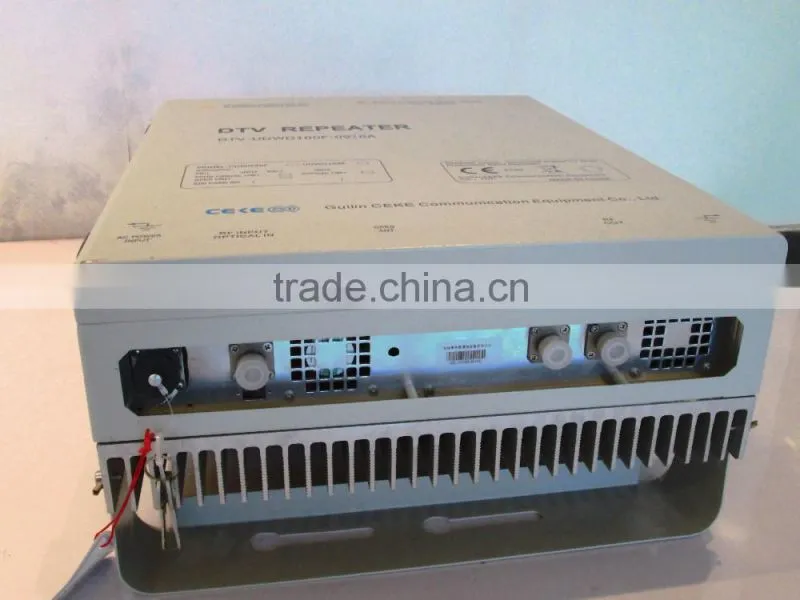

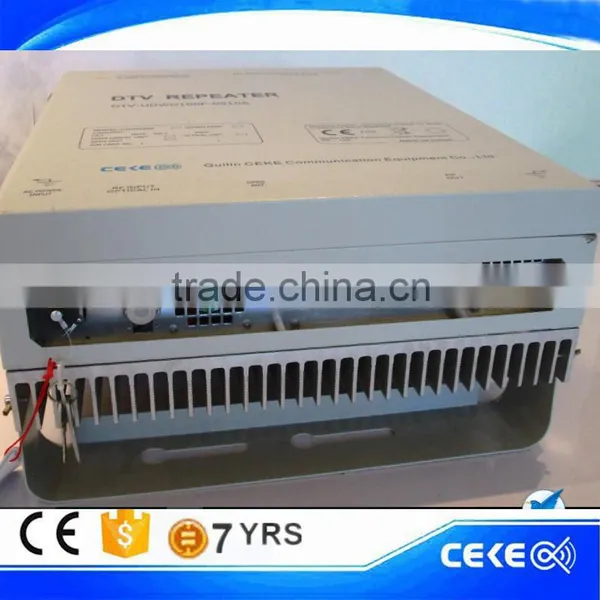

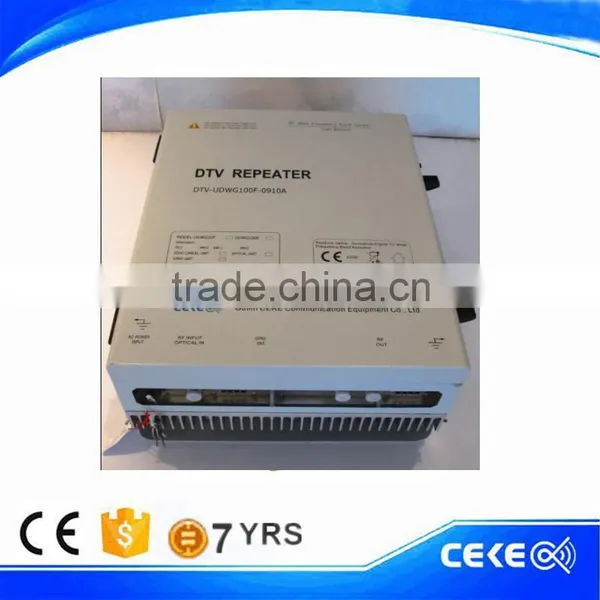

100W DTV UHF Repeater
CKUDW-G100
Main Features
Main Features
n The wild-type waterproof design, simple and attractive appearance, suitable for outdoor work
n Support all standard digital TV, mobile TV signal transmission and Signal complement point, support single spectrum and wide-band (multi-spectral) amplification
n Patented RF delay technology. Avoid the interference with multi-point signal cross-coverage.
n Large range AGC control circuit (50dB), high-precision ALC compensation function, ensures the output power stability when external signal large changes.
n Complete protection functions: self-excitation protection, overload protection, signal fast impact protection, power protection, temperature control protection, password security control.
n Microcomputer control, support remote debugging and monitoring after equipped with communication module (GPRS)
n Equipment Customization: optical input type, microwave input type,
n Single Frequency Network Delay Adjustable
specification
|
Parameters |
Symbol |
Min |
Typ. |
Max |
Unit |
|
Input and output frequency range |
FOUT |
470 |
Any 100MHz |
862 |
MHz |
|
Frequency conversion gain flatness over all bandwidth |
DGa |
|
1 |
2 |
dB |
|
Frequency conversion gain flatness over 8MHz bandwidth |
DG8MHz |
|
0.3 |
0.5 |
dB |
|
Noise figure |
Nf |
|
3.0 |
6.0 |
dB |
|
Input signal level |
PIN |
37 |
|
107 |
dBmV |
|
ALC voltage control range |
DGALC |
15 |
20 |
|
dB |
|
Output power stability(ALC on) |
DPOUT |
|
|
1 |
% |
|
Out-band harmonic level (external filter connection) |
H |
|
|
-61 |
dBc |
|
In-band spurious signal level |
Spur |
|
|
-46 |
dBc |
|
Input port return loss |
RLIN |
15 |
|
|
dB |
|
Output port return loss |
RLOUT |
17 |
|
|
dB |
|
Average digital output power |
PAVG |
|
37~43 |
|
dBm |
Spectrum shoulder distance@fcenter±4.2MHz |
Shoulder |
- 36 |
- 40 |
|
dB |
|
Single frequency MER |
MER |
32 |
40(pre-correction) |
|
dB |
|
Mean operating time without malfunction |
MTBF |
45000 |
|
|
hour |
Spectrum characteristic |
Conform to the GY/T220.1—2006.5.9.3 spectrum model requirement |
||||
input port impedance/connector |
50W/SMA-50K |
||||
Output port impedance/connector |
50W/ L16-K |
||||
-20dB Input test port impedance/connector |
50W/BNC |
||||
-50dB Output monitoring port impedance/connector |
50W/SMA-K |
||||
status display |
LCD Display Screen / function key/ LED |
||||
local monitoring port connector |
RJ-45 (10 Base-T) / DB-9J(RS-232) |
||||
Wireless remote monitoring port connector |
DB-(9J(RS-23optional) |
||||
Power supply |
AC220V±20%,45Hz-60Hz; AC110V±20%,45Hz-60Hz; AC60V±20%,45Hz-60Hz(Optional) |
||||
Power supply connector |
IEC320 |
||||
Cooling system |
temperature-controlled forced air cooling |
||||
Operating temperature range |
-10 ~ +50°C |
||||
Operating humidity |
0 ~ 95%, non-condensing |
||||
Storage temperature |
-55 ~ +85°C |
||||
Storage relative humidity |
0 ~ 95%, non-condensing |
||||
ize(W´H´D)/Weight |
305mm × 465mm × 189mm /10.5kg |
||||
