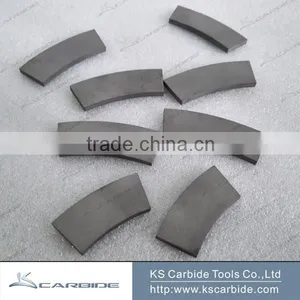

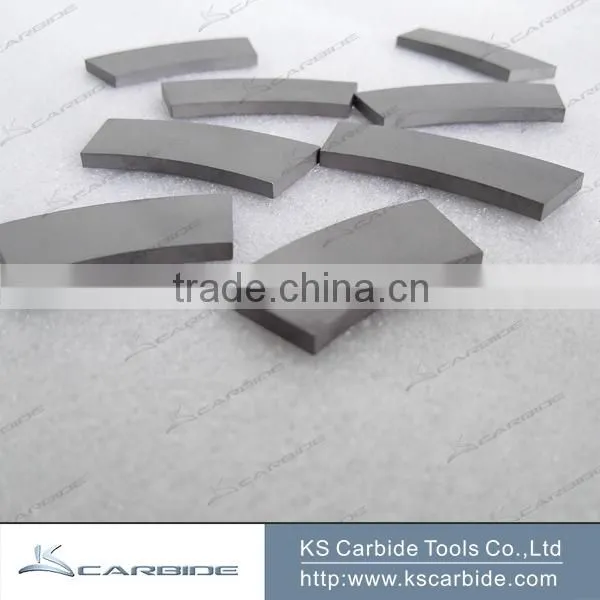

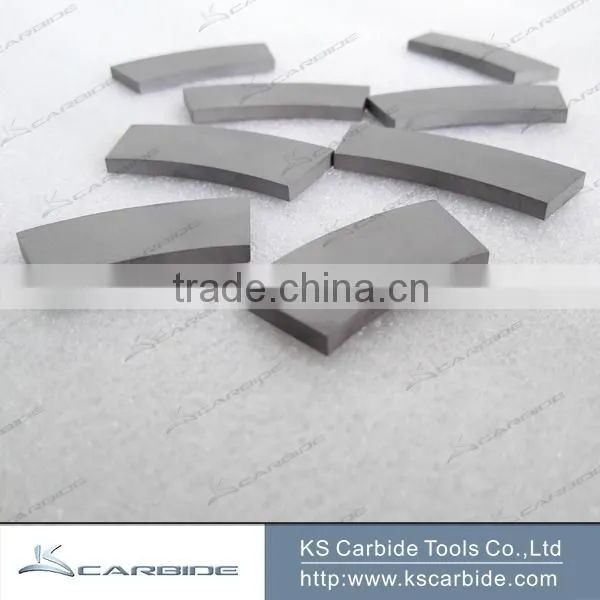

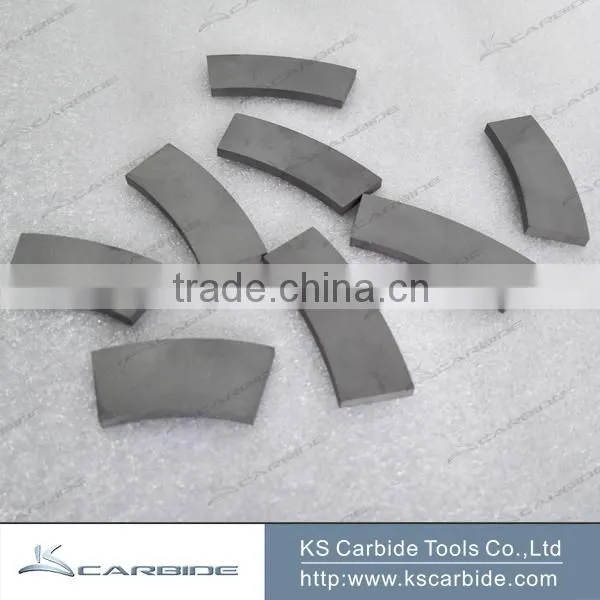

Tungsten Carbide Segments

Name: Tungsten Carbide Segments
Brand: KS Carbide
SKU: 126426765

US$ 50 - 70 MOQ: 10 Pieces

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

KS Carbide

Model Number:

Customized

Chengdu KS Carbide Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name KS Carbide

Model Number Customized

Alloy Specification YG6X YG8 YG10C

Particle 0.6-1.2um

Product Description

Grade	Density g/cm3	TRS MPa	Hardness HRA	Performance & application recommended
YG4C	15.10	1800	90.0	Mainly used as small buttons for percussion bits to cut soft and medium hard formations.
YG6	14.95	1900	90.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YG8	14.80	2200	89.5	For coring crowns, electric coal drill bits, coal cutting picks, oil cone bits and scraping knife bits, used in geological prospecting, coal mining and oil well boring.
YK05	14.95	2500	90.5	Mostly used as the buttons of small and medium sized percussion bits and as the inserts of rotary prospecting bits to cut soft and medium hard formations.
YG8C	14.80	2400	88.5
YK15	14.60	2450	87.6	Suitable to strips, conical buttons for rotary percussion-resistant, geological prospection buttons, cut soft and medium hard formations.
YK20	14.40	2500	86.8	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and hard formations.
YK25	14.40	2550	87.2	Primarily for the buttons and inserts of rotary percussion bits to cut medium-hard and very hard formations.
YG11C	14.40	2700	86.5	Largely for the inserts and buttons of percussion bits and tricone bits to cut medium-hard, hard, and very hard formations.
YG13C	14.2	2850	86.0	Primarily for the buttons of tricone bits and inserts of rotary percussion bits to cut hard and very hard formations.
YG15C	14.0	3000	85.5	For oil cone drill bits, for medium soft and medium-hard rocks.
