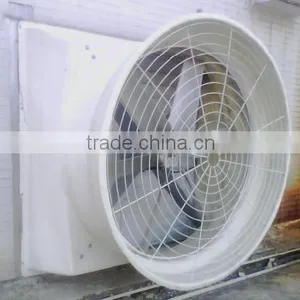

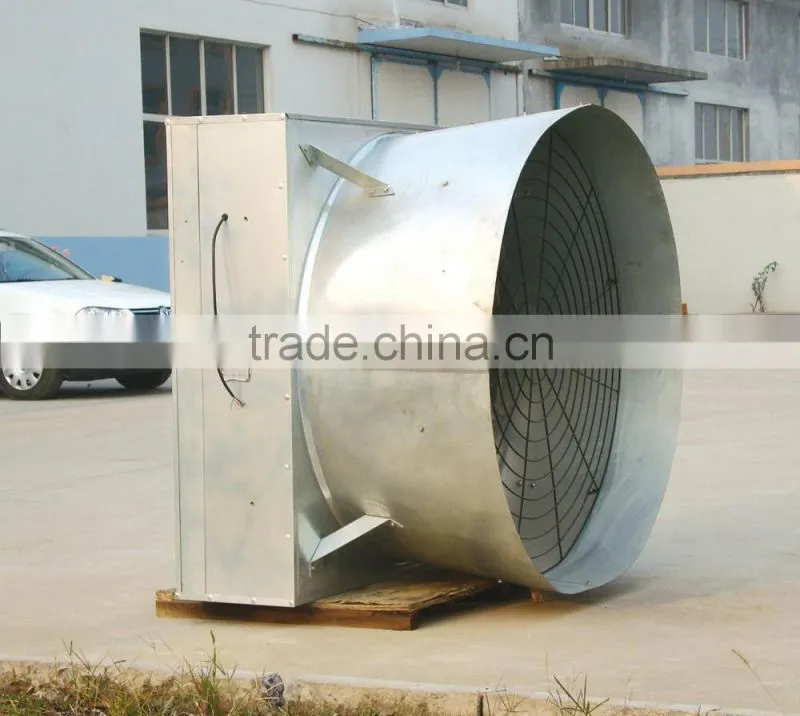

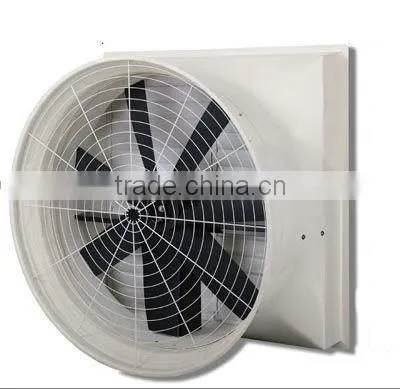

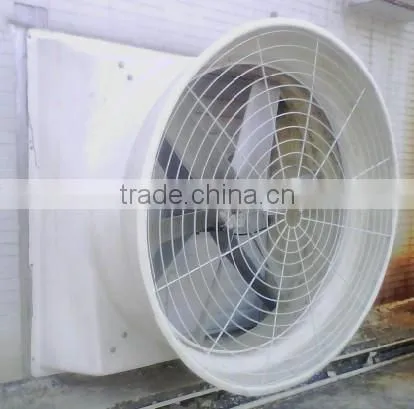

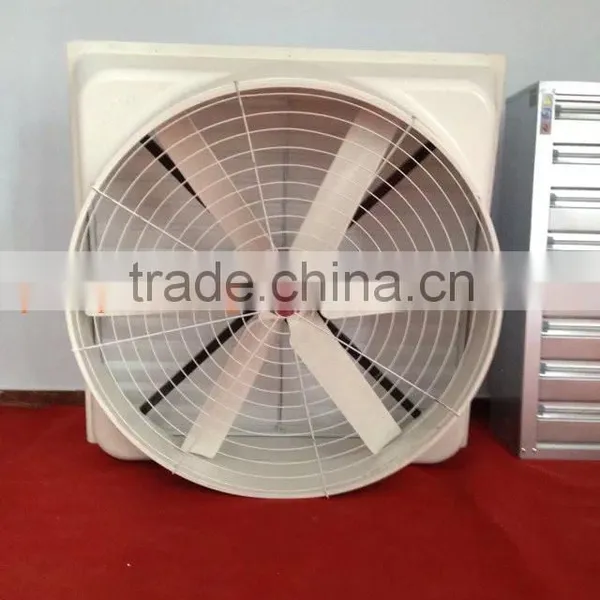

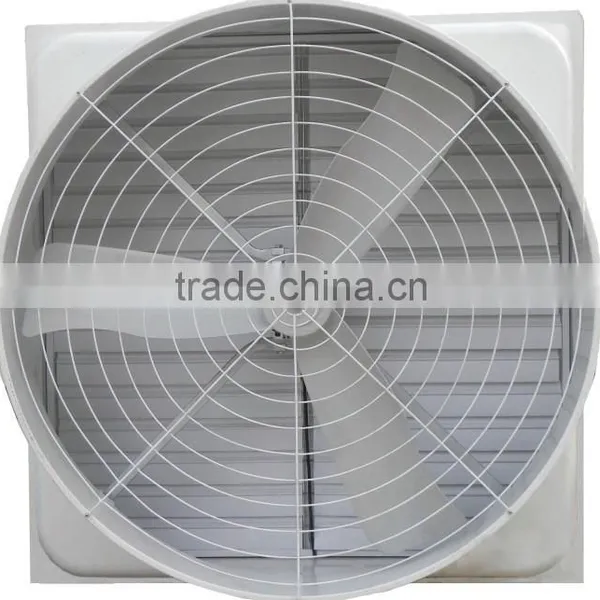

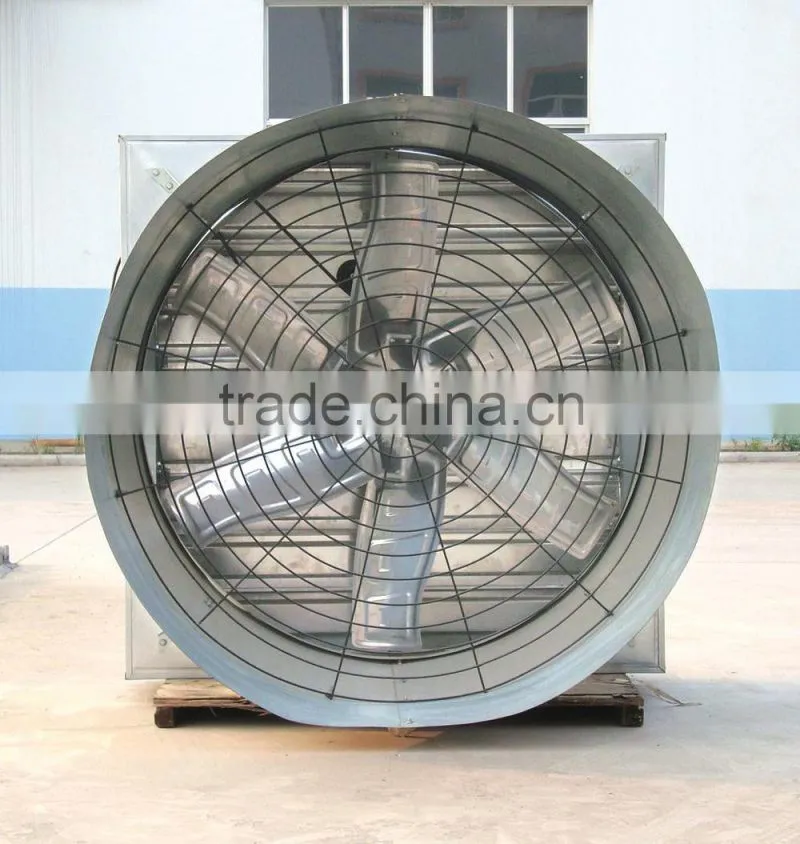

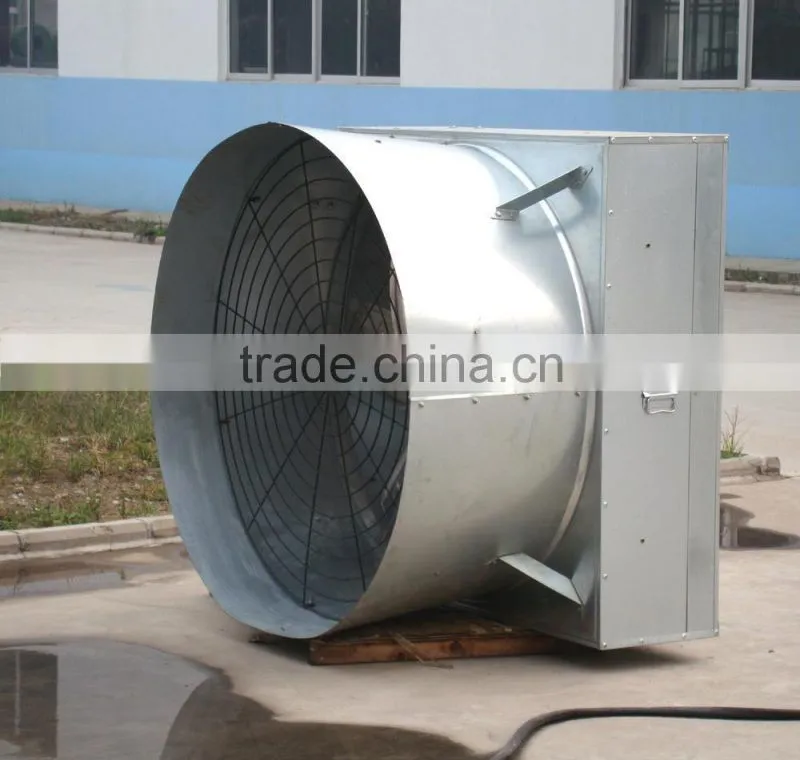

Help CenterPortable Kitchen Exhaust Fan
Related Products
model |
Diameter(mm) |
Biades(rpm) |
Air flow(m³/h) |
Power(w) |
Voltage(v) |
Heigh width thickness |
||
FTC-760 |
600 |
960 |
9000 |
370 |
380 |
760×760×190 |
||
FTC-1060 |
900 |
700 |
33000 |
550 |
380 |
1060×1060×550 |
||
FTC-1160 |
950 |
600 |
35000 |
550 |
380 |
1060×1060×550 |
||
FTC-1260 |
1050 |
600 |
38000 |
550 |
380 |
1260×1260×550 |
||
FTC-1460 |
1220 |
400 |
46500 |
750 |
380 |
1460×1460×600 |
||
|
Both Chinese famouse moter and Siemens moter are avaliable.Moter voltage and frequency could be customized.Chinese famous motor,special design for fan,the frist one put forward phase lack protection device which could power off when shaortage of electricity.Motor protection grade IP55,insulation Class:Grade F |
|||||||
|
Belts are Japanese Mitsubishi brand, ensure the long service life, maintenance free. |
|||||||
|
Fan bearing adopts imported double-row bearing with special waterproof design, water can’t enter. High strength, lower noise, maintenance free and long service life. |
|||||||
Performance characteristics:
1. Reasonable cone designing, low noise, big air flow,strong ventilation, low operating cost;
2. Imported bearing, high-strength, low noise, durable;
3. Using air downstream principle, pvc shutter or aluminum shutter, antioxidant, light weight, no distortion, open and close sweetly, prevent backflow of air;
4. High-strength more high-gluten strength aluminum-magnesium alloy wheel, light weight, high strength, toughness good;
5. 6 pcs stainless steel blades, no distortion, no breaking, aesthetic durability;
6. There are two types of fan house, slant wall type, upright wall type, could satisfy varieties need
of different customers;
7. The high efficient and energy-saving motor passed the national CCC certification. Also
protection class:IP55, insulation class: F grade.
Advantage:
1.Fan housing: strength fiberglass.
2.Shutters: good plastic
3.Fan Propeller: 6pcs or 3pcs blades of propeller made by mould pressing.
4.Motor: Die casting aluminum body & Die casting iron body for options, good for heat transfer and l Low noise. With over-load protection inside.
5.Bearing: Imported auto bearing to ensure stable operation for the fan propeller and low noise.
6.Cable outlet: The cable outlet is on the back of the fan, it makes the fan with more convenience for installation.
Our Services
I: Quality |
Our ventilator are good quality and favorable price |
II: Agent Service |
Please contact me directly if you want to being our ventilator agent |
III: Quick Response |
|
If you have any problem about the ventilator, we will response in 12hours by email, tel or fax. |
IV: Training & Warranty service |
|
We provide customers free ventilator training in our factory. We offer one year warranty & lifelong service.Some of products have two years warranty. |
