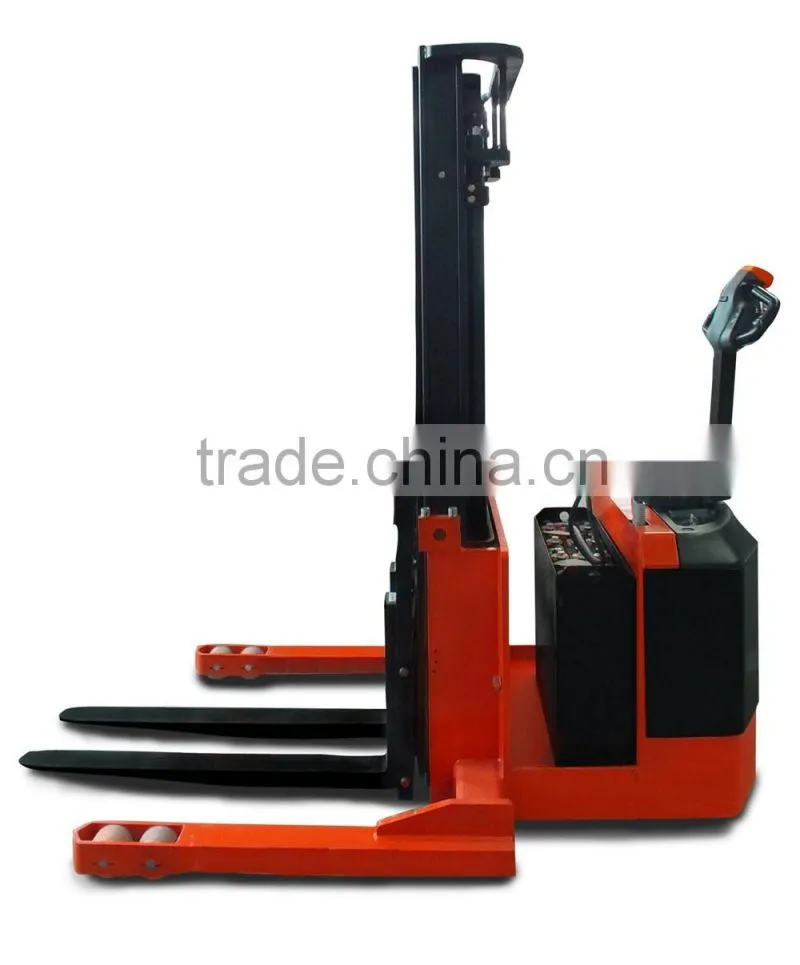

Straddle Legs Electric Stacker 1.4/1.8Ton With Anti-rolling Back Brake
US$ 6,000 - 6,000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
VLIFT
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai qingdao ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Stacker 1.2/1.5Ton Special Design For Narrow Aisle and Non-standard PalletsUS$ 6,500 - 6,500MOQ: 1 Piece -
Electric Stacker 1.2Ton 1.5TonUS$ 4,500 - 4,500MOQ: 1 Set
-
1.5 Ton Electric Reach Stackers Truck, Max. Lift Height 7400mmUS$ 13,700 - 15,700MOQ: 1 Set
-
2 Ton Electric Reach Stackers Truck, Max. Lift Height 9500 mmUS$ 17,000 - 19,500MOQ: 1 Set
-
2 Ton Electric Reach Stackers Truck, Max. Lift Height 12000 mmUS$ 21,000 - 23,000MOQ: 1 Set
Condition
New
Place of Origin
Jiangsu, China
Brand Name
VLIFT
Model Number
ES18-40WA electric stacker
Type
Other, electric stacker
Power Souce
DC Motor
Rated Loading Capacity
1400kg 1800kg
Max. Lifting Height
3565/4125/4515mm
Min. Lifting Height
1828/2108/2303mm
Fork Length
1067mm
Fork Width
100mm
Overall Dimensions
1948*1420mm(L*W)
Certification
ISO Certificate
After-sales Service Provided
Engineers available to service machinery overseas

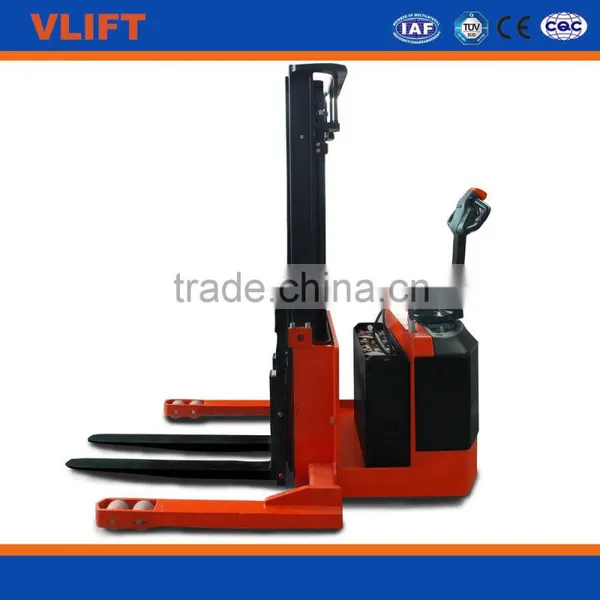

Straddle legs Electric Stacker 1.4/1.8Ton
| 1.1 | Manufacturer | Vlift | ||
| 1.2 | Model designation | ES14-30WA | ES18-40WA | |
| 1.3 | Drive unit | Battery | Battery | |
| 1.4 | Operator type | Walkie | Walkie | |
| 1.5 | Load capacity | Q (kg) | 1400 | 1800 |
| 1.6 | Load center | c (mm) | 600 | 600 |
| 1.9 | Wheelbase | y (mm) | 1350 | 1455 |
| Weights | ||||
| 2.1 | Service weight (Incl. battery) | kg | 990 | 1050 |
| Wheels, Chassis | ||||
| 3.1 | Tyre type | PU/ PU | PU/ PU | |
| 3.2 | Tyre size, operator side | mm | Φ230× 75 | Φ230× 75 |
| 3.3 | Tyre size, load side | mm | Φ102× 73 | Φ102× 73 |
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x+2/ 4 | 1x+2/ 4 | |
| 3.6 | Tread, load side | b11 (mm) | 1170/1270/1370 | 1170 |
| Dimensions | ||||
| 4.1 | Height, mast lowered | h1 (mm) | 1828/2108/2303 | 1828/2108/2303 |
| 4.2 | Free lift | h2 (mm) | 150 | 150 |
| 4.3 | Lift height | h3 (mm) | 2600/3160/3550 | 2600/3160/3550 |
| 4.4 | Height, mast extended | h4 (mm) | 3565/4125/4515 | 3565/4125/4515 |
| 4.5 | Height of tiller arm in operating position, min/ max | h14 (mm) | 990/ 1500 | 990/ 1500 |
| 4.6 | Height of straddle arms or load wheel casing | h8 (mm) | 100 | 100 |
| 4.7 | Fork height, lowered | h13 (mm) | 50~75 | 55~80 |
| 4.8 | Overall length | L1 (mm) | 1966 | 2071 |
| 4.9 | Length to face of forks | L2 (mm) | 740 | 740 |
| 4.21 | Overall width | b1/ b2 (mm) | 1270/1470 | 1270 |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 40/ 100/ 1067 | 45/ 100/ 1067 |
| 4.24 | Fork carriage width | b3 (mm) | 820 | 820 |
| 4.25 | Outside fork width, minimum/ maximum | b5 (mm) | 254-780 | 254-780 |
| 4.26 | Width between straddle arms | b4 (mm) | 970/1270 | 1070 |
| 4.31 | Ground clearance, center of wheelbase | m1 (mm) | 40 | 35 |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2157 | 2262 |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2197 | 2402 |
| 4.35 | Outer turning radius | Wa (mm) | 1545 | 1645 |
| Performance | ||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 5.5/ 6.0 | 4.5/ 5.0 |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.127/ 0.23 | 0.127/ 0.23 |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.26/ 0.20 | 0.26/ 0.20 |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 6/10 | 6/10 |
| 5.10 | Service brake | Electromagnetic | Electromagnetic | |
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.1 | 1.1 |
| 6.2 | Lift motor rating at S3 15% | kW | 3 | 3 |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/280 | 24/280 |
| 6.5 | Battery weight (with box) | kg | 200 | 200/484 |
| Battery compartment dimensions l/ w/ h | mm | 800X230Xopen | 800X335Xopen | |
| Battery type | ||||
| Others | ||||
| 8.1 | Type of drive control | ZAPI AC | ZAPI AC | |
