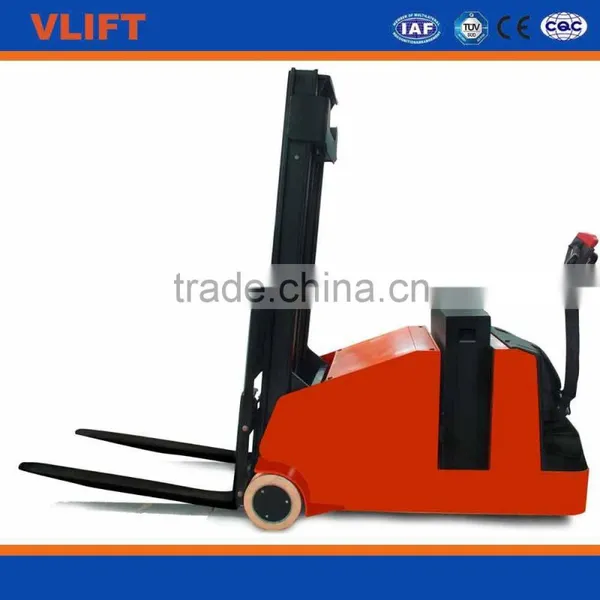

1.0t Counterbalence Full Electric Stacker

Name: 1.0t Counterbalence Full Electric Stacker
Brand: VLIFT
SKU: 126472989

US$ 5,400 - 5,400 MOQ: 1 Piece

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

VLIFT

Shanghai Vlift Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai qingdao ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name VLIFT

Model Number VS10-10CA

Type Other, electric stacker

Power Souce DC Motor

Rated Loading Capacity 1000kg

Max. Lifting Height 4215mm

Min. Lifting Height 50mm

Fork Length 1070mm

Fork Width 100mm

Overall Dimensions 2680*900mm(L*W)

Certification ISO Certificate

After-sales Service Provided Engineers available to service machinery overseas

1.0t Counterbalence full electric stacker

Counterbalance Stackers, Better for Non-standardized Pallets.

Characteristics
1.2	Model designation		VS10-10CA	VS12-12CS
1.3	Drive unit		Battery	Battery
1.4	Operator type		Walkie	Ride
1.5	Load capacity	Q (kg)	1000	1200
1.6	Load center	c (mm)	600	500
1.9	Wheelbase	y (mm)	1244	1220
Weights
2.1	Service weight (Incl. battery)	kg	1785	1750
Wheels, Chassis
3.1	Tyre type		PU/PU	PU/PU
3.2	Tyre size, operator side	mm	230× 75	230× 75
3.3	Tyre size, load side	mm	254×102	254×102
Dimensions
4.2	Height, mast lowered	h₁ (mm)	2110	2110
4.3	Free lift height	h₂ (mm)	100	100
4.4	Lift height	h₃ (mm)	3300	3300
4.5	Height, mast extended	h4 (mm)	4215	4215
4.9	Height of tiller arm in operating position, min/ max	h₁₄ (mm)	825/ 1190	950/ 1410
4.15	Fork height, lowered	h₁₃ (mm)	50	50
4.19	Overall length	l₁ (mm)	2680	2748
4.21	Overall width	b₁/ b₂ (mm)	710/900	850/910
4.22	Fork dimensions	s/ e/ l (mm)	40/ 100/ 1070	40/ 100/ 1070
4.24	Fork carriage width	b₃ (mm)	820	820
4.32	Ground clearance, center of wheelbase	m₂ (mm)	50	50
4.35	Outer turning radius	Wa (mm)	1425	1535	2055
Performance
5.1	Travel speed, laden/ unladen	km/ h	4.5/ 5.0	5.5/ 6.0
5.2	Lifting speed, laden/ unladen	m/ s	0.127/ 0.23	0.127/ 0.23
5.3	Lowering speed, laden/ unladen	m/ s	0.26/ 0.20	0.26/ 0.20
5.8	Maximum gradeability, laden/ unladen S2 5 min.	%	5.0/ 8.0	5.0/ 8.0
Drive
6.1	Drive motor rating S2 60 min.	kW	1.1	1.5
6.2	Lift motor rating at S3 15%	kW	2.2	2.2
6.4	Battery voltage/ rated capacity (5h)	V/ Ah	24/ 210	24/ 210
6.5	Battery weight (with box)	kg	200	200
	Battery compartment dimensions l/ w/ h	mm	690×230×open	800×230×open
Others
8.1	Type of drive control		ZAPI AC	ZAPI AC
8.1	Type of drive control		/	Electric Power Steering
