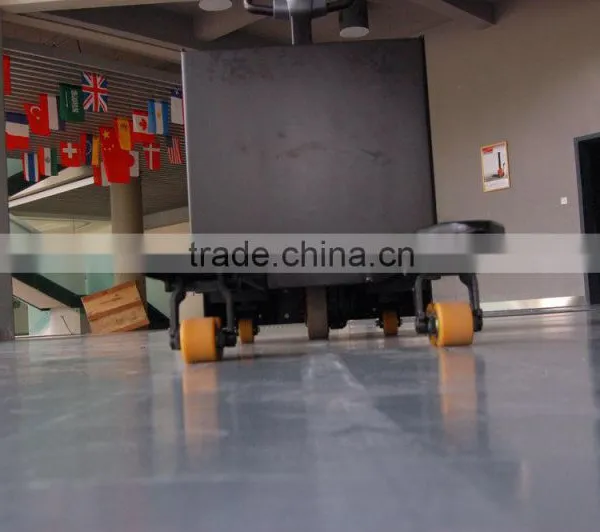

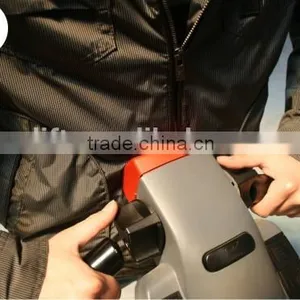

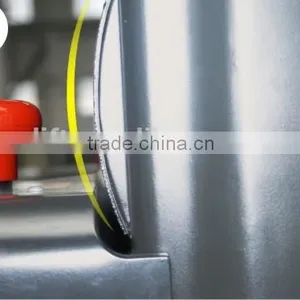

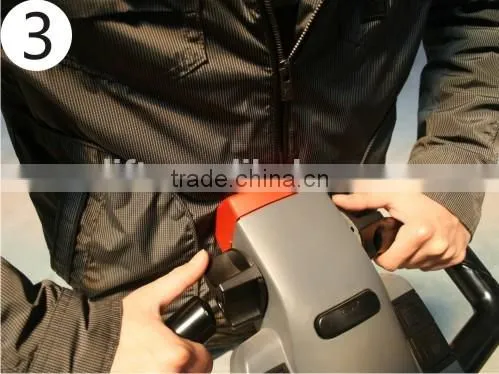

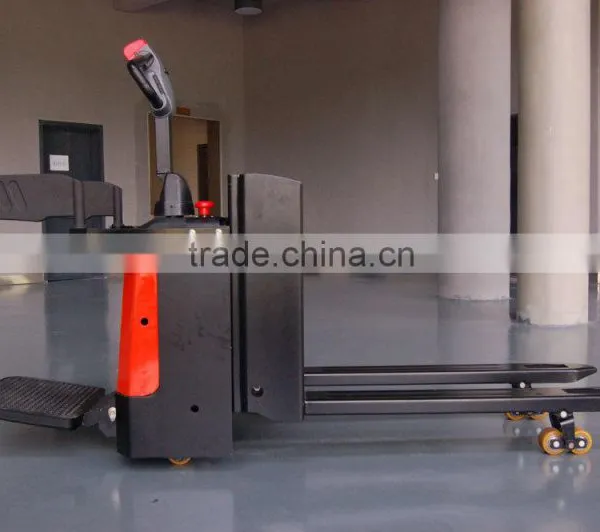

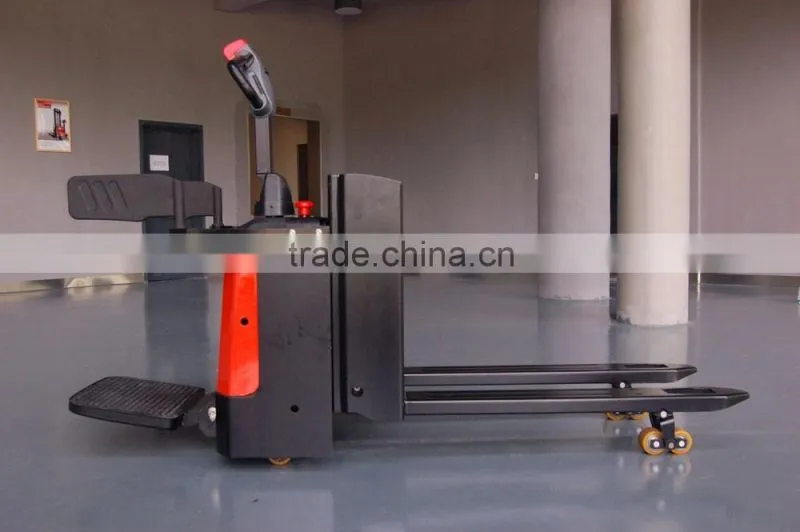

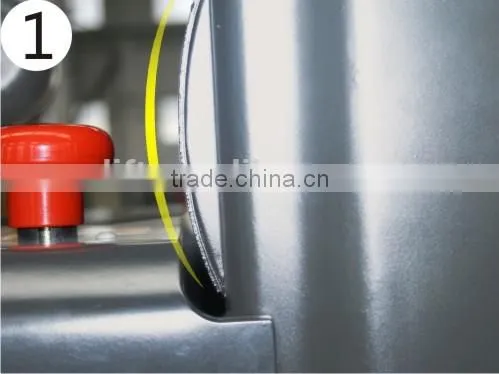

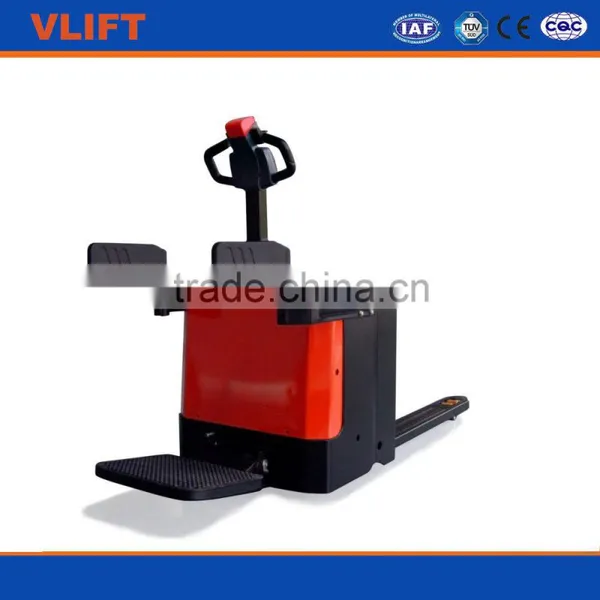

Electric Pallet Truck 2.0 Ton 2.5 Ton
| Characteristics WITH ELECTRIC PALLET TRUCK | ||||
| 1.2 | Model designation | VLT20 | VLT25 | |
| 1.3 | Drive unit | Battery | ||
| 1.4 | Operator type | Ride | ||
| 1.5 | Load capacity | Q (kg) | 2500 | |
| 1.6 | Load center | c (mm) | 600 | |
| 1.8 | Load distance (Raised/ Lowered) | x (mm) | 916/ 982 | 937/ 1003 |
| 1.9 | Wheelbase | y (mm) | 1381 | 1401 |
| Weights | ||||
| 2.1 | Service weight (Incl. battery) | kg | 670 | |
| 2.2 | Axle loading, laden front/ rear | kg | 1066/ 1604 | |
| 2.3 | Axle loading, unladen front/ rear | kg | 546/ 124 | |
| Wheels, Chassis | ||||
| 3.1 | Tyre type,operator side/ load side | PU/PU | ||
| 3.2 | Tyre size, operator side | 230x75 | ||
| 3.3 | Tyre size, load side | 2x 85x70 | ||
| 3.4 | Balance wheels (dimensions) | 130x60 | ||
| 3.5 | Wheels, number operator/load side (x=drive wheels) | 1x +2/4 | ||
| 3.6 | Tread, operator side | b10 (mm) | 510 | |
| 3.7 | Tread, load side | b11 (mm) | 370/ 515 | |
| Size | ||||
| 4.4 | Lift height | h3 (mm) | 125 | |

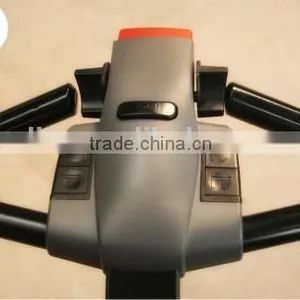

| 4.9 | Height of tiller arm in operating position, min/ max | h14 (mm) | 1150/ 1470 | |
| 4.15 | Fork height, lowered | h13 (mm) | 85 | |
| 4.19 | Overall length | l1 (mm) | 1860 | 1930 |
| 4.20 | Length to face of forks | l2 (mm) | 710 | |
| 4.21 | Overall width | b1/ b2 (mm) | 730 | |
| 4.22 | Fork dimensions | s/ e/ l (mm) | 55x170x1150 | 55x170x1220 |
| 4.25 | Fork spread, min/ max | b5 (mm) | 540/ 685 | |
| 4.32 | Ground clearance, center of wheelbase | m2 (mm) | 50 | |
| 4.33 | Aisle width, 1000×1200 pallet crossways | Ast (mm) | 2034 | |
| 4.34 | Aisle width, 800×1200 pallet lengthways | Ast (mm) | 2084 | |
| 4.35 | Outer turning radius | Wa (mm) | 1700 | 1725 |
| Performance | ||||
| 5.1 | Travel speed, laden/ unladen | km/ h | 7.5 /8.5 | |
| 5.2 | Lifting speed, laden/ unladen | m/ s | 0.056/ 0.060 | |
| 5.3 | Lowering speed, laden/ unladen | m/ s | 0.027/ 0.027 | |
| 5.8 | Maximum gradeability, laden/ unladen S2 5 min. | % | 8/16 | |
| 5.10 | Service brake | Electromagnetic | ||
| Drive | ||||
| 6.1 | Drive motor rating S2 60 min. | kW | 1.5 | |
| 6.2 | Lift motor rating at S3 15% | kW | 2.2 | |
| 6.4 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/ 210 | |
| 6.5 | Battery weight (with box) | kg | 190 | |
| Other | ||||
| 8.1 | Type of drive control | AC CURTIS | ||
| 8.4 | Sound level at operator's ear | dB (A) | ||
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
Shanghai Vlift Equipment Co., Ltd. is one of the leading suppliers of diesel forklifts, gasoline/LPG forklifts, electric forklift, electric pallet trucks, electric stackers, manual pallet trucks, manual stackers, oil drum carriers, container ramps, work platforms, and lift tables.
Vlift aims at provide you high quality, high performance material handling equipment.
Everywhere in the world you can see products made in China, and Vlift has the responsibility to offer you the satisfactory equipments at good price.
|
|
|
|
|
|
