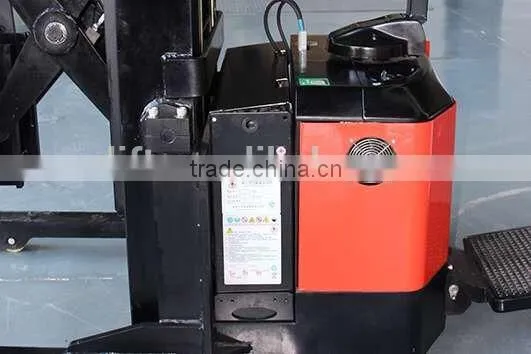

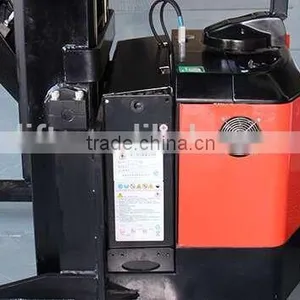

1.2 Ton Scissor Type Electric Reach Stacker lifting height 5500mm

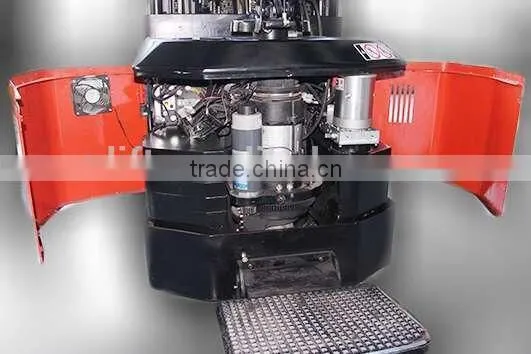

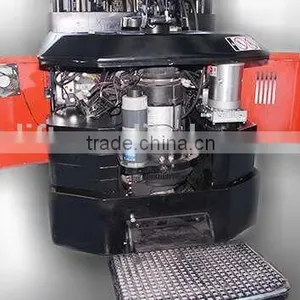

·The innovative AC system offers strong power, accurate control,excellent performance.
·High strength vertical gearbox, longer working life.
·Low-noise but durable hydraulic unit, good quality cylinder as well as hose ensure the high reliability of hydraulic system.
·AMP connecter electric wires and cables, greatly reducing electric parts failure rate.
·CJ shape mast channel improves the strength of the whole truck.
·Applied with electric valve on& better heat releasing systems support long time operation.
| VQE12 TECHNOLOGY SPECIFICATION | |||
| 1 | Model designation | VQE12 | |
| 2 | Drive unit | Battery | |
| 3 | Operator type | Standing | |
| 4 | Load capacity | Q (kg) | 1200 |
| 5 | Load center distance | c (mm) | 600 |
| 6 | Wheelbase | y (mm) | 1365 |
| Weights | |||
| 7 | Service weight | kg | 1835 |
| 8 | Axle loading, fork advanced,unladen driving side/loading side | kg | 1140/705 |
| 9 | Axle loading, fork retracted,unladen driving side/loading side | kg | 1240/605 |
| 10 | Axle loading, fork advanced, laden driving side/loading side | kg | 285/2760 |
| 11 | Axle loading, fork retracted, laden driving side/loading side | kg | 975/2070 |
| Wheels, Chassis | |||
| 12 | Tyre type | PU | |
| 13 | Tyre size, driving wheels | (mm) | Φ230x75 |
| 14 | Tyre size, loading wheels | (mm) | Φ102x73 |
| 15 | Wheels, number front/ rear (x=drive wheels) | (mm) | 1x/ 4 |
| 16 | Track width, front, driving side | (mm) | 0 |
| 17 | Track width, rear, loading side | (mm) | 1000 |
| Dimensions | |||
| 18 | Mast/ fork carriage tilt, forward/ backward | α/ β (°) | 2/ 4 |
| 19 | Height, mast lowered | (mm) | 2460 |
| 20 | Free lift | (mm) | 0 |
| 21 | Lift height | (mm) | 5500 |
| 22 | Height, mast extended | (mm) | 6460 |
| 23 | Height of wheel arms | (mm) | 135 |
| 24 | Overall length | (mm) | 2200 |
| 25 | Length to face of forks | (mm) | 1140 |
| 26 | Overall width | (mm) | 1100 |
| 27 | Fork dimensions | (mm) | 40×100×1070 |
| 28 | Fork carriage width | (mm) | 800 |
| 29 | Distance between fork-arms | (mm) | 200-780 |
| 30 | Distance between wheel arms/laoding surfaces | (mm) | 900 |
| 31 | Reach distance | (mm) | 590 |
| 32 | Ground clearance, laden, below mast | (mm) | 70 |
| 33 | The Min. ground clearance of frame | (mm) | 70 |
| 34 | Aisle width, 1000×1200 pallet crossways | (mm) | 2592 |
| 35 | Aisle width, 800×1200 pallet lengthways | (mm) | 2633 |
| 36 | Turning radius | (mm) | 1560 |
| 37 | Length across wheel arms(exclusive fork) | (mm) | 1680 |
| Performance | |||
| 38 | Travel speed, laden/ unladen | km/ h | 5.5/6 |
| 39 | Lifting speed, laden/ unladen | m/ s | 0.09/0.135 |
| 40 | Reach speed, laden/ unladen | m/ s | 0.08/0.08 |
| 41 | Lowering speed, laden/ unladen | m/ s | 0.16/0.15 |
| 42 | Max.gradeability, laden/ unladen | % | 6/10 |
| 43 | Service brake | Electromagnetic | |
| Drive | |||
| 44 | Drive motor rating S2 60 min. | kW | 1.27/1.5 |
| 45 | Lift motor rating at S3 15% | kW | 3 |
| 46 | Battery voltage/ rated capacity (5h) | V/ Ah | 24/210 |
| 47 | Battery weight | kg | 190 |
| 48 | Battery dimensions l/ w/ h | mm | 815*208*630 |
| Others | |||
| 49 | Type of drive control | AC | |
| 50 | Sound level at operator's ear | dB (A) | 74 |
1. How long it will take to deliver the product after I pay for it?
Above price valid time is 25 days.
2. What is the payment term?
Our Payment: T/T, L/C, etc.
3. How long is the warranty period any forklift, pallet truck, stacker, scissor lift etc?
Our equipment quality warranty is 1 year or 2000 hours which comes first.
4. What kinds of engine do you have and any gurantee?
Chinese engine, Japanese ISUZU, Mitsubishi, YANMAR, Nissan K21, Nissan K25 engine as per your request. Absolutely high quality.
5. How many colors of forklift you can supply?
Sliver, Orange, Yellow, Red. As Per Your Request.
6,What is the forklift standard configuration and spare parts?
Wide vision mast,standard fork,standard seat,direction switch,backrest,reversing lights,reversing buzzer,back-up mirror,light switch,light armor rack,klaxon,two pieces of multi-way valve,electric control,rear combination lamp,overhead guard,rain cover,urable tyre,lasso-parking brake,lifting and tilt joystick,rate-limiting valve of lifting,draebar pin,lighting,adjustable steering wheel,lilt line self-lock valve,full hydraulic power steering,handle,tool box,combination instrument,hydraulic return filter,hydraulic oil suction filter,hydraulic vernier,switch,brake,turning indicator.
