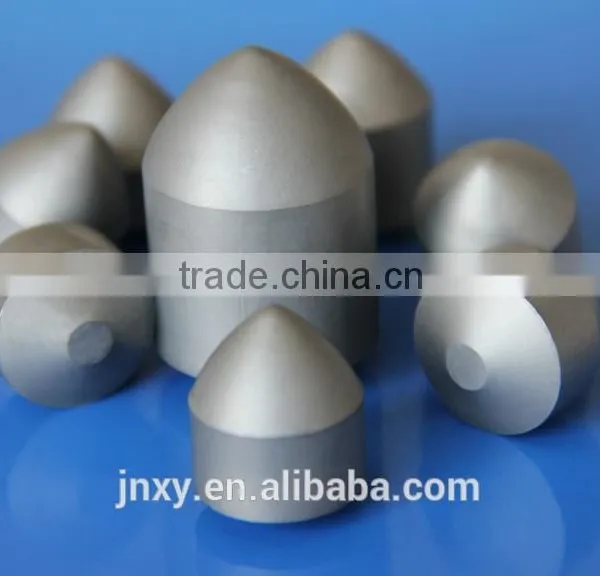

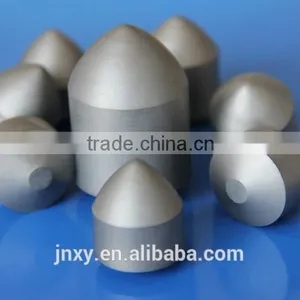

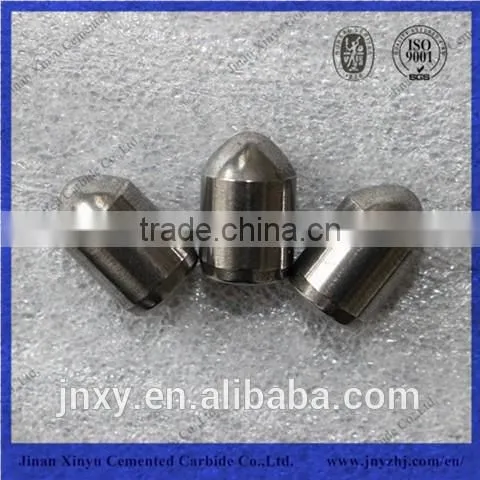

Help CenterLong Extension Conical Shaped Cemented Carbide Insert
Related Products
-
YG6 YG8 Tungsten Carbide K034 K026 InsertUS$ 55 - 70MOQ: 1 Kilogram -
High Quality Cemented Carbide Buttons for MiningUS$ 55 - 70MOQ: 1 Kilogram
-
Tungsten Carbide Wire Drawing DiesUS$ 55 - 70MOQ: 1 Kilogram
-
Alloy Metal Cap Tips for Mining /carbide Mining ToolsUS$ 55 - 70MOQ: 1 Kilogram
-
China Supply Cap Shaped Carbide Tips for Road Milling Bits /cemeted Carbide Cap InsertsUS$ 55 - 70MOQ: 1 Kilogram
YG6, YG8 Tungsten Carbide Conical Button Bits for Drill Bit in Soft Formation
Various Shapes FYI--Suitable for different foundation--Choose as your demand
Drawing Of Carbide Conical Shap Button
Material Grade and Application
Grades |
ISO Grade |
Chemical Composition |
Density (g/cm3) |
HRA |
T.R.S (N/mm2) |
YG4C |
96%WC, 4%Co |
15.00 |
89.5 |
1800 |
|
YG6 |
K20 |
94%WC, 6%Co |
14.80 |
89.5 |
1700 |
YG8 |
K20-K30 |
92%WC, 8%Co |
14.70 |
88.5 |
2300 |
YG8C |
K30 |
92%WC, coarse |
14.70 |
88.0 |
2300 |
YG9C |
YK20 |
94%WC, 6%Co |
14.45 |
87.0 |
2400 |
YG11C |
89%WC, 11%Co |
14.40 |
86.5 |
2450 |
|
YG13C |
87%WC, 13%Co |
14.30 |
86.0 |
2500 |
|
YG15 |
K40 |
85%WC, 15%Co |
14.00 |
86.5 |
2500 |
YG16 |
84%WC, 16%Co |
14.10-14.30 |
87.5 |
2400 |
|
YG20 |
80%WC, 20%Co |
13.40-13.70 |
85.0 |
2254 |
Company Information
Company and Factory Intruction and Pictures
Founded in 2002, Jinan Xinyu Cemented Carbide Co., Ltd. is a large licenced import and exportenterprise integrating R&D, manufacture and trade of cemented carbide in a whole and has strong R&D ability and advanced production facilities.
Our products are exported to more than 50 countries and regions across the world including the United States, Canada, Italy, Japan, Korea,Taiwan,Asia, Europe, Africa etc. The cemented carbide and related products of our company is of excellent performance and quality and sold well both at home and abroad.
Shipping:
By Express, By air, By Sea are OK, as your wish.
Below shows the estimate delivery time for different courier:
- DHL: 3-5 working days
- FedEx: 5-7 working days
- UPS: 4-6 working days
- EMS:5-10 working days
Contact Information
Name: Amy Xie
Skype: amy-xie1026
WhatsApp: +8615063383579
Welcome to contact with me. Your drawig and detailed requirement is highly appreciated.
