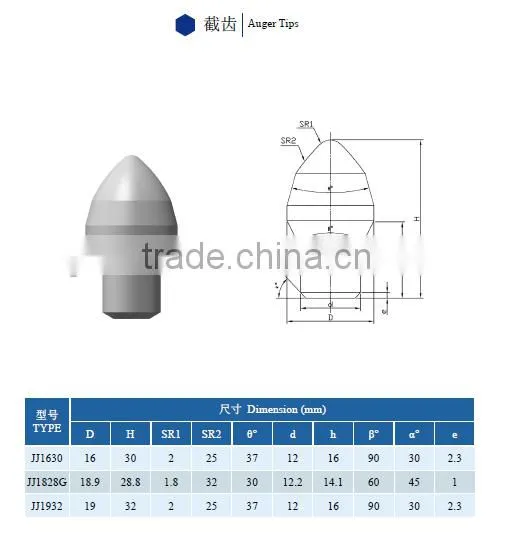

Tungsten carbide rock drill bit 11 degree stone drilling tools taper button bit
Tungsten Carbide Tip TC Tip
Advantage:
1. Free sample
2. Direct factory produce and sale
3. Different grades are available
4. Custom-made available
5. Precision processing and strict product inspection
6. Advanced Equipments and Professional technicians
7. Gurantee the bulk quality are in accordance with the samples
8. ISO 9001-2008 Quality Control System
9. 100% virgin tungsten carbide powder
10. High speed cutting,wears well & long service life
11. High hardness, high strength, wear resistance
12. 12 years professional experience

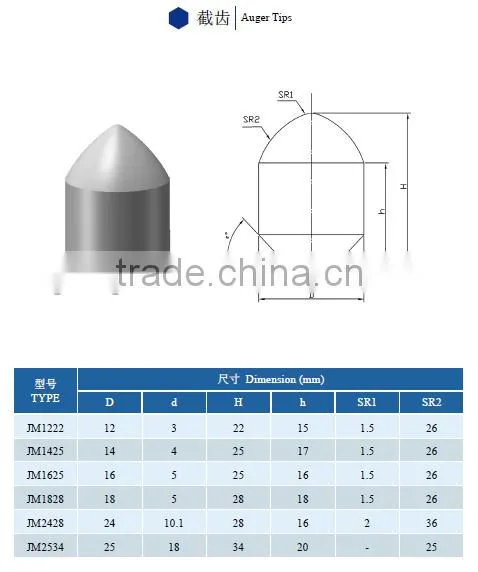

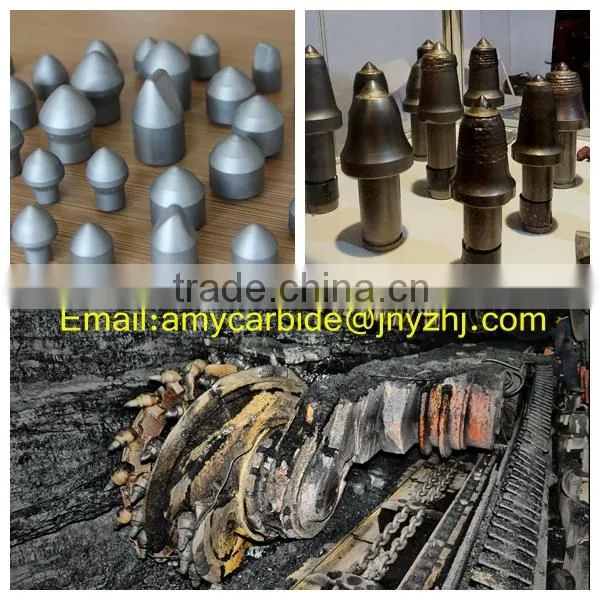

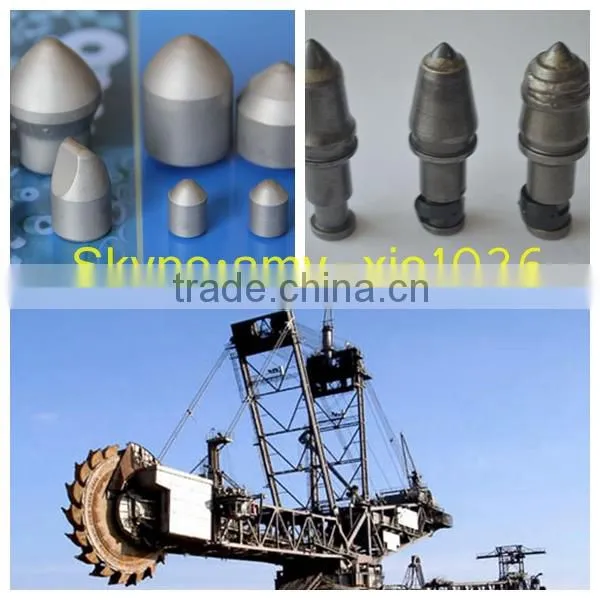

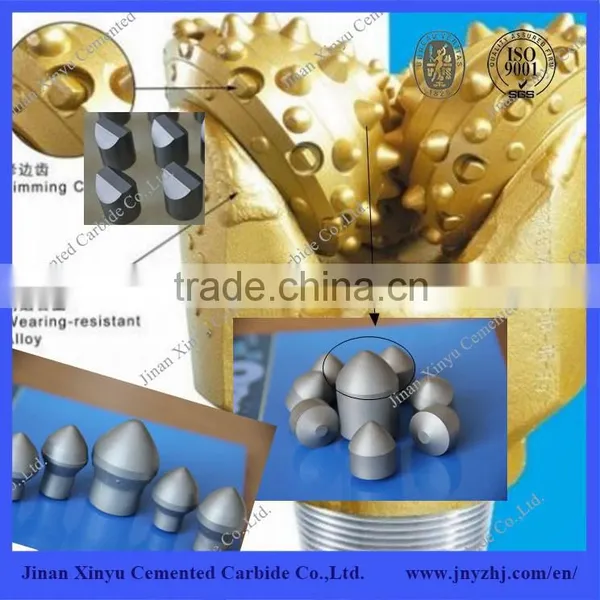

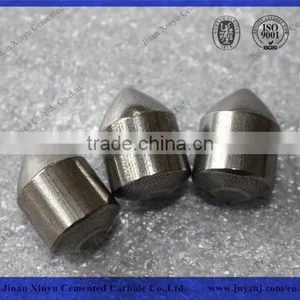

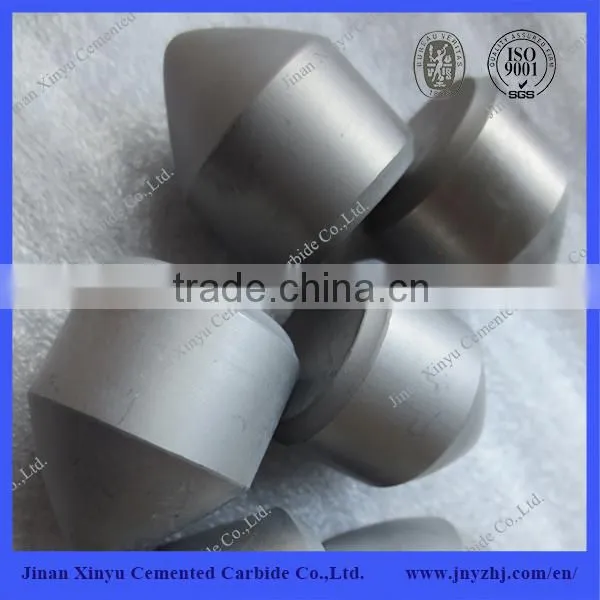

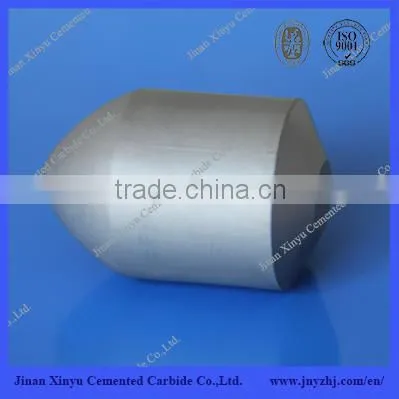

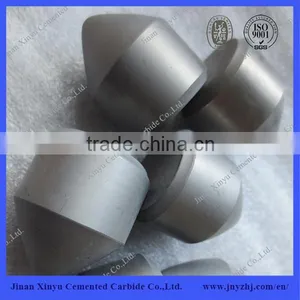

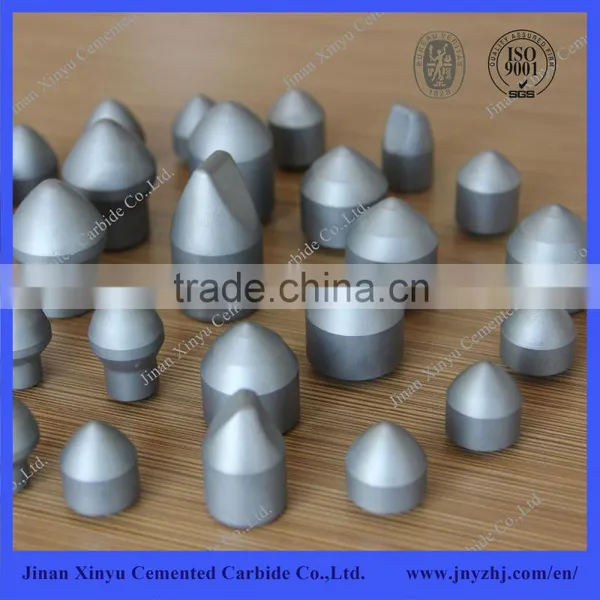

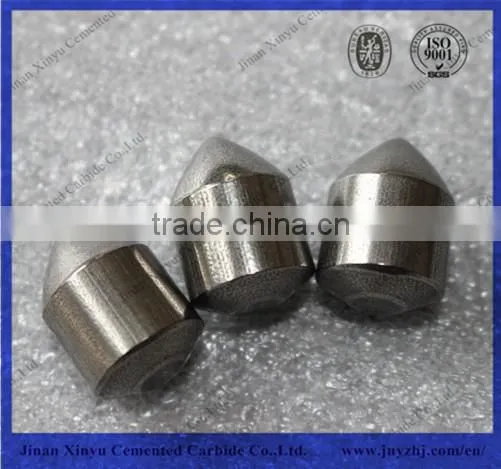

Photos of Products
Material Grade and Usage
Grades |
Density (g/cm³) |
Hardness (HRA) |
T·R·S (N/mm2) |
Application |
YG4C |
15.00 |
89.5 |
1800 |
Maily used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 |
15.80 |
89.5 |
1700 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 |
14.70 |
88.5 |
2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C |
14.70 |
88.0 |
2300 |
Maily used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C |
14.50 |
87.0 |
2400 |
Maily used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG11C |
14.40 |
86.5 |
2450 |
Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations. |
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 |
14.00 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 |
14.10-14.30 |
87.5 |
2400 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 |
13.40-13.70 |
85.0 |
2254 |
Mainly for the stamping dies used in the conditions of heavy impact load and large strees. |
