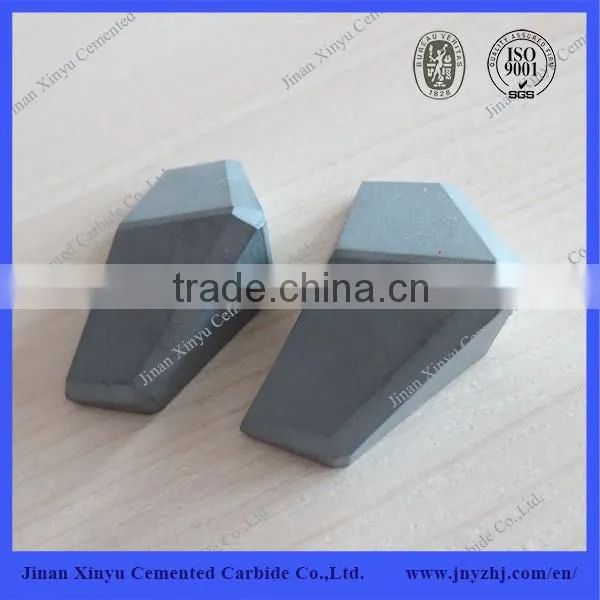

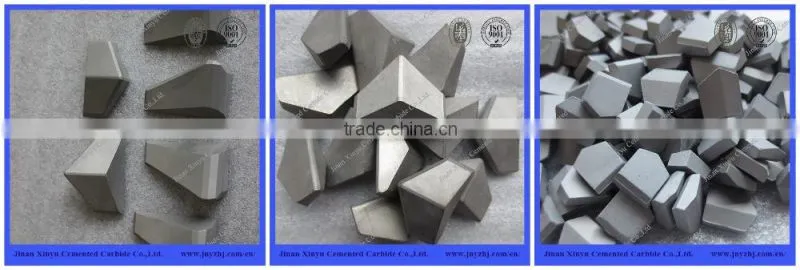

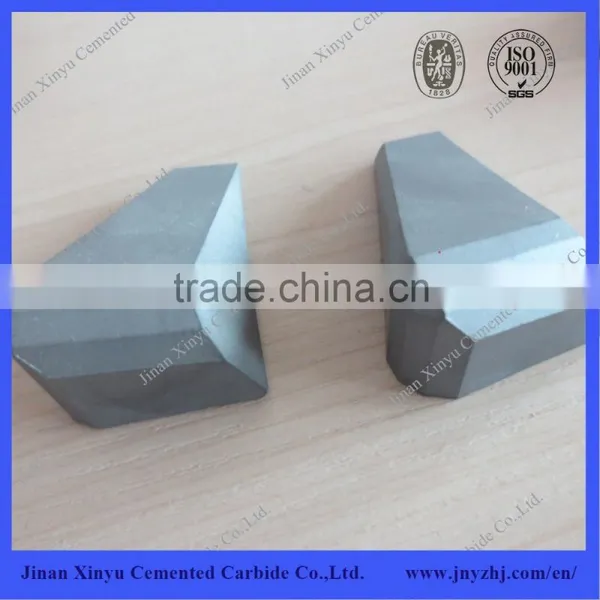

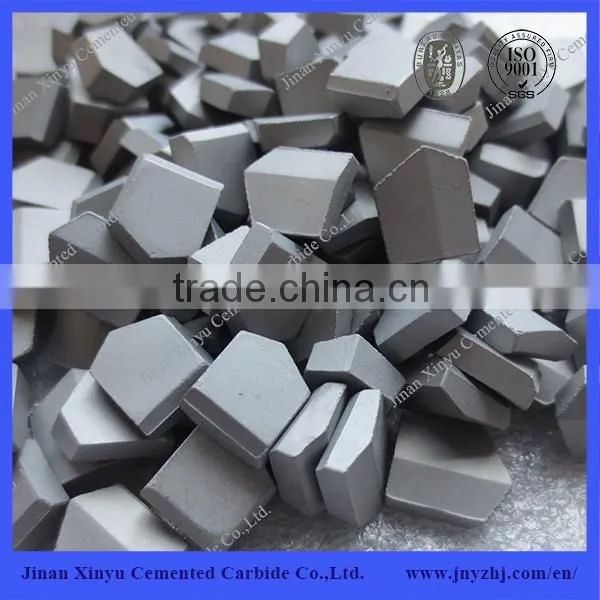

Tungsten Carbide Shield Cutter for roller cutter
1. Application of tungsten carbide shield cutter for roller cutter
Shield cutter/inserts: Mainly used on shield tunneling machine during the construction engineering
2. Specification of tungsten carbide shield cutter for roller cutter
3.Grades, properties and applications of our Tungsten Carbide
Grades |
Density(g/cm³) |
Hardness (HRA) |
T·R·S (N/mm2) |
Application |
YG4C |
15.00 |
89.5 |
1800 |
Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG6 |
14.80 |
90.0 |
1700 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8 |
14.70 |
88.5 |
2200 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG8C |
14.70 |
88.0 |
2300 |
Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations. |
YG9C |
14.60 |
87.0 |
2400 |
Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tri-cone bits to cut medium-hard and hard formations. |
YG11C |
14.40 |
86.5 |
2450 |
Mainly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tri-cone bits to cut medium-hard and hard formations. |
YG13C |
14.30 |
86.0 |
2500 |
Mainly used as the inserts and buttons of tri-cone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations. |
YG15 |
14.20 |
86.5 |
2500 |
It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations. |
YG16 |
14.10 |
85.5 |
2600 |
It is mainly used for making cemented carbide substrate tips to be used in PDC cutters for excavating coal and oil field PDC bits. |
YG20 |
13.70 |
85.0 |
2800 |
Mainly for the stamping dies used in the conditions of heavy impact load and large stress. |
4. Production Progress

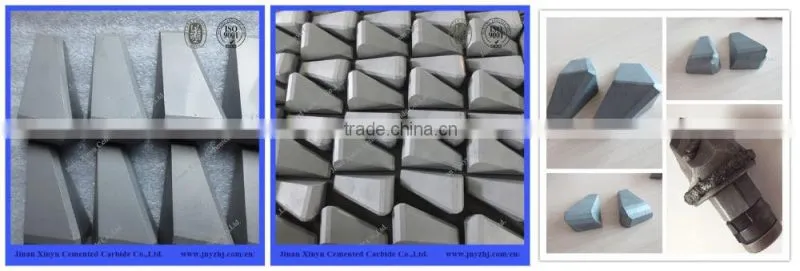

5. Other products

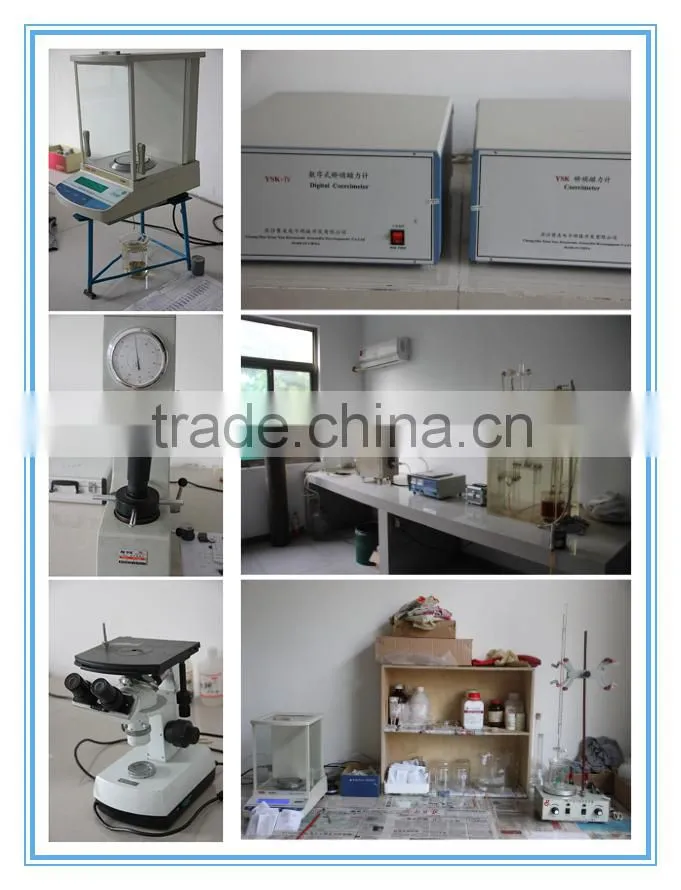

6. Quality Control System
1) Chemical composition of raw material;
2) Granulatity of raw material;
3) Bend Strength;
4) Density;
5) Hardness;
6) Coercive force;
7) Metallographical
7. Enterprise Introduction
8. Certificate
9. Package
10. Payment
11. Shipping
12. Contact
Chengxia Che
International Business Manager
Jinan Xinyu Cemented Carbide Co.,LTD
Tel: 0086-0531-6789 7298
Fax: 0086-0531-6789 7298
Cel: 0086-0-13225410726
Web:
