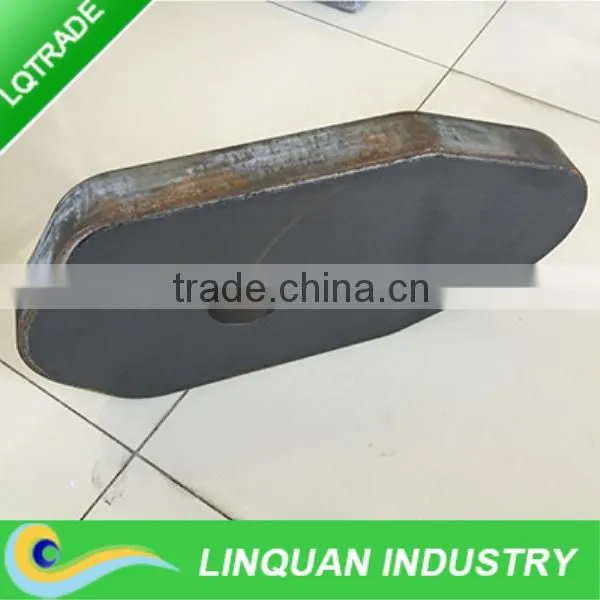

Linquan refractory LG22 Al2O3-ZrO2-C material slide gate plate
1)High Temperature Burnt Slide Gate Plate----Mostly for large size slide gate plate----LQLG21/22
This product adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. Mainly used in large and medium-sized ladle.
Physical and chemical properties:
| Al-Zr-C Material | |||||
| Al2O3 | C | ZrO2 | Apparent porosity | Bulk density | C.C.S |
| (% minm) | (% minm) | (% minm) | (% max) | (gm./cc minm) | (MPa minm) |
| 85 | 3 | 5 | 7 | 3.1 | 120 |
2) Low Temperature Burnt Slide Gate Plate---Middle size ladles and slide plate
Tabular alumina, zirconia-containing material and spinel as major raw materials, adding in special metal, using phenolic resin as binder, being burned under low temperature to produce the products, Mainly used in small and medium-sized ladle.
| AL-C & AL-Zr-C | ||||||
| Al2O3 | C | ZrO2 | Apparent porosity | Bulk density | C.C.S | |
| (% minm) | (% minm) | (% minm) | (% max) | (gm./cc minm) | (MPa minm) | |
| Inner side (Working face) | 85 | 3 | 4 | 7 | 3.1 | 120 |
| Outside | 90 | 3 | 0 | 9 | 3 | |
3) Unburned Slide Plate ----for small size ladles and slide gate plate
No need to be burned, tar impregnated and distilled, simple processing. This product mainly used in small and medium-sized ladle.
Physical and chemical properties:
| Al-C Material | ||||
| Al2O3 | C | Apparent porosity | Bulk density | C.C.S |
| (% minm) | (% minm) | (% max) | (gm./cc minm) | (MPa minm) |
| 90 | 3 | 9 | 3 | 120 |
4. Simple production introduction
Our Slide Gate Plate adopts High quality bauxite material , also takes tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.
1) C series Small size Slide Plate---mainly for Indonesia, Vietnam, Myanmar, Thailand, for 5-20 tons ladles.
2) QC series Slide Plate mainly for India, Turkey, Iran, Indonesia, Pakistan, Italy , mainly for 20-30 tons ladles.
3) B250 , safllow, HB250, Mainly for Pakistan, Iran markety.
4) Flocon sereis Slide Plate mainly for Turkey, Iran, Italy, Braizl, and soon.
5) LQCS Serise Slide Plate mainly for Europe countries. mostly for larges ladles such as more than 120 tons.
Jinan Linquan Industry and Trade Group Co., Ltd --Our goal is to provide ladle slide plate, slide gate, ladle nozzles, collector nozzle, ladle well block, porous block, purging block and plug, tundish nozzle and services to clients, and strive to become the large-scale international company in the particular fields as stated above. We believe that through excellence and innovation while keeping good faith and traditional morals in doing business, Linquan can achieve high-speed development and satisfy the interests of our shareholders, employees and the society.
1. Serivice life depends on steel-making condition, refractory slide gate and different operation mode. The above service life we supply is based on the condition of more than 100 Tons ladle.
2. For composited slide plate, we can mark different material in different part and detailed index according to the drawings.
3. Delivery time depends on the drawings. If new moulds are needed, an additive period may be necessary. In general it takes 30-50 days.
