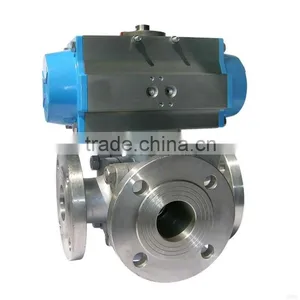

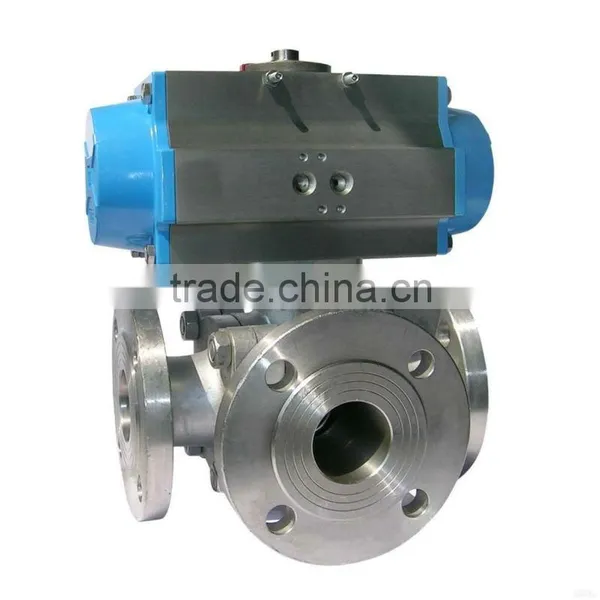

Help Center3 Way Pneumatic Ball Valve
US$ 100 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin port China or according to request
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Pneumatic Ball Valve With ActuatorUS$ 50 - 1,000MOQ: 1 Set -
Electric / Pneumatic Ball Valve With ActuatorUS$ 100 - 2,000MOQ: 1 Set
-
China Product Pneumatic Actuator Ball ValveUS$ 100 - 1,000MOQ: 1 Set
-
Ball Valve With Electric Actuator or Pneumatic ActuatorUS$ 100 - 2,000MOQ: 1 Set
-
Tianjin Pneumatic Actuator Ball ValveUS$ 50 - 2,000MOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Pneumatic
Material
Stainless Steel
Temperature of Media
Normal Temperature
Media
Water
Port Size
1/2"--12"
Place of Origin
Tianjin, China
Model Number
Bell
Brand Name
BELL
Specifications
1.3 way Pneumatic Ball Valve2.Forty years production experience
3.High quality
4.Stable performance
5.Long service life
3 way Ball Valve with Pneumatic Actuator,Pneumatic Ball Valve
3 way Pneumatic Ball Valve

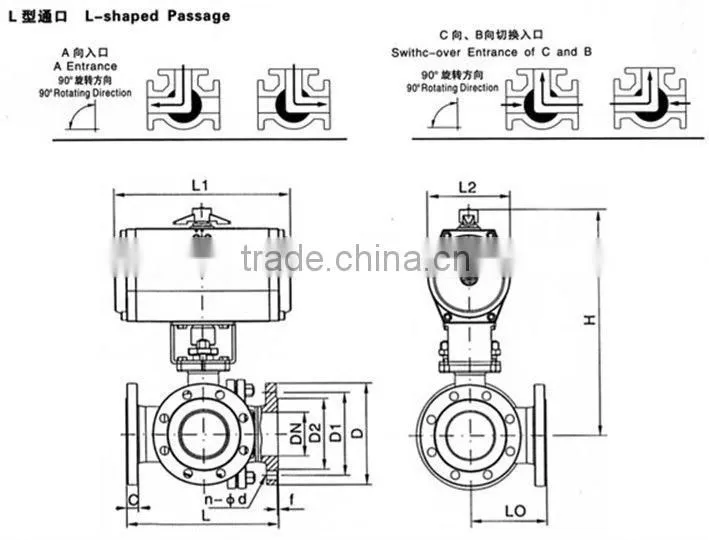

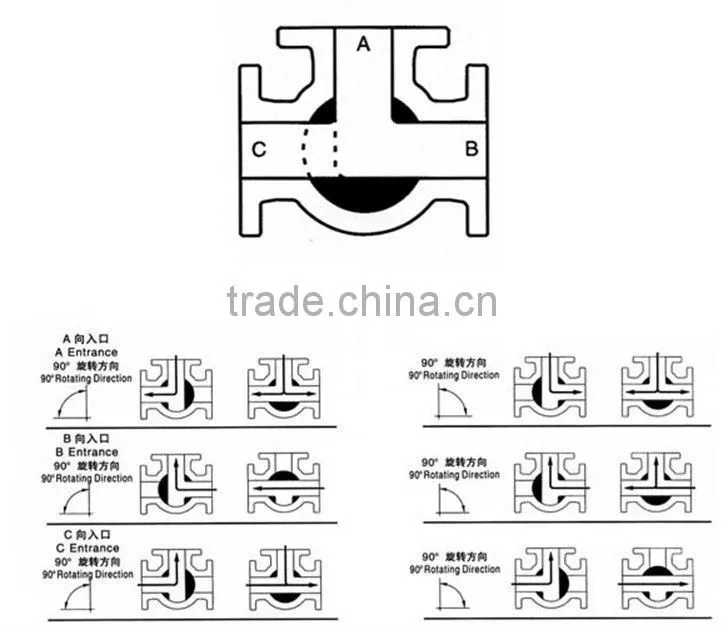

Ball three medium flow diagram Sketch of Medium Flow-direction of Three-way Ball Valve
Ball three links for the streaming or the convergence of the flow, is a second valve seat surface or all of the multi-port ball valve, either pass the entrance of the mouth can be used without leakage. Links can be made of L-type pass the mouth can also be made from T-pass port.
