DS-2CD3135F-IS 3MP Support H.265 HEVC Support TF Card Slot &Two Way Audio Mini Dome POE IP CCTV Camera
Key Features of IP Camera DS-2CD3135F-IS
2. Full HD1080p real-time video
3. EXIR 30m IR range
4. True day/night
5. 3D DNR & DWDR & BLC
6. IP66 rating
| Camera | ||
|---|---|---|
| Image Sensor: | | | 1/3" Progressive Scan CMOS |
| Min. Illumination: | | | 0.01Lux @(F1.2,AGC ON) ,0 Lux with IR;0.07 Lux @(F2.0,AGC ON), 0 Lux with IR |
| Shutter time: | | | 1/3 s to 1/100,000 s |
| Lens: | | | 4mm@ F2.0 (2.8mm, 6mm optional), Angle of view: 98.5°(2.8mm), 79°(4mm) , 49°(6mm) |
| Lens Mount: | | | M12 |
| Adjustment Range: | | | Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0-355° |
| Day& Night: | | | IR cut filter with auto switch |
| Wide Dynamic Range: | | | Digital WDR |
| Digital noise reduction: | | | 3D DNR |
| Compression Standard | ||
| Video Compression: | | | H.265 / H.264 / MJPEG |
| H.265 code profile: | | | Main Profile |
| Video bit rate: | | | 32 Kbps~8Mbps |
| Audio Compression: | | | -S: G.711/G.722.1/G.726/MP2L2 |
| Audio bit rate: | | | 64Kbps(G.711) /16Kbps(G.722.1)/16Kbps(G.726) /32-128Kbps(MP2L2) |
| Dual Stream: | | | Yes |
| Image | ||
| Max. Image Resolution: | | | 2048×1536 |
| Frame Rate: | | | 50Hz: 20fps(2048 × 1536), 25fps(1920 × 1080), 25fps (1280 × 720) |
| Image Settings: | | | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
| BLC: | | | Yes, zone configurable |
| ROI: | | | Support |
| Network | ||
| Network Storage: | | | Built-in Micro SD/SDHC/SDXC slot, up to 128G, NAS(NFS, SMB/CIFS) |
| Alarm Trigger: | | |
Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
| Protocols: | | |
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour |
| Security: | | |
One-key reset, flash-prevention, dual streams, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering, Anonymous access |
| System Compatibility: | | | ONVIF, PSIA, CGI, ISAPI |
| Interface | ||
| Audio: | | | 1-ch 3.5 mm audio in (Mic in/Line in)/out interface (-S model) |
| Communication Interface: | | | 1 RJ45 10M / 100M Ethernet interface |
| Alarm: | | | -S: 1 alarm I/O |
| Wi-Fi Specification (-W) | ||
| Wireless Standards: | | | IEEE802.11b, 802.11g, 802.11n |
| Frequency Range: | | | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth: | | | 20/40MHz Support |
| Modulation Mode: | | |
802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| Security: | | | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS |
| Transmit Power: | | |
11b: 17±1.5dBm @ 11Mbps 11g: 14±1.5dBm @ 54Mbps 11n: 12.5±1.5dBm |
| Receive Sensitivity: | | |
11b: -90dBm @ 11Mbps (Typical) 11g: -75dBm @ 54Mpbs (Typical) 11n: -74dBm (Typical) |
| Transmission Rate: | | |
11b: 11Mbps 11g: 54Mbps 11n: up to 150Mbps |
| Wireless Range: | | | 50m(depend on environment) |
| Protocols: | | |
802.11b: CCK, QPSK, BPSK 802.11g/n: OFDM |
| General | ||
| Operating Conditions: | | |
-30 °C ~ 60 °C (-22 °F ~ 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply: | | | DC12V / PoE(802.3af) |
| Power Consumption: | | | Max. 5 W |
| Impact Protection: | | | IK10 |
| Weather Proof: | | | IP66 |
| IR Range: | | | Up to 30m |

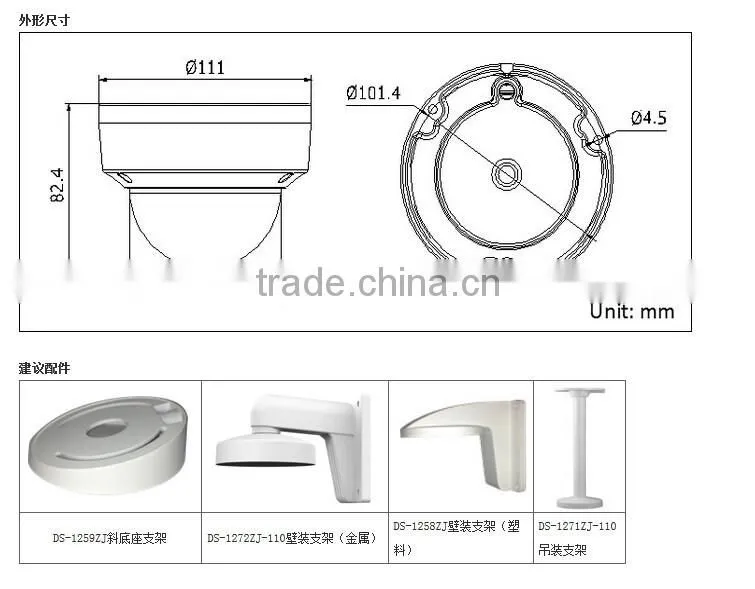

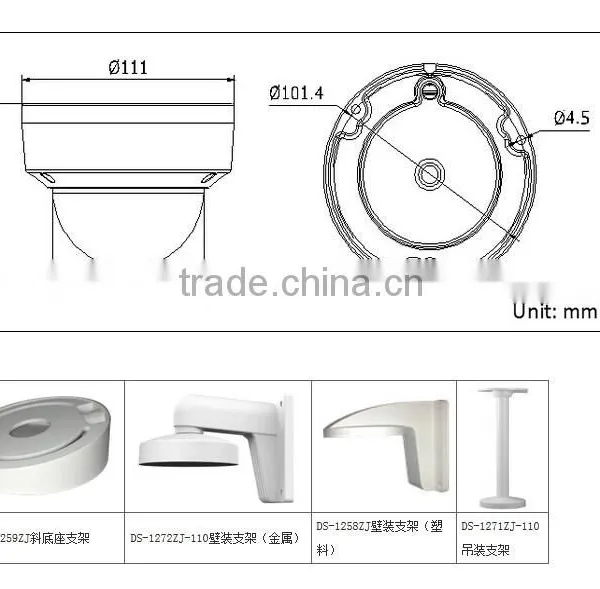

| Dimensions: | | | Φ111 × 82 (4.4” × 3.2”) |
| Weight: | | | 500g (1.1 lbs) |
| NOTE:: | | |
"-W" series support Wi-Fi (802.11b/g/n) and the modules with Wi-Fi function don’t support the 802.1X protocol. |




![]() 1.For most items , we can send out the goods within 1-3 days after your payment verification. 2.We are responsible for China custom,buyers are responsible for your customs duties or import tax. We can ship the buyer item in a lower value, in order to help the buyer avoid the buyer's tax.So if you need,please leave us a message 3.DHL,Fedex and other shipping cost not include the extra charge for remote area , if your location belong to remote area, we will contact you to change the shipping way, please kindly note it. |
|
Any questions please contact me any time.
Contact Name: Angela Kuang
QQ/Wechat:541774442
Skype: obdoscooter
Trade Manager: cn1513179517 |
|
