HZS35 ready-mixed stationary concrete mixing plant
Product Range Click below to choose your desired product categories
Concrete Batching Plant |
Stabilized Soil Mixing Plant |
Lime Digestion Machine |
Cutter Suction Dredger |
1.High efficient twin shaft concrete mixer.
2. Independent accurate weighing system.
3. Hopper or belt type aggregate conveying system.
4. Outstanding environmental friendly performance.
5. High efficient, reliable working performance.
Model |
HZS35 ready-mix concrete mixing plant |
Rated productivity |
35m3/h concrete mixing plant |
Batching machine type |
PLD1200 |

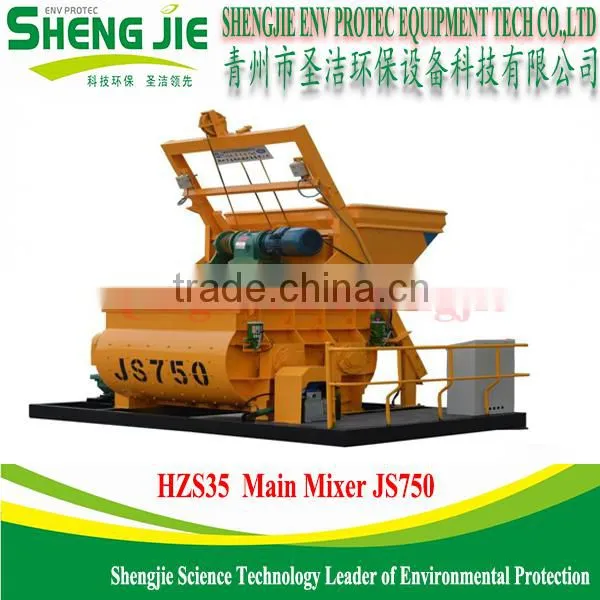

Mixing engine |
JS750 |
Max. aggregate diameter |
80/60mm |
Motor power |
30kw |
Model |
Skip hopper feeding |
Aggregate bin |
8m3/single bin |
Aggregate metering accuracy |
±2% |
hopper volume |
1.2m3 |
powder metering accuracy |
±1% |
powder metering range |
10-400kg |
Water metering |
±1% |
Total power |
62Kw |
Total weight |
10T |
Floor Area(L*W) |
25×4(m) |
Discharging height |
3.8 m |

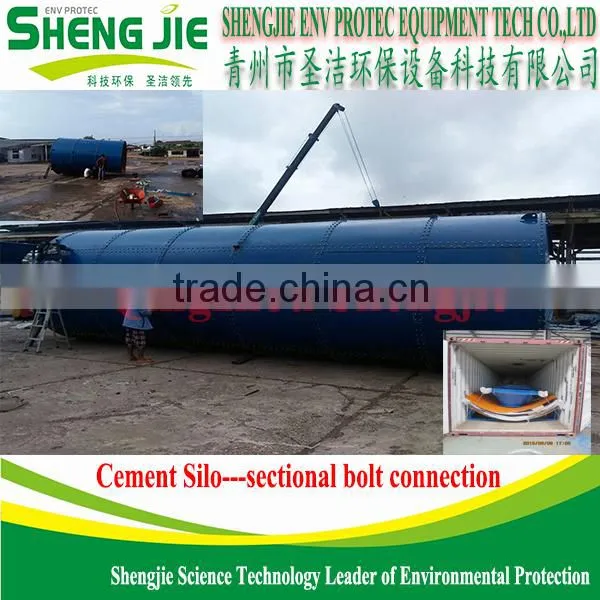

Silo (optional-parts) |
100T/Φ2900 |
Manual Butterfly Valve |
D250 |

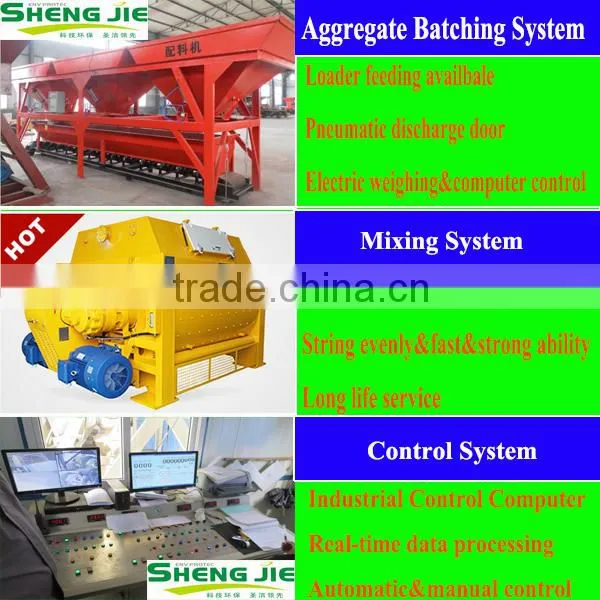

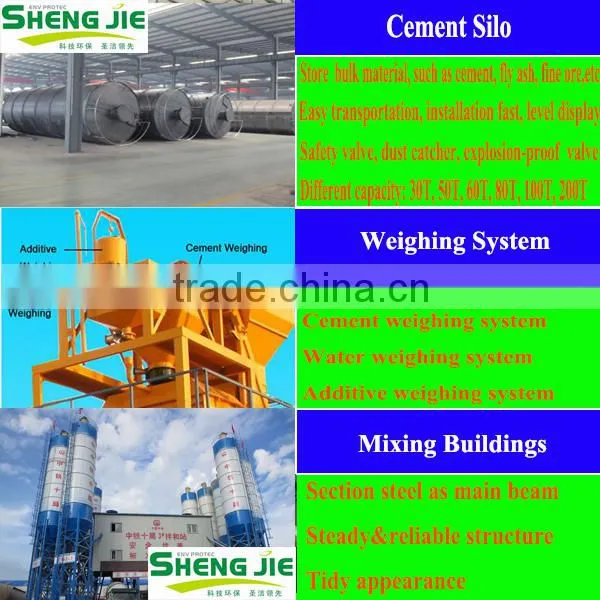

| 1 | HZS series concrete batching plant consists of aggregate batching system, concrete mixing system, cement supply system, water supply system, cement weighing system, water weighing system, control system, etc. |
| 2 | All aggregates are fed into the aggregate batching machine by loader, and weighed in the weighing hopper or weighing belt. After weighing, they are transported to a hopper or a belt, and then the aggregates are transported to the mixer for mixing. |
| 3 | Cement is conveyed into the cement weighing hopper by screw conveyor for weighing, after weighing, cement is poured into mixer. |
4 |
Water is pumped into water weighing hopper by water pump. After weighing, water is sent into the mixer. |
| 5 | After all materials are weighed and fed into the mixer, the mixer can begin to mix and produce concrete. |
