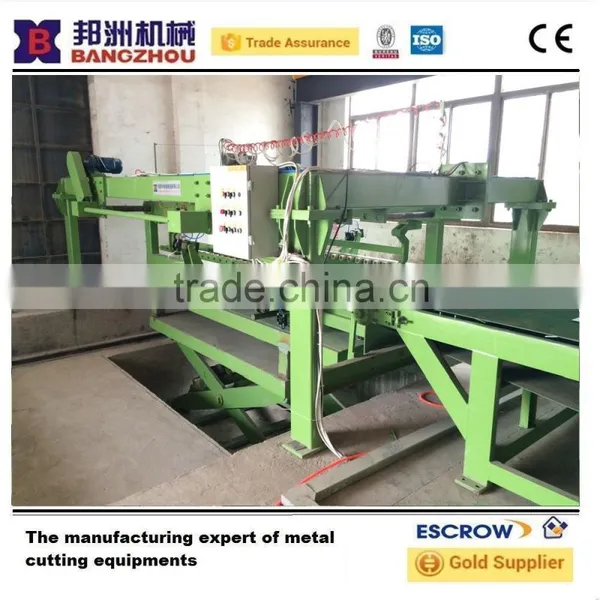

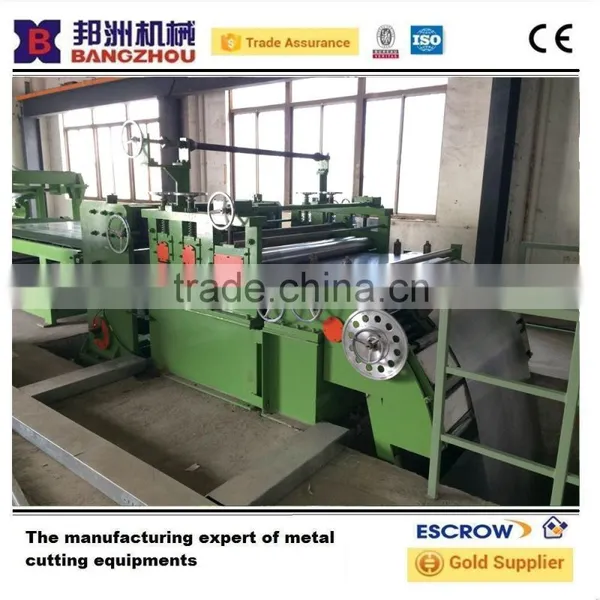

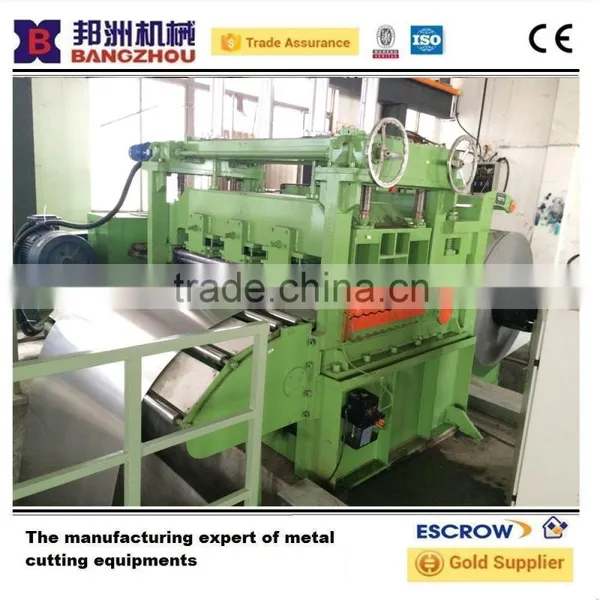

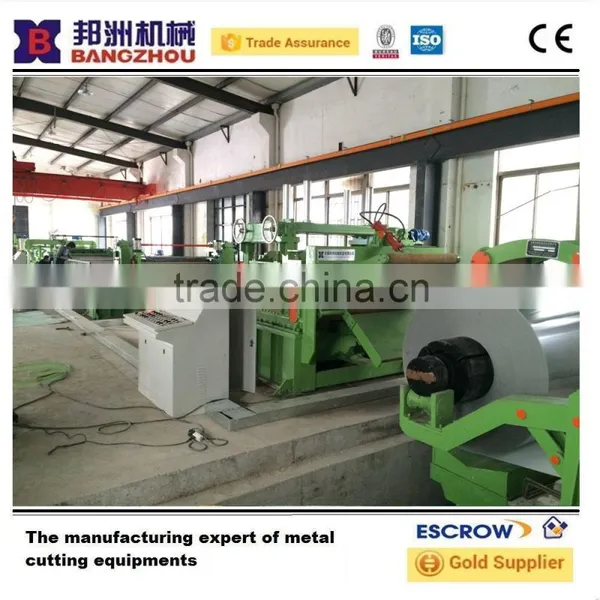

Stainless Steel Cut to length Machine
Technical parameters of Stainless Steel Cut to length machine :
| 1. | application | GI |
| 2. | Thickness of coiled plate | 0.3-3mm |
| 3. | Width of coiled plate | 1250mm |
| 4. | Slitting speed | 0-80m/min |
| 5. | Loading capacity | 12T |
| 6. | Coil I.D | 480-510mm |
| 7. | Coil O.D | ≤1800mm |
| 8. | Diameter of leveling roller |
65 |
| 9. | Distance of leveling rollers | 70 |
| 10. | Number of leveling rollers | 19 |
| 11. | Material of leveling roller | GCr15 |
| 12. | Material of cutter blade | 6CrW2Si |
| 13. | Direction of feed material |
from right to left |
| 14. | Power | 380V three-phase 50Hz |
| 15. | Size | 25mx8m |
Composed device of Stainless Steel Cut to length machine :
1. Hydraulic entry car
2. Cantilever de-coiler
3. Fourfold pre-leveling machine
4. Loop
5. Side guide device
6. Servo precision straightening machine
7. Hydraulic cutter
8. Transportation table
9. Hydraulic lifting table
10. Pneumatic stacker device
11. Exit Sheet car
12. Hydraulic system
13. Electrical system

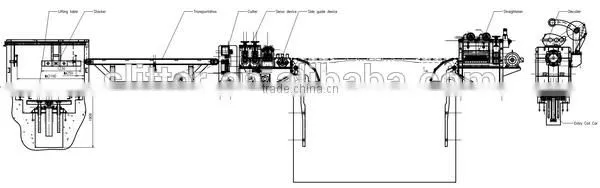

Sample layout of the cut to length machine
Characteristics:
1. Automatic procedure which is very easy to operate
2. High speed can make the high output amount to maximize the cut to length machine's function and value.
3. Motor designed with the cutter to ensure the high speed quality

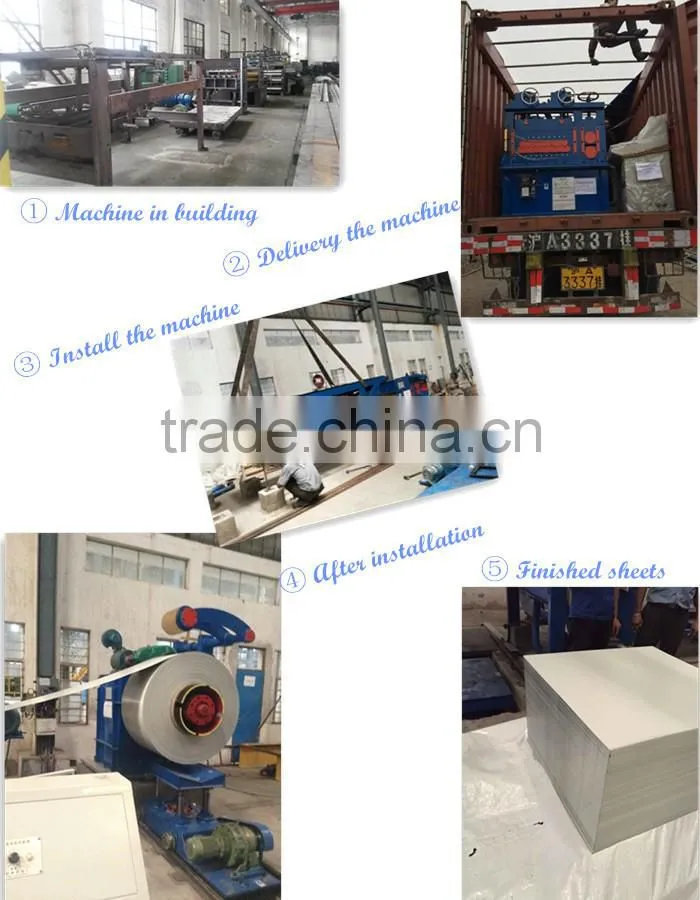

1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to
protect the rollers. All the spare parts will be collected into the homemade steel boxes
2. Delivery: 100 days
3. Container: 2x40GP and 1x40 OT
4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Characteristics:
1. Automatic procedure which is very easy to operate
2. High speed can make the high output amount to maximize the cut to length line machine's function and value.
3. Adopts the servo system to ensure the cutting precision..
Welcome to our company, contact us, more details will send to you.
