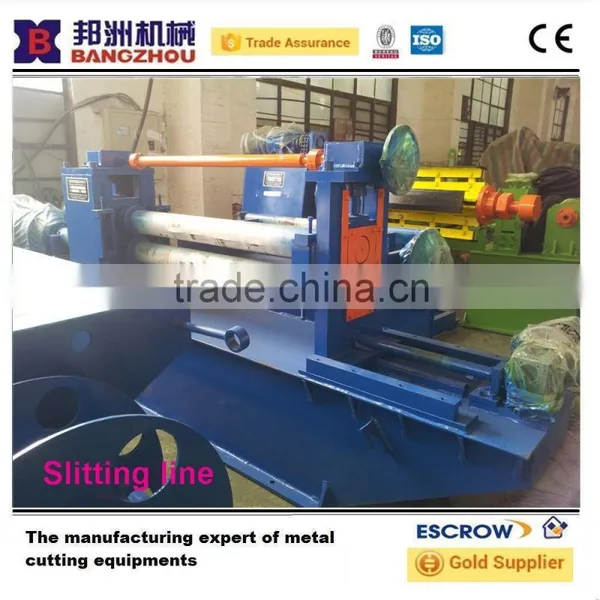

Simple China steel Slitting line
Technical parameters:
| 1. | application | Cold rolled steel coils, Galvanzied steel |
| 2. | Thickness of coiled plate | 0.3-2mm |
| 3. | Width of coiled plate | 750mm |
| 4. | width tolerance | ±0.05mm/2M |
| 5. | Slitting speed | 0-30m/min |
| 6. | Loading capacity | 5T |
| 7. | Coil I.D | 480-510mm |
| 8. | Coil O.D | ≤1200mm |
| 9. | Knife pivot diameter of slitting | 120mm |
| 10. | Slitting blade | 120×200×10 |
| 11. | Material of slitting blade | 6CrW2Si |
| 12. | Hardness of blade | HRC58°—60° |
| 13. | Recoiler I.D | 508mm |
| 14. | Power | 380V three-phase 50Hz |
| 15. | Size | 10mx4m |
Composed device:
1. Decoiler
2. Slitting machine
3. Scrap winder
4. Tension stand
5. Recoiler
6.Elecronic control system
Sample layout of the slitting line
Characteristics:
1. This type of slitting line is a simple slitting line
2. Design for the customer who only using for own factory (less production amount)

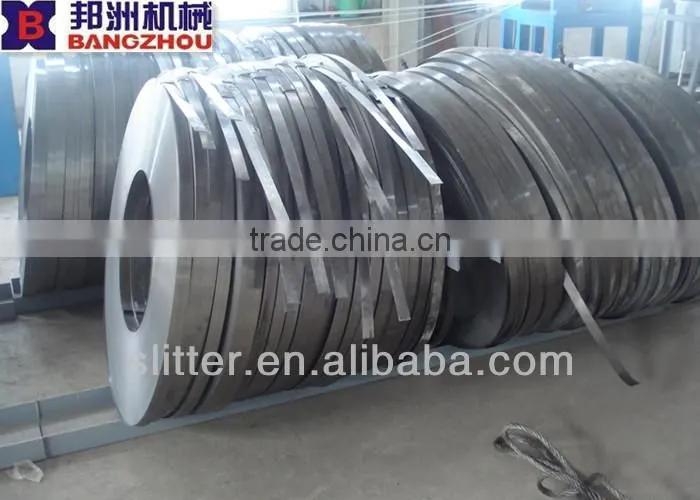

3. It can slit into min 10mm width strips.
4. Economic and easy to operate.
1. Package: Machine devices will be Naked for CR slitting and all the roller parts will be antirust treatment to protect the rollers. All the spare parts will be collected into the homemade steel boxes
2. Delivery: 60 days
3. Container: 1x40 GP

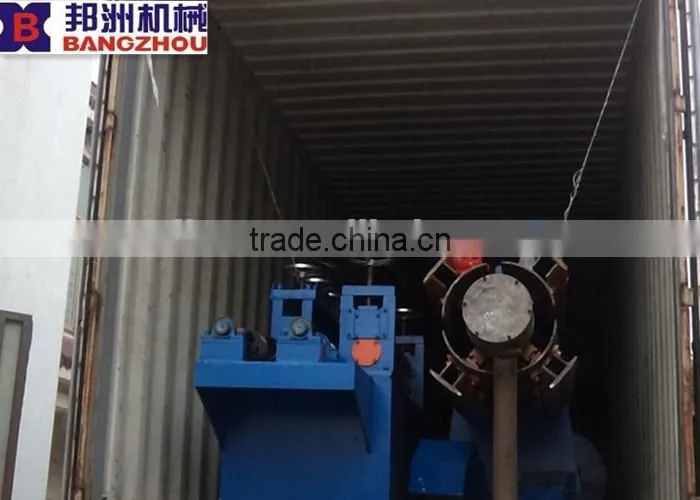

4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material.
Some of Fair pictures
With our best service and machines' high quality,we have gained a great reputation in the field and our products are exported to many countries and regions, such as Southeast Asia, Europe, America and Africa.
We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Welcome to Visit our company.
