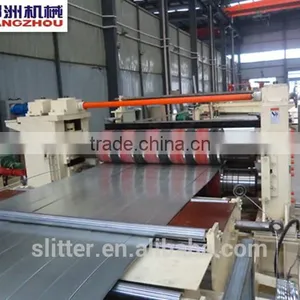

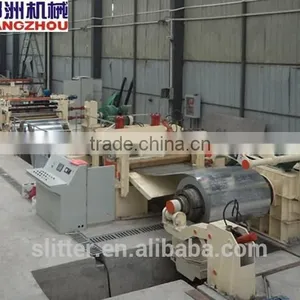

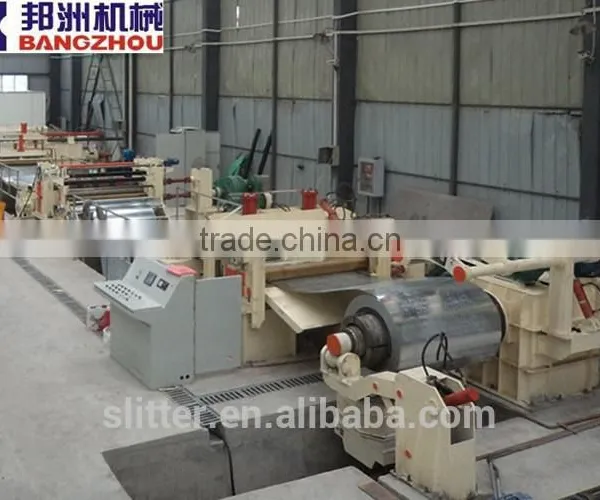

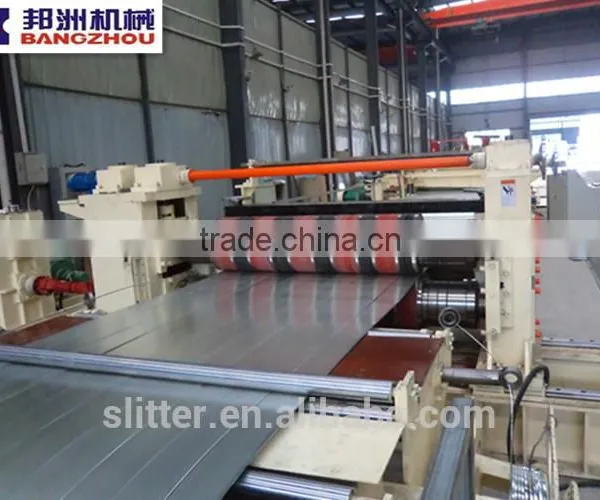

1x1600 Auto hydraulic sitting winding machine for sale
Ⅰ. Technical parameters
1. application: Carbon steel and galvanized steel
2. coil weight :10T
3. Thickness: 0.5-1mm
4. width of coil material: 1600mm
5. coil I.D: 480-510mm
6. coil O.D: 1800mm
7. line speed :0-150m/min(0.5-1mm)
8. the diameter of slitting blade shaft: 200
9. slitting blade: φ200Xφ340X20
10. material of slitting blade: 6CrW2Si
11. the hardness of slitting blade: HRC58°-60°
12. recoiler I.D of scrap winder: φ420
13. recoiler I.D: φ508
14. tolerance of width error: ≤±0.05mm/2M
other parameters: power:380V/60Hz/3Ph
area of the whole machine:30m(L)x6m(W)
operator needed: 1 technician and 2 general workers
weight of the whole machine: 40T
Ⅱ. Composed devices
- 1. Hydraulic entry coil car
- 2. Hydraulic de-coiler
- 3. Hydraulic press and guide and pinch device
- 4. Hydraulic head-cutting machine
- 5. Looper I
- 6. Slitting machine
- 7. Scrap winder
- 8. Looper II
- 9. Tension stand
- 10. Recoiler
- 11. Hydraulic exit coil car
- 12. Electric control system
- 13. Hydraulic system
Characteristics:
1. Automatic procedure which is very easy to operate
2. High speed can make the high output amount to maximize the slitting machine's function and value.
3. Stable with the DC motors to make the whole line speed stable.
1. Package: Machine devices will be Naked and all the roller parts will be antirust treatment to
protect the rollers. All the spare parts will be collected into the homemade steel boxes
2. Delivery: 100 days
3. Container: 1x40OT and 2x40GP
4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.
Wuxi Bangzhou Machinery Manufacturing Co., Ltd. is located in Changjing Industrial Park, Jiangyin, Wuxi with beautiful environment and very convenient transportation. We are one of the most professional machinery manufacturers in China, integrating design, production, sale and after-sales services.
Our main products are Steel coil slitting lines, cut to length lines, Straightening machines, Automatic crosscut units and Hydraulic shearing machines. Our products are supplied to cold rolling and pipe welding factories and our machine can be also applied to other industril field which connect to the metal material. We welcome all friends to visit us. We are sincerely looking forward to receive your guidance and business cooperation!
Our Advantages
1.we can do the designs according to the customers'requirement
2. We can give you the best suggestions to meet your machine requirements
3.we can offer you the high quality & reasionalble price
4.we can offer your a good after-sell service
5.we have strong professinal design and production team
6. promptly delivery. small order is welcome.
Welcome to our company like them
Our company is a manufacturer, welcome to our factory!!!
