Economical prepainted steel shearing uncoiling machine
Ⅰ.Technical parameters |
Parameters |
Application : CRS, HRS |
Tensile strength: δb≤450Mpa,δS≤260Mpa |
Coil thickness: 0.5-3mm |
Width of coil material : 500-1250(Max) |
Coil I.D : φ480-510mm |
Coil O.D: φ1600mm(Max) |
coil weight : 10T(Max) |
Diameter of slitting shaft:φ200, material: 40Cr |
Slitting blade: φ200Xφ340X20 |
material of slitting blade: 6CrW2Si |
Maximum slitting slices: 25 pieces |
Finished parameters: |
tolerance of width error: ≤±0.05mm |
Other parameters |
Power : 380V/50Hz/3Ph |
line speed: 0-30m/min |
Power capacity: 150 Kw |
Production line area: 18m(L)X 7 m(W) |
Operations: 1 engineer and 2 common workers |
Direcion: from right to left (Face to the production line) |
Color of the machine: green |
II. Composed devices |
Hydraulic entry coil_ de-coiler integration. machine |
Press and pinch device |
Hydraulic cutting machine |
Looper I |
Side guide device |
Slitting machine |
Scrap winder |
Looper II |
Tension stand |
Hydraulic unload- Recoiler integration. machine |
Electric control system |
Hydraulic system |
III. Brief introduction |

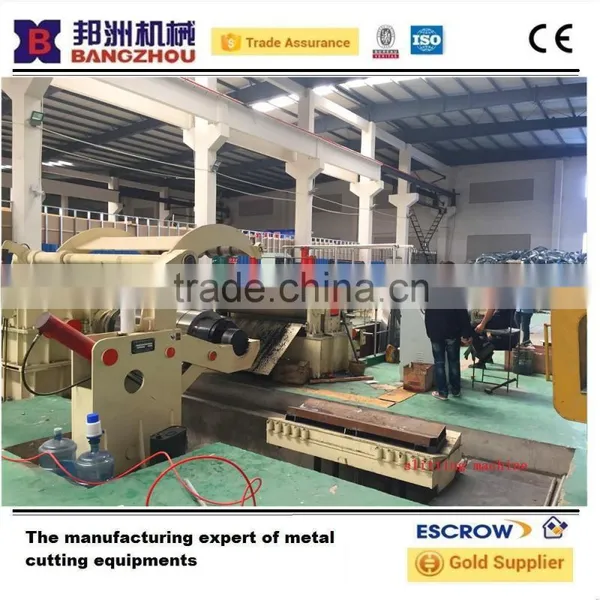

ZJX-(0.5-3)X1250mm steel coil slitting line is used for slitting the carbon steel coils to prepare for the next process. |
1. Hydraulic entry coil-de-coiler integration. machine |
support the steel coil and de-coiling ,its max capacity is 10 T. |
It can expand and shrink with hydraulic oil cylinder and fit with the inner hole of the steel coils and is equipped with supporting stand. |
It is adopted without the motor and is designed with the brake system which will easy to control the uncoiling speed. |
the coil car makes the inner holes of steel coils aim at the de-coiler center. The hydraulic expand and shrink de-coiler is driven by the pushing of center shaft to tight the inner hole of steel coil. Using the latest ground track design, no need to pit, easy feeding |
3. Press and pinch device |
It can improve the steel plate shape very efficient to feed the steel right into the next progress |
This is composed of bottom-stand(frame), hydraulic pressing and guiding arm, coil opener, hydraulic shovel head device, etc. |
Two pinch rollers device is to feed the opening sheets direct to the next station. |
Through hoisting height ,to get rid of the pit limit |
4. Hydraulic head-cutting machine |
It is used to cut the steel coil head to make it easy into next machine |
It can be also used to cut the big coils into small coils |
5.Looper Ⅰ |
It is used to control the speed buffer between decoiler and slitting machines |
6. Side guide device |
It uses the vertical rollers of both sides to guide the plates into the slitting machine correctly. |
The guide rollers are adjusted by the rods on both sides. The width range is 500-1250mm. |
7.Slitting machine |
Power part: This is composed of power-stand, decelerator,30KW frequency conversion motor, gear distributing case, coupler, spindle, connecting-cover, etc. |
Main section is made up of base, fixed brackets, large slide block, 2 blade pivot(Φ200mm),movable brackets, slide block, the adjustment device of front and back of the brackets and the lifting device of blade pivot, supporting blades, isolating cover and rubber ring, etc. |
It change the blades through moving out the bracket electrically and is very convenient and fast |
The motor provide the power to lift up and down of the knife pivot |
8.scrap winder |
It consists of base, the shaft and plate of scrap material, friction wheel, supporting wheel chain, chain, 350 decelerator and 5.5KW motor. |
Both sides has one winding system to wind the waste material on both sides |
9.Looper Ⅱ |
It uses the 2 groups of magic eyes to control the speed buffer between recoiler and slitting machines |
Magic eye is controlled by PLC. |
The transmit bridge is lifted up and down by hydraulic. |
10. Tension stand |
It is used to pre-dividing the finished coils and adjust the tension for recoiler to ensure the rewinding quality |
At the |
11. Hydraulic unload- Recoiler integration. machine |
It adopts the hydraulic expand and shrink to tight the coils inner diameter. |
Designed with hydraulic clip mouth and clip the strips heads. to ensure the recoiling quality |
It is designed with the hydraulic press arm equipped with the spacers to guarantee the even rewinding quality. |
consist of base, bearing frame, recoiler shaft, the expansion device of hydraulic recoiling, the expanded recoiling plate, movable arm bearing, 45KW frequency conversion control motor. |
Using the latest ground track design, no need to pit ,easy unloading. |
Hydraulic cylinder drives it lift up and down and is equipped with 4 guide pillars |
Motor drives the leveling movement |
Capacity: 10T(Max) |
13.Electric control system |
Center control and make the speed in-phrase |
14.Hydraulic system |
Hydraulic station, oil pipes, joints and valves .etc |
Ensure all the hydraulic parts function |
Hydraulic system working pressure6.3-16MP |
1:sea worthy packing for economical steel rolled coil slitting machine with out pit
2. Delivery: 100 days
3. Container: 1x40OT and 2x40GP
4. Shipping: All the parts in the containers will be strengthened with the container to prevent
the deveices from being slipped
*****Wuxi Bangzhou Machinery Manufacturing Co.,Ltd can design the machine as per your specific requirements.
*****We can help you to deliver the machiens to your country.
***** We can make the engineers available to install the machines for you and also teach your workers how to operate the machine and fix the problems with the machine.
