Help CenterAotumatic 21 Roller Plate Straightening Machine
Related Products
-
Metal Coil Straightening/leveler MachineUS$ 20,000 - 80,000MOQ: 1 Set -
JP-1~2 X 1250 Leveller/straightener of Cold Rolling Metal SheetNegotiableMOQ: 1 Set
-
Automatic Roll Straightening Machine for Steel CoilsNegotiableMOQ: 1 Set
-
16mm Carbon Steel Straightening Machine, StraightenerUS$ 30,000 - 50,000MOQ: 1 Set
-
Metal Plate Leveling Machine /flattener JP-2~8 X 1000NegotiableMOQ: 1 Set
Specifications
Thickness of sheet plate:0.3-3 mmWidth of coiled plate:500-1800mm
Precision of leveling:0.2mm/2000mm
Weight of machine :15MT
If you intend to buy a straightening for the coil plate or metal sheet , just tell us the parameters as below , we can provide the straightening machine according to your requirements !
Application
1.carbon steel plate, galvanized sheet, color plate, stainless steel,
Hot rolled ,cold rolled etc. b≤450Mpa;S ≤260Mpa,
2. Thickness of sheet plate: 0.3-4 mm;
3. Width of coiled plate: 900-1800 mm;
4. Precision of leveling: length tolerance: ±0.2mm/2000mm;
diagonal tolerance: ±0.2mm/2000mm;
unevenness is according to GB stipulations
5. Levelling speed: 0-20m/min ;
6. The roller diameter: 65 mm ; 19+2 pcs.
7. The roller form :60mm
8. Material of levelling roll : SUJ Bearing steel ;
9. Hardness of blade: HRC58°—60°;
10. Motor power: 45 Kw
11. Weight of machine : 15MT
Features of Levelling Machine
To graduate from professional uneven plates in the leveling and guide steel belt into the right place after working procedure.
Support roller`s function : Make leveling roll force equilibrium, and can be reduced to the wear and tear from the roller .
Roller processing flow :
Raw materials-conditioning quality-rough machining-hardening -precision machined.
Power part: This is composed of power stand, decelerator, direct current speed adjustable motor: 45KW, electric cabinet, motor wheel, coupler, power distributing case, universal cross joint, 19+2 groups of spindle and connect cover, etc.

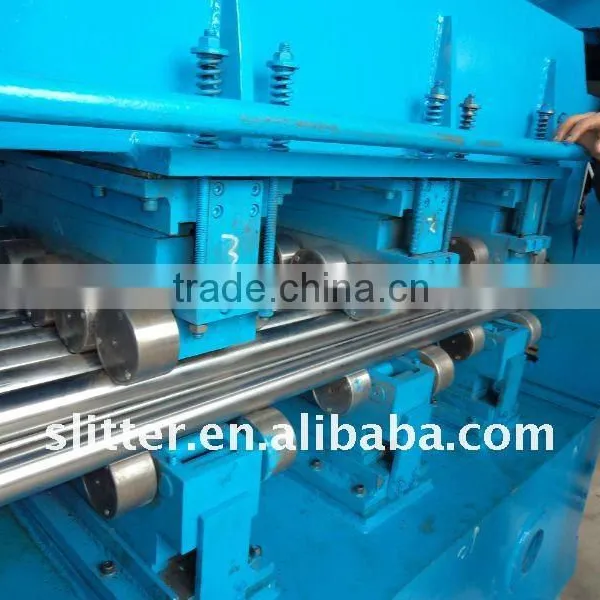

Host machine: This is composed of bottomstand, frame, axle stand, sliding axle stand, 19pcs of leveling roller (roller diameterφ150mm),upper pressing frame, up and down supporting wheel stand, supporting wheel, mechanically lifting &pressing device, accompany of two motors: 2.2KW
