Specifications
1. briefness and operated conveniently2.very cost-effective
3.applied to matel coil straightenging and cut to length line

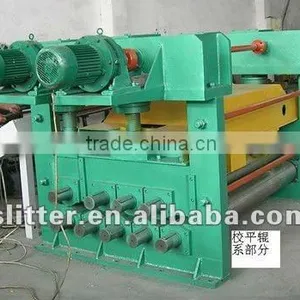

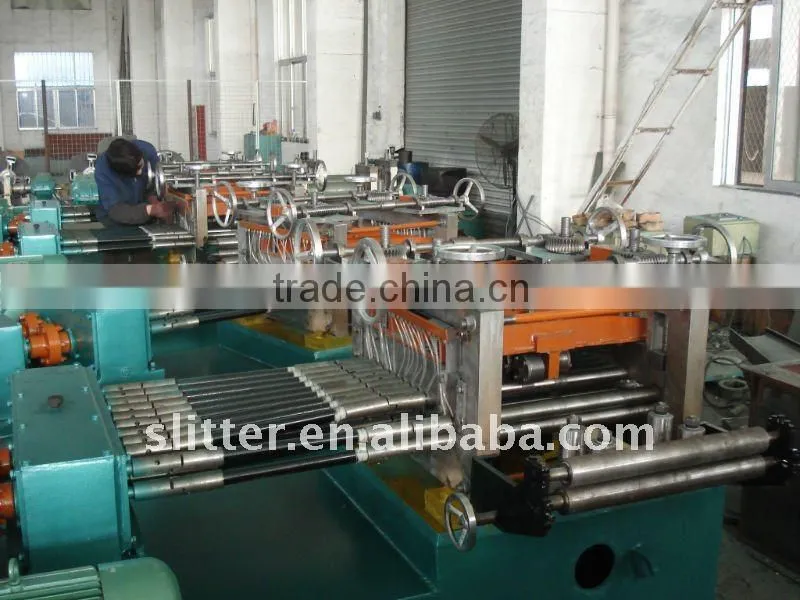

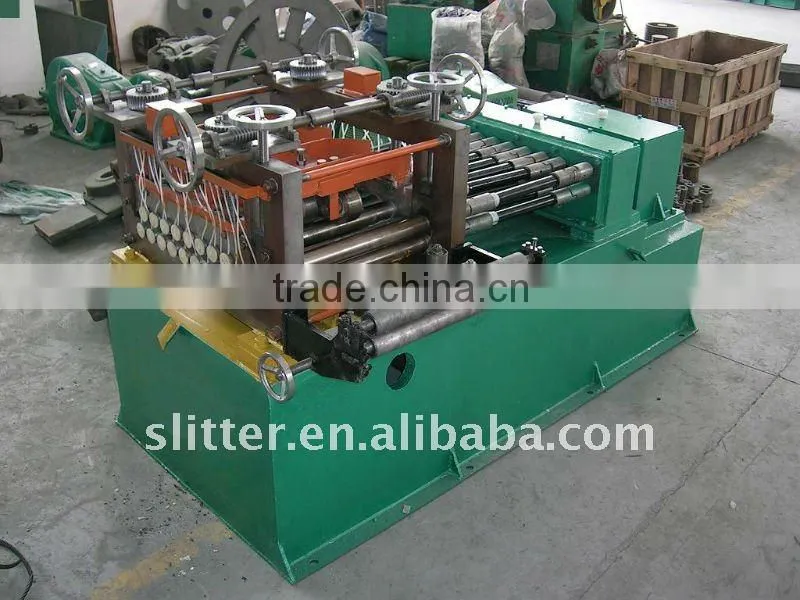

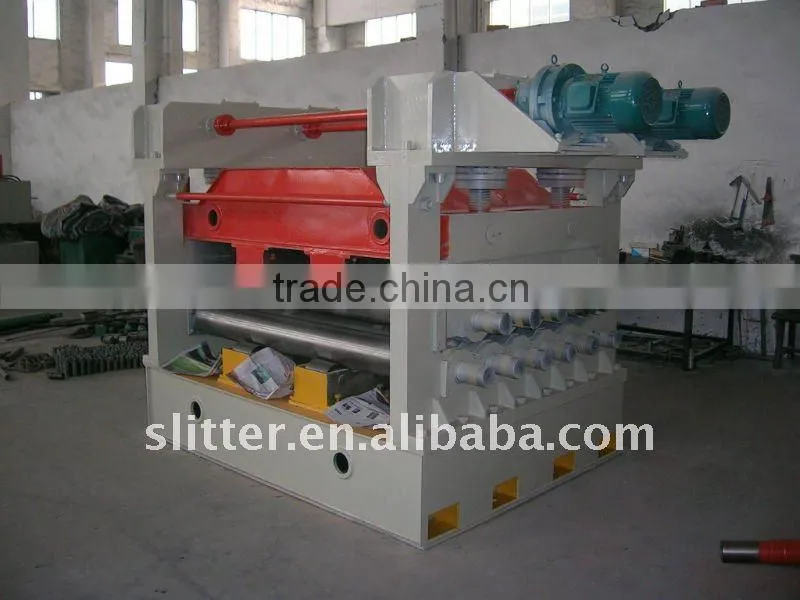

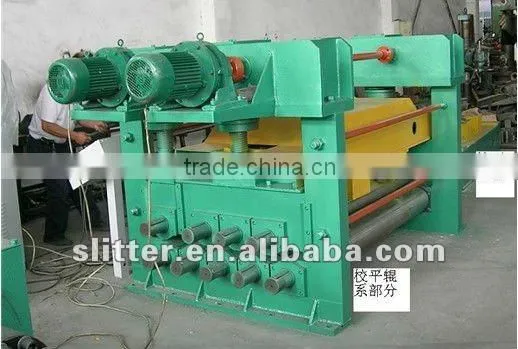

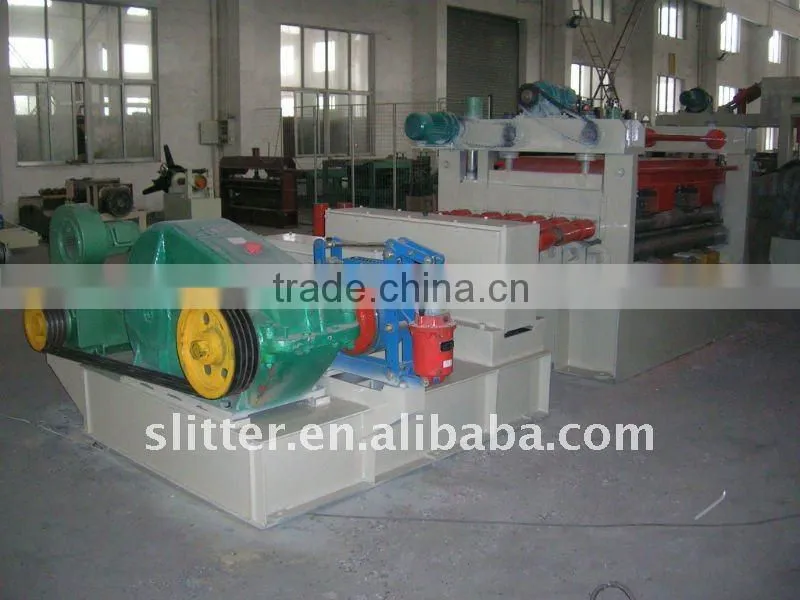

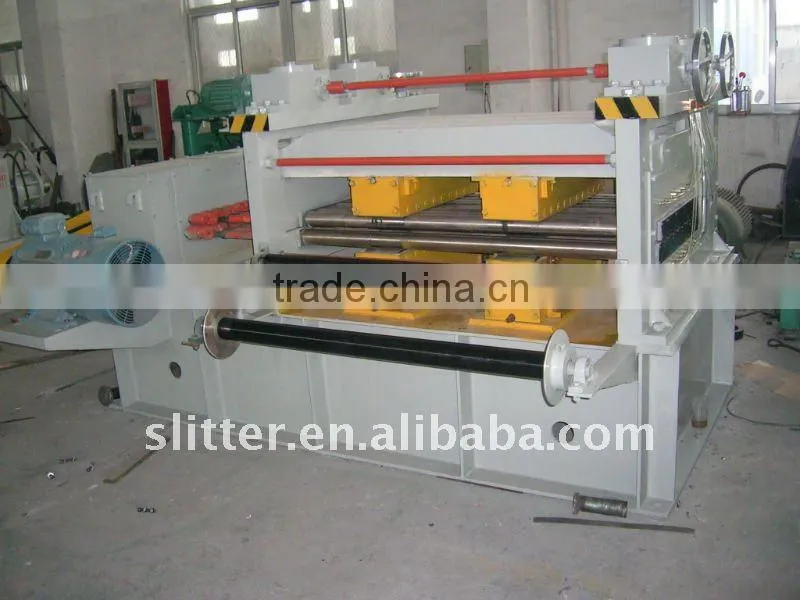

Metal Plate Straightening Line And Cutting To Length Line Machine
MODEL:JPX-0.8
Payment and shipping ( negotiable). T/T ,L/C /West Union /Cash
The minimum order quantity (standard configuration). 1set/sets
Packaging & transportation terms. seaworthy /knockdown
Delivery time . we do arrange the shippment upon embracing your remittance
Production capacity. 15set/sets per month
a. Material Specification:
Coil Property: Stainless steel
Strength: stainless steel numbers 304, 430
Maximum Material Thickness: 0.4~2.5 mm
Maximum Material Width: 1300 mm
Coil Inside Dia.: φ 600 mm
Coil Outside Dia.: φ900 mm
Coil Weight: 3500 kgs
b. Shearing Capacity:
Length Setting: 400~12000 mm
Max. Feed Speed: 20 M/min
c. Electrical system:
Power Supply: 380V/415V/50HZ/3PH
Control Supply: AC 110V 50Hz × 1 Phase
d. Hydraulic System: Low Pressure 5MPa ; High Pressure 7 MPa
e. Pneumatic System: Normal Pressure 5 MPa; Volume 90L/min
can made in accordance with the need of customers !
The latest price: please contact us !
