Silicon Steel Coil Rewinding Machine Line JQ-0.5-2x1300

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Model Number:

Q2X1300

Contact Supplier Request Quote Chat Now

Wuxi Bangzhou Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ShangHai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name BX

Model Number Q2X1300

Rated Power 30kw

Weight 5T

Specifications

il width :500-1300 mm adjustable;
il thickness :0.5-2 mm adjustable;
3.uncoiling --slitting --edge cutting --recoiling

Technical parameter coil rewinding machine line JQ-0.5-2x1300
Material of processible coiled plate	Apply for carbon steel plate, galvanized sheet, color plate.δb≤450Mpa; δs ≤260Mpa
Thickness of coiled plate	0.5-2mm
Width of coiled plate	200-1300mm
Precision of slitting	width tolerance: ±0.05mm
Slitting speed	0-30m/min
Loading capacity of uncoiler	10-30T
Coil I.D	450mm
Coil E.D	1800mm
Recoiler I.D	508mm
Knife pivot diameter of slitting	150mm; material 40Cr
Slitting blade	150×250×15 10pcs
Material of slitting blade	9 SiCr
Hardness of blade	HRC58°—60°
Power:	AC 380V three-phase electricity 50Hz

Product Details
Place of Origin	Jiangsu, China (Mainland)
Brand Name	BX
Certificate	ISO9001
Application	decoiling,leveling, cutting,stacking
Price	Negotiable Trial Order
Minimum Order Quantity	1 Set/Sets Trial Order
Port	shanghai
Packaging Details	plastic wrapped with the spare parts.
Delivery Time	45-60 days after receiving the advace payment.
Payment Terms	L/C,T/T
Supply Ability	5 Set/Sets per Month
Products warranty:	12 month and we will provide the technical support for the whole life of the equipment.


Composed Devices
It consists of power part,mainframe part,electric control part.
1. Power part:	It consists of power base stage,500 reducer,22kw motor,coupling,power distribution case,21 universal joints etc.

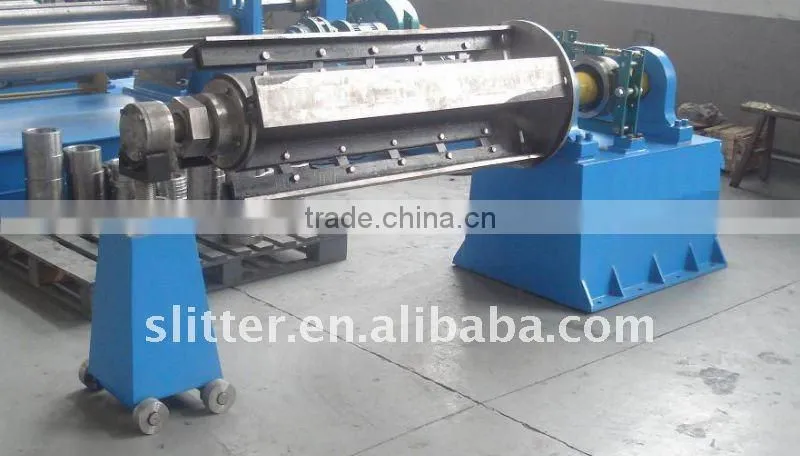

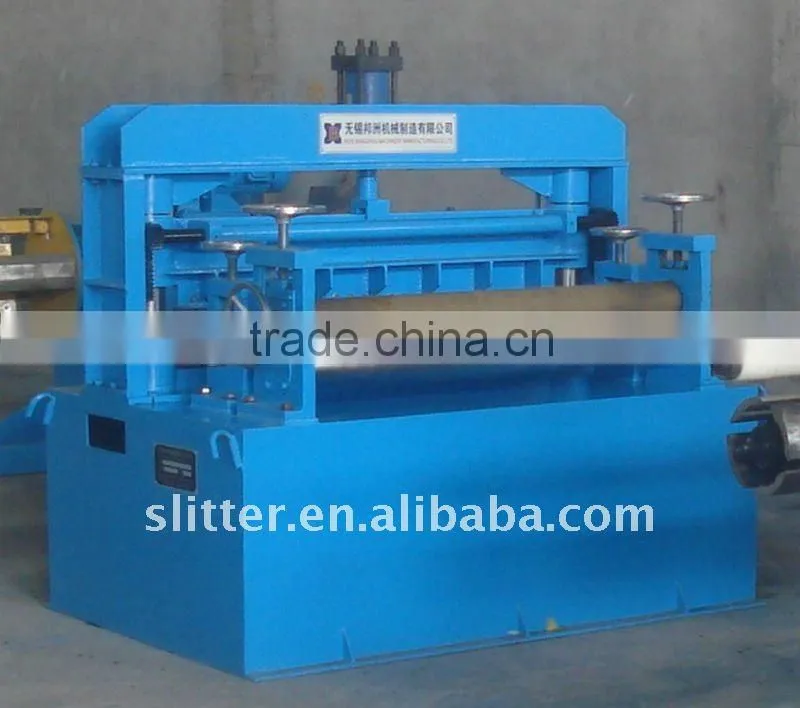

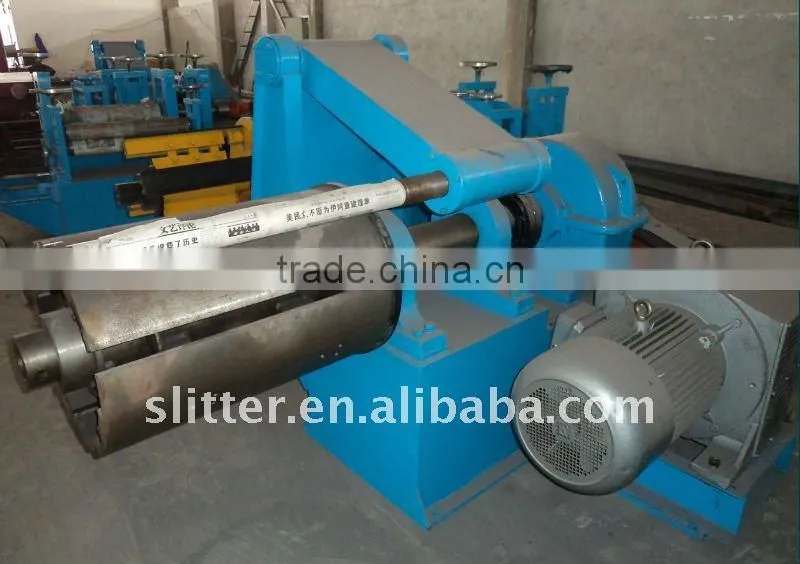

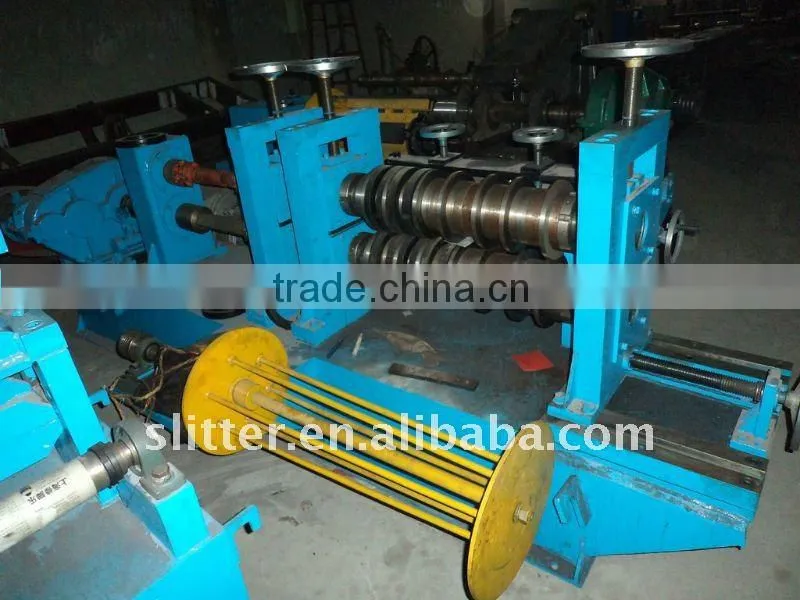

2. Mainframe part:	It consists of Uncoiler car /Uncoiler/(a) Hydraulic pressing & guiding device/(b) Hydraulic shovel head device/(c) Hydraulic pinch and preliminary flattening machine/(d) Power device for pinch/Straightening machine/cut to length/Convey platform/Slitting machine/Waste selvage device /Hydraulic Rolling-orbit table/Tension machine/Recoiler/Hydraulic unloading car
3. Electric control part:	Rated voltage: AC 380V 50Hz, Control voltage: AC 380V 50Hz
4.One operation cabinet	The motor could perform reversing operation,the adjusting motor cannot only be operated alone,but also can hoist and press down simultaneously,the operation cabinet set Emergency Button.
What’s more, equipment can be specially designed and manufactured according to the customer’s requirements. We will offer you with our highest quality products and best service.
