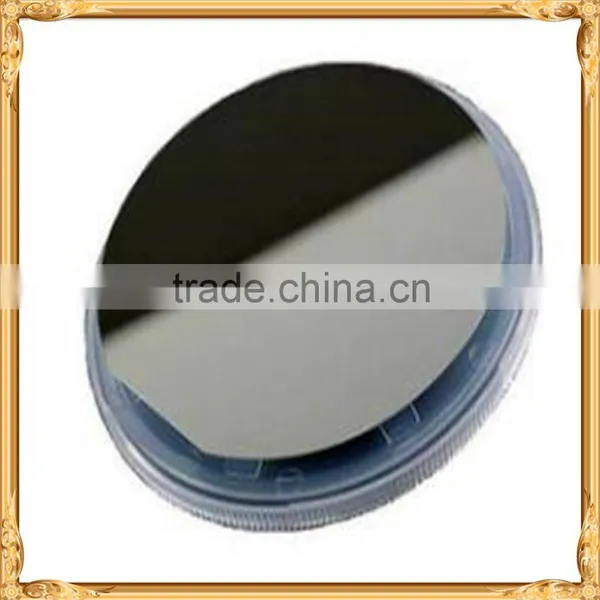

Help CenterGermanium Wafer Monocrystalline
Related Products
-
Germanium Diodes, Germanium IngotUS$ 12.01 - 15.01MOQ: 1 Piece -
Germanium Wafer PolycrystallineUS$ 12.01 - 15.01MOQ: 1 Piece
-
Germanium Infrared Lens, Germanium DioxideUS$ 12.01 - 15.01MOQ: 1 Piece
-
Germanium Co2 Fous LensUS$ 12.01 - 15.01MOQ: 1 Piece
-
Germanium IR Window Used in Laser MachnineUS$ 12.01 - 15.01MOQ: 1 Piece
Germanium Optics
Germanium is a versatile infrared material commonly used in imaging systems and instruments in the 2 to 12 microns spectral region. It is used as a substrate for lenses, windows, and output couplers for low-power CW as well as pulsed TEA, CO2 lasers. The lowest absorbing Ge optics are limited to a throughput power range of 50 to 100 watts before thermal lensing or thermal runaway. These problems are minimized by properly heatsinking the optic and carefully cleaning contaminated optical surfaces.
Ge is non-hygroscopic and non-toxic, has good thermal conductivity, excellent surface hardness, and good strength. II-VI carefully monitors the 10.6µm Ge absorptivity for use in laser applications to assure that thermal runaway and fracture do not occur.
One ideal laser application for Ge is a > 99% reflecting back mirror for a CO2 laser with built-in power meters. A high-reflecting, low-absorption dielectric coating is on one side and an AR coating on the other. The laser operates on the feedback from the high-reflecting side, but enough power leaks through for monitoring by a power meter. ICC supplies these optics for a number of commercial laser applications.
Parameter
| Diameter Tolerance (mm) | +0.0/-0.1 |
| Clear Aperture (%) | 90 |
| Thickness Tolerance (mm) | ±0.1 |
| Surface Quality | 60-40 |
| Surface Flatness | λ/10 @ 10.6μm |
| Parallelism (arcmin) | <1 |
| Density (g/cm3) | 5.33 |
| Knoop Hardness (kg/mm2) | 780 |
| Substrate | Germanium (Ge) |
| Coating | Uncoated |
| Type | Protective Window |
| Wavelength Range (μm) | 2 - 14 |
| Wavelength Range (nm) | 2000 - 14000 |
Materialial
Germanium monocrystal / polycrystal
The High quality products are guarantee by Advanced testing equipment and methods
Qinhuangdao Intrinsic Crystal Technology Co., Ltd has the advanced processing equipment and complete production system,which gurantees that we can effectively control every aspect of the product process, as well as product quality. It also has the advanatge to reducing losses and costs.
Packaging
Pay attention to every details of the package. According to the products, we choose the best suitable packaging.
Shipping
Many shipping methods to meet customer's demand.
