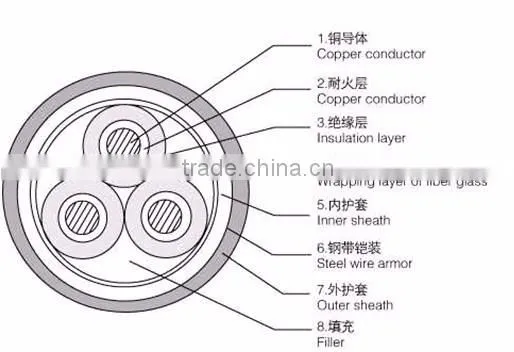

2016 35mm2 electric cable 35mm2 copper electrical power cable
Product Description
Characteristics for electrical cable :
1)Rated voltage U0/U : 0.6/1kV
2)Maximum conductor temperature is 90°C
3)Short circuit temperature (lasting for less than 5s):less than 250 °C
4)Ambient installation temperature shall be not lower than 0°C; minimum bending radius: for single-core cable,20(D+d)(mm), for multi-core cable, 15(D+d)(mm)(D=cable outside diameter, d= nominal diameter of main conductor).
5) Cable can be laid aerially, in trough, or underground
Product range of electrical cable
Type
Cu/XLPE/SWA/PVC, Al/XLPE/SWA/PVC
Voltage
0.6/1 kV
Cores
1C, 2C, 3C, 4C, 5C, 3C+1E,4C+1E, 3C+2E
Range of Nominal cross section
1.5 mm2 - 630 mm2
Application
XLPE insulated electrical cable applies to electrical power transmission and distribution lines with AC rated voltage U0/U up to and including 0.6/1 kV. For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces, and certain force
Standard
IEC 60502, BS 7870, GB/T12706
