Home > Electrical & Electronics > Passive Components > Capacitor > CH85 CH86 HV Capacitor Microwave Oven Capacitor High Voltage Industrial Microwaves Capacitor

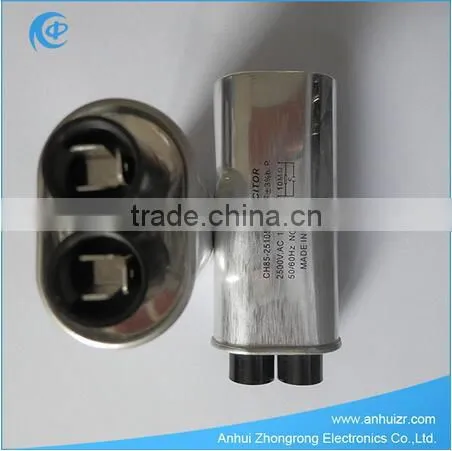

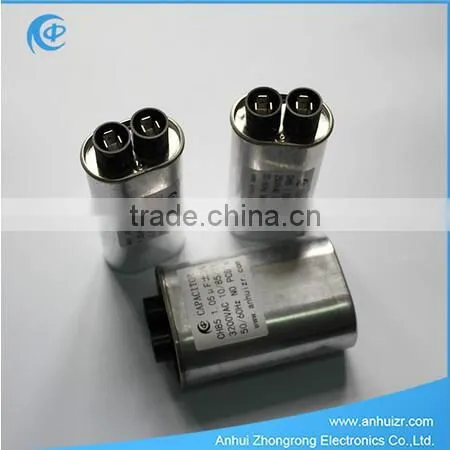

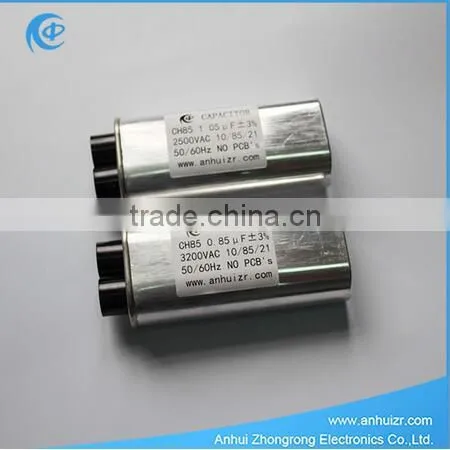

CH85 CH86 HV Capacitor Microwave Oven Capacitor High Voltage Industrial Microwaves Capacitor
US$ 1.56 - 8.28
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Anhui, China
Brand Name:
Zhongrong
Model Number:
CH85/CH86
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Commercial Microwave Oven CapacitorUS$ 1.56 - 8.28MOQ: 1 Piece -
2500vac 1.05uf Capacitor 2100vac 1.05uf CapacitorUS$ 1.56 - 8.28MOQ: 1 Piece
-
Small Capacitance Home Use Microwave Oven Capacitor Ch85US$ 1.56 - 8.28MOQ: 1 Piece
-
Microwave Ovens CH85 CH86 HV Capacitor Microwave Oven CapacitorUS$ 1.56 - 8.28MOQ: 1 Piece
-
Industrial Microwave 1.05VF 2500V High Voltage CapacitorUS$ 1.56 - 8.28MOQ: 1 Piece
Place of Origin
Anhui, China
Brand Name
Zhongrong
Model Number
CH85/CH86
Application
RF / Microwave
Package Type
Surface Mount
Capacitance
0.40~1.30μF
Rated Voltage
1500V-3500V
Operating Temperature
40/70/21-40/85/21
Type
Other, Microwave Oven Capacitor
CH85 CH86 HV Capacitor Microwave Oven Capacitor High Voltage Industrial Microwaves Capacitor
Microwave oven capacitor Features:
The capacitor is applied in industry and Microwave Ovens etc. The construction is composite dielectric. The capacitor has advantage of good heat dissipation,high pressure value,small dimension,small dielectric loss,high capacity precision.And it can be work stably with high voltage for long time, it is safe and reliable.
Microwave oven capacitor Specifications:
| Reference standards | IEC61270-1 |
| Rated capacitance CR | Rated capacitance CR |
| Tolerance | ± 1%, ±3%, ±4% or fulfilled upon request |
| Rated voltage VR | 2000VAC,2100VAC,2300VAC,2500VAC,3000VAC |
| Rated frequency FR | 50/60Hz |
| Discharge resistor | 10MΩ ± 10% |
| T-T DC | 4.3Un / 10S |
| T-C | 6000VAC / 60S |
| Dissipation factor | tan δ ≤ 0.01 (50Hz) |
| Climate types | -10°C ~ +85°C |
HV Capacitor Products:

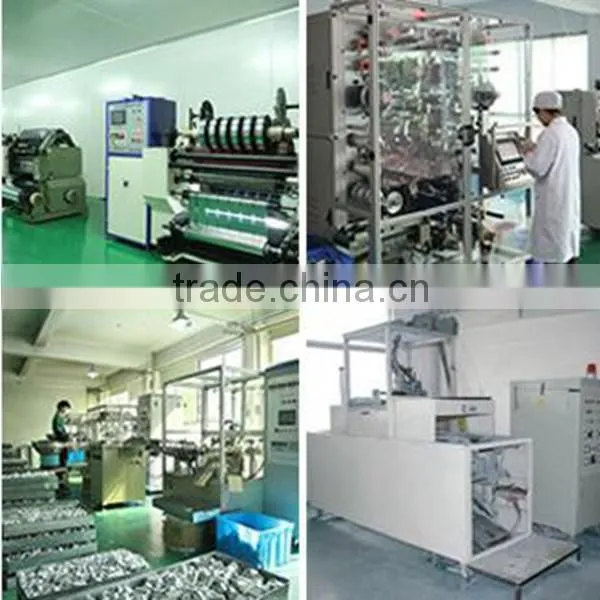

HV Capacitor Factory:
If any questions, please contact us with no hesitates!
Welcome to visit our website: http://
