WS-X45-SUP7-E

Name: WS-X45-SUP7-E
Brand: CISCO
SKU: 126712287

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Products Status:

Stock

Function:

LACP, QoS, SNMP, Stackable, VLAN Support

Certification:

Guangzhou Yuhe Electronic Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Function LACP, QoS, SNMP, Stackable, VLAN Support

Certification CE

Brand Name CISCO

Model Number WS-X45-SUP7-E

Place of Origin China

Specifications

1. WS-X45-SUP7-E
2. Original Packing
3. 1 year warranty
4. Big discount and fast delivery

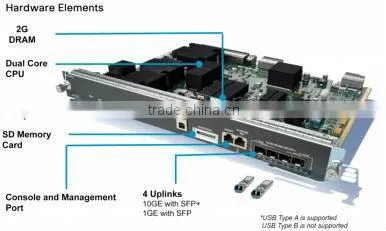

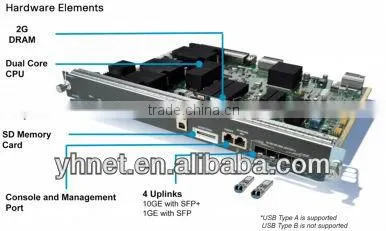

Cisco Catalyst 4500E Supervisor Engine 7-E

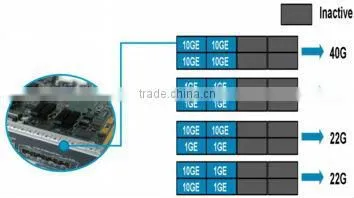

High-Availability and Uplink Options for Supervisor Engine 7-E

WS-X45-SUP7-E

Catalyst 4500 E-Series Supervisor, 848Gbps

Cisco Catalyst 4500E Supervisor Engine 7-E Performance and Scalability Features

Feature and Description	Supervisor Engine 7-E
Centralized switching capacity	848 Gbps
Per-slot switching capacity	48 Gbps
Throughput	• 250 Mpps for IPv4 • 125 Mpps for IPv6 • 250 Mpps for L2 Bridging
IPv4 routing entries	256,000
IPv6 routing entries	128,000
Multicast routes	16,000 (available with Cisco IOS XE 3.1.0 SG) 32,000 (Available with Cisco IOS XE 3.2.0 SG or later)
CPU	Dual core; 1.5 GHz
CPU queues	64
Synchronous dynamic RAM (SDRAM)	2 GB upgradable to 4 GB
Nonvolatile RAM (NVRAM)	1 GB
Security and QoS hardware entries	128,000
Cisco Network Admission Control (NAC) and Dynamic Host Configuration Protocol (DHCP) snooping entries	12,000
MAC addresses	55,000
Active VLANs	4,094
Address Resolution Protocol (ARP) entries	47,000
Spanning Tree Protocol instances	10,000
Switched virtual interfaces (SVIs)	4,094
Switched Port Analyzer (SPAN)	Maximum of 8 sessions: ingress or egress
