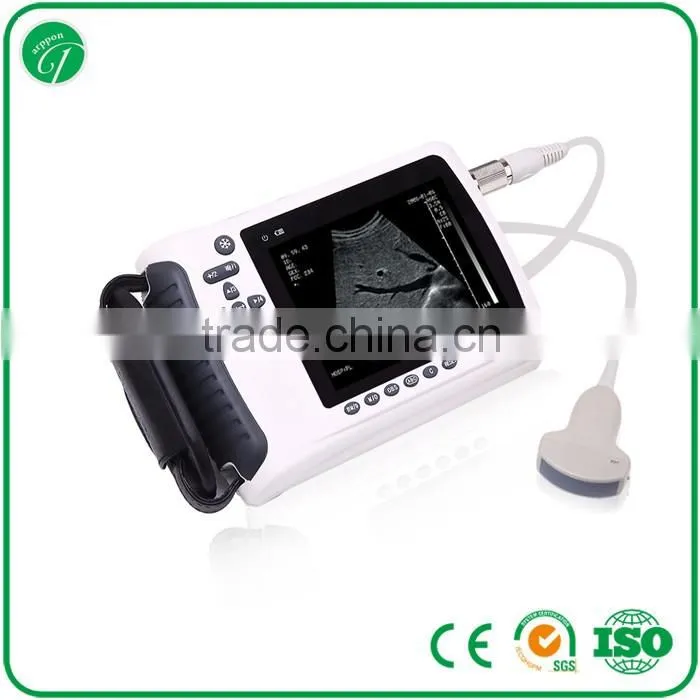

Full Digital B Mode Handheld Ultrasound Scanner with Li-ion battery
| Brief introduction: | This equipment is high resolution linear/convex ultrasound scanning diagnostic equipment. It adopts micro-computer control and digital scan converter (DSC), digital beam-forming (DBF), real time dynamic aperture (RDA), real time dynamic receiving apodization, real time Dynamic receiving focusing (DRF), Digital frequency Scan (DFS), frame correlation technologies to endue its image with clarity, stability and high resolution. |
||||

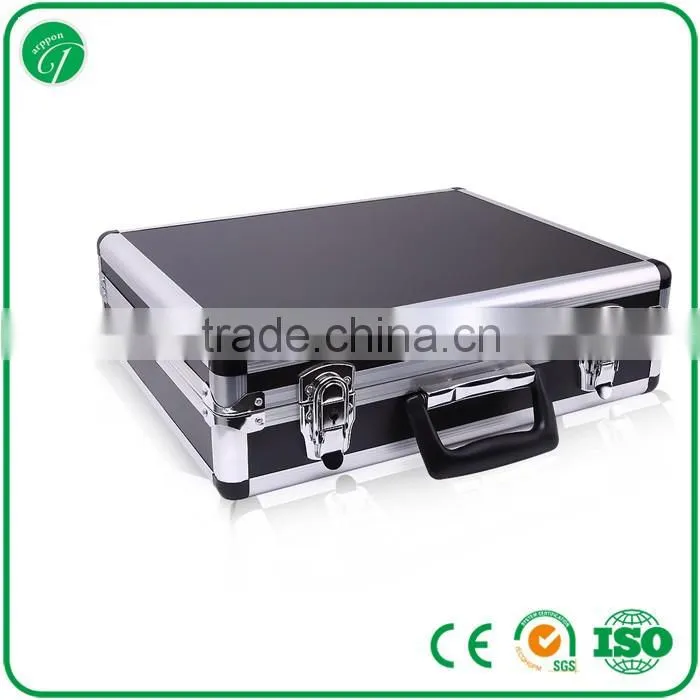

| Standard Configuration: | ·Main unit (containing a piece of Li-ion battery) ·3.5MHz Convex probe ·Manual/ technical instructions ·Main charger (AC-adapter) ·Wrap Bag ·Protective Box |
||||
| Fitting pieces: | Fitting pieces·5.0MHz micro-convex probe ·6.5MHz trans-virginal probe ·7.5MHz linear probe ·Video printer ·Li-ion battery ·Car charger ·Charging adaptation wire(containing power cord) |
||||
| Technical specification | Model | ||||
| Probe | 7.5Mhz linear probe; 6.5Mhz trans-virginal probe | 3.5Mhz convex probe | 5.0Mhz micro-convex probe | ||
| Detect Depth(mm) | ≥80 | ≥140 | ≥90 | ||
| Resolution/mm | Lateral | ≤1(depth≤60) | ≤3(depth≤80)≤5(80 | ≤3(depth≤60) | |
| Axial | ≤1(depth≤80) | ≤1(depth≤80) | ≤1(depth≤60) | ||
| Blind zone(mm) | ≤3 | ≤6 | ≤5 | ||
| Geometric position precision | Horizontal | ≤5 | ≤7.5 | ≤7.5 | |
| Vertical | ≤5 | ≤5 | ≤5 | ||
| Monitor size | 5 inch | ||||
| Display mode | B, B+B, B+M, M, 4B | ||||
| Image gray scale | 256 | ||||
| Image storage | 128 | ||||
| Cine loop | ≥400 frame | ||||
| Scan depth | 70mm-140mm | ||||
| Image flip | Up/down, left/right | ||||
| Focus position | Adjustable | ||||
| Posture mark | 16 | ||||
| Image process | Histogram, color encode, gama, image smooth | ||||
| Probe frequency | Adjustable ( 3 point each probe ) | ||||
| Frame correction | Adjustable | ||||
| Measurement | Distance, circumference, area, volume, heart rate, GA, EDD | ||||
| Notation | Date, time, name, sex, age, full screen words edit and etc. | ||||
| Output report | Measurement | ||||
| Output | USB2.0, VIDEO( PALD, NTSC) | ||||
| Battery continuous work | ≥3 hours | ||||
| Size | 230mm(L) x 120mm(W) x 38mm(H) | ||||
| Net weight | 700G | ||||
1. OEM/ODM service : Darppon offers OEM/ODM service for distributor to establish long term business relationship.
2. Warranty :Darppon offers 18 months free after-sale service for customers, and be responsible for life-time repair.
3. Technical support:Darppon offers professional engineers for customers on the technical support, and response within 12 hours
